Introduction to MIL-STD-810G Standard

MIL-STD-810G is a series of tests designed by the U.S. military to test its equipment to its limits under various conditions of intended use (environment) or transportation (shock). Tests vary according to the nature, size and weight of the test equipment.

The US military standard MIL-STD-810G does not refer to a certain test item. Among them, my country's military equipment environmental test standard GJB 150A is adapted from the US military standard MIL-STD-810G. Compared with other common electronic equipment environmental tests IEC60068 and GB/T2423, it is stricter.

The main users who meet the US military MIL-STD-810G standard are the military, police, telecommunications engineering, construction sites, outdoor measurement and other users who need to work outdoors. The working environment of these users is prone to collisions, rain, sand and dust, etc., resulting in Equipment damaged. In addition to being shockproof, waterproof, drop-resistant, and dustproof, it can also be installed in field vehicles for use. This standard has been widely used by military and police personnel in Europe, Japan, Singapore, Europe, Malaysia and other places.

MIL-STD-810G coverage

Part 2: Low Pressure (Altitude) Test 500.4Low Pressure (Altitude)

Part 3: High temperature test 501.4High Temperature

Part 4: Low temperature test 502.4Low Temperature

Part 5: Temperature Shock Test 503.4Temperature Shock

Part 7: Solar radiation test 505.4Solar Radiation (Sunshine)

Part 8: Rain test 506.4Rain

Part 9: Humidity test 507.4Humidity

Part 10: Mold Test 508.5 Fungus

Part 11: Salt spray test 509.4Salt Fog

Part 12: Sand and Dust Test 510.4Sand and Dust

Part 13: Explosive Atmosphere Test 511.4Explosive Atmosphere

Part 14: Immersion test 512.4Immersion

Part 15: Acceleration test 513.5Acceleration

Part 16: Vibration test 514.5Vibration

Part 17: Noise test 515.5Acoustic Noise

Part 18: Shock Test 516.5Shock

Part 20: Gunfire Vibration Test 519.5Gunfire Vibration

Part 21: Wind pressure test

Part 22: Icing/Freezing Rain Test 521.2Icing/Freezing Rain

Part 23: Tilt and roll test

Part 24: Temperature - Humidity - Vibration - High 520.2Temperature, Humidity, Vibration, and Altitude

Part 25: Vibration - Noise - Temperature Test 523.2 Vibro-Acoustic/Temperature

Part 26: Fluid Contamination Test 504 Contamination by Fluids

Part 27: Explosive Separation Shock Test 517 Pyroshock

Part 28: Acidic Atmosphere Test 518Acidic Atmosphere

Part 29: Ballistic Shock Test 522 Ballistic Shock

MIL-STD-810G salt spray corrosion test method

Q-lab Q-fog SSP salt spray Test Chamber, Q-Fog CCT salt spray Test Chamber, Q-Fog CRH salt spray Test Chamber can all be used for the salt spray corrosion test in MIL-STD-810G 509.5. The relevant test methods are as follows:

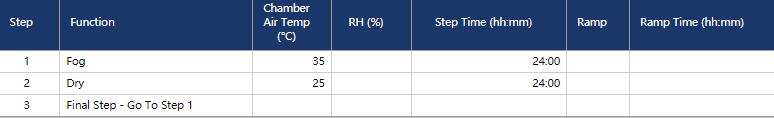

American standard MIL-STD-810G 509.5 salt spray corrosion test method
