Handheld Colorimeter into a desktop? Everyone must be very curious. There are many handheld Colorimeters and desktop computers. No matter in terms of size, structure or measurement method, the two are very different. It is difficult to imagine how to convert the instrument between these two different forms. But with this accessory - the liquid test fixture, it serves as a bridge between the handheld Colorimeter and the desktop Colorimeter, and can turn the handheld Colorimeter into a desktop in seconds, that is, it retains the handheld Colorimeter. It is flexible, and also increases the characteristics of stable measurement of the desktop.

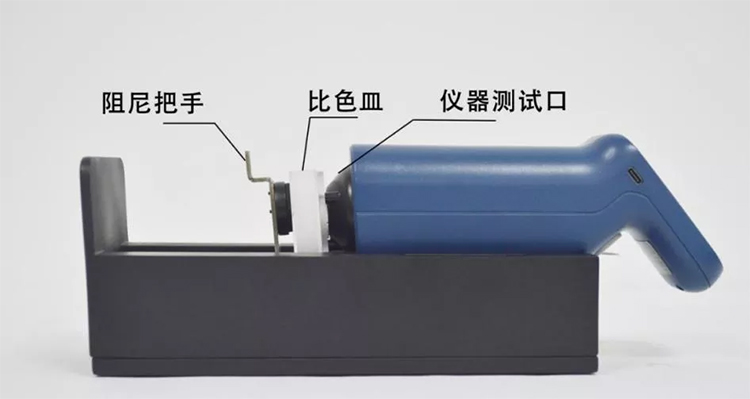

From the figure, this is a small desktop computer, with a damping handle on the left, a test sample in the middle, and an instrument test port on the right. The sample will be fixed and not loose. The position where the instrument is placed on the right side fits perfectly with the shape of the instrument, and the built-in magnet can hold the instrument firmly, so that the instrument is not afraid of falling or being damaged, ensuring the stability of the entire measuring device.

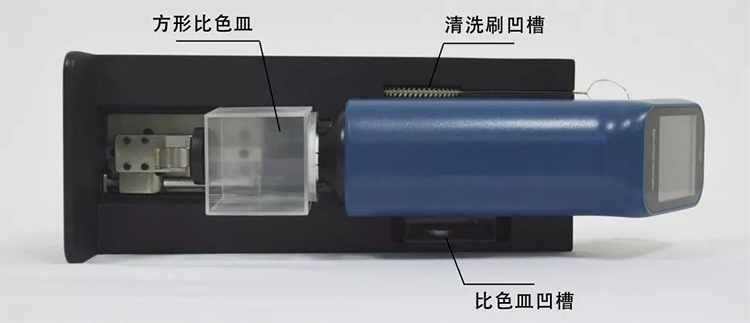

Let’s take a look at the structure of this accessory. The extended damping handle makes it easy to place even a large cuvette. The accessory also takes into account the storage and cleaning of the instrument, adding a place for cleaning brushes and cuvettes.

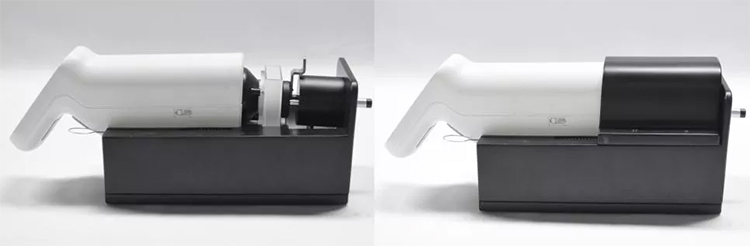

For the measurement of transparent liquids, our R&D personnel consider the influence of ambient light on the measurement data. The entire fixture accessory is also equipped with a light-shielding cover. When the light-shielding cover is covered, the entire measuring device is in a light-proof environment to ensure the measurement of transparent liquids. stability. However, the color of transparent substances measured by this method is only a relative value. If you want to obtain the absolute value of the color, you need to use our desktop Spectrophotometer series CS-820N/821N/826 series for measurement.

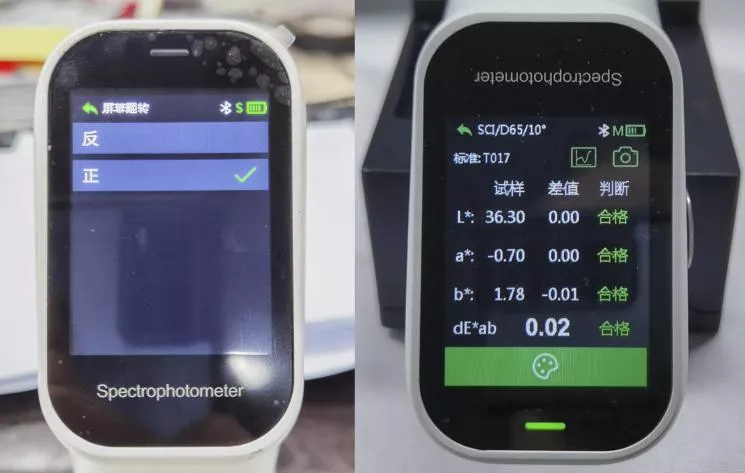

At the same time, for the convenience of operation, we also added the function of flipping the screen and clicking the screen interface to perform measurement, making the whole measurement process very fast and smooth.
Although the name of this accessory is a liquid test fixture, it can measure not only liquids, but also powders, small particles, plastics, printing and other products. Among them, powders, granules and other substances are suitable for measurement with large cuvettes.
The following portable Spectrophotometer series CS-410 series/CS-420 series/CS-500/CS-520 can be used with liquid test fixtures, and we look forward to unlocking more functions from you.
