Yuwen EC-777 Automotive Coating Thickness Gauge is an integrated dual-function Thickness Gauge with a built-in magnetic induction and eddy current effect integrated probe. It has a measurement range of 0~2000μm and a measurement accuracy of ±(2%+1μm). The resolution can reach up to 0.1μm.
This automotive coating Thickness Gauge has powerful data processing capabilities. After the test, it can display curve graphs, histograms, and trend graphs. In terms of use, this Thickness Gauge can non-destructively measure non-conductive coatings on metal surfaces, and iron The thickness of the non-ferromagnetic metal coating on the surface of magnetic metals (such as iron, nickel and cobalt, etc.).
The measurement results of Yuwen's EC-777 coating Thickness Gauge can be sent to the mobile APP in real time via Bluetooth. In addition, the instrument contains a large capacity memory. During the measurement process, the instrument automatically counts and records the measurement results. The recorded data can be transferred to the computer through the USB data cable at any time.

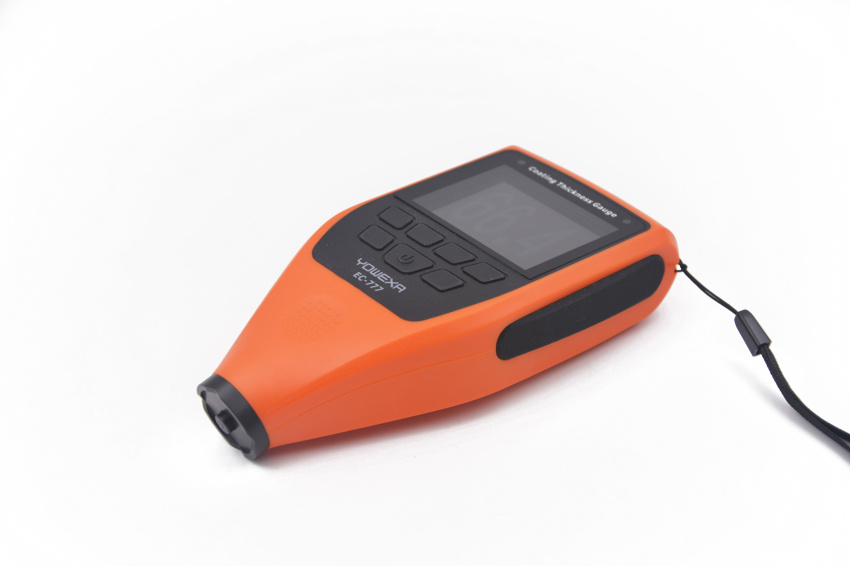

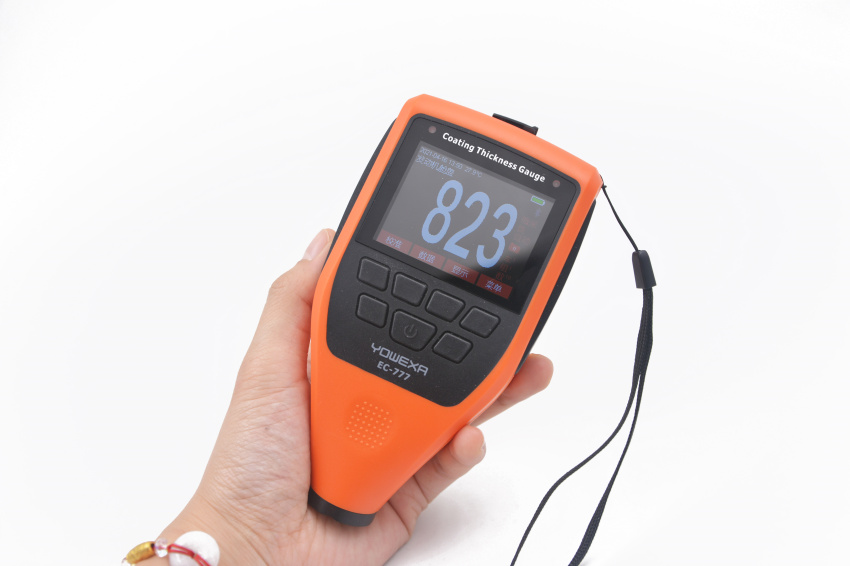

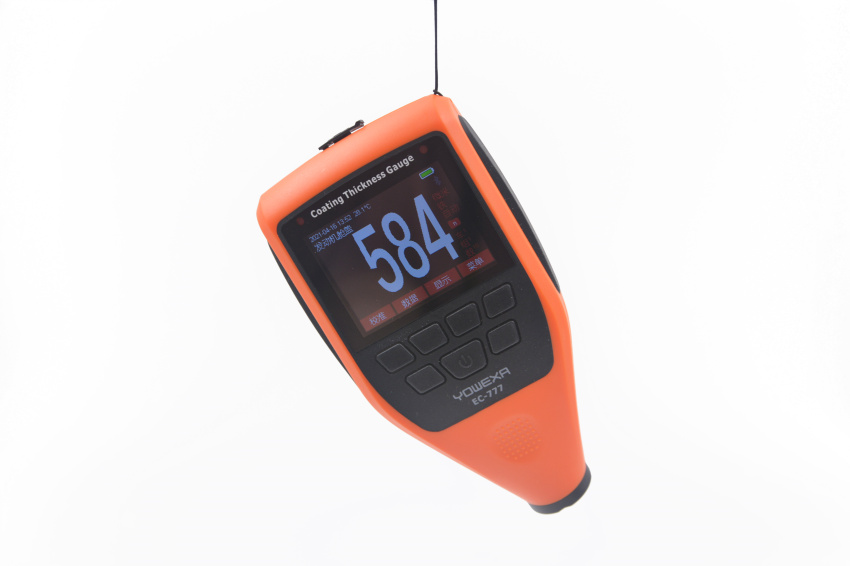

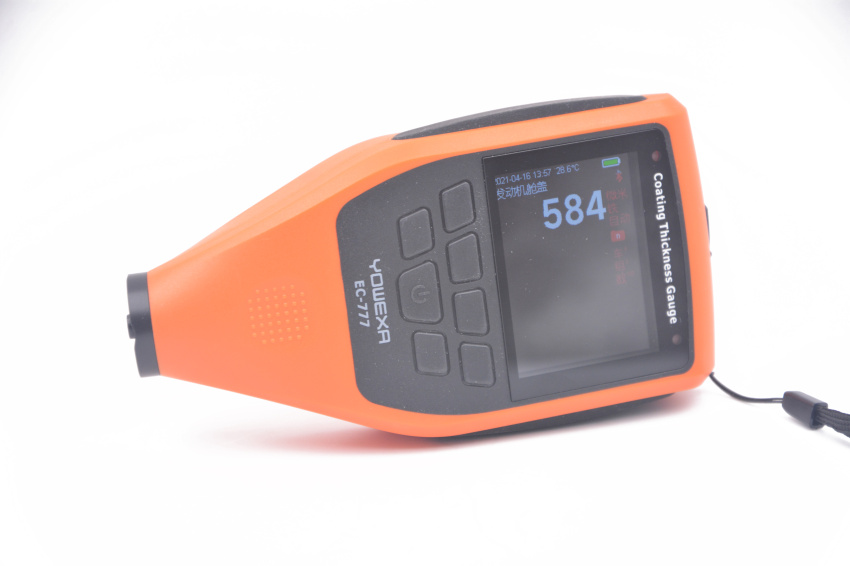

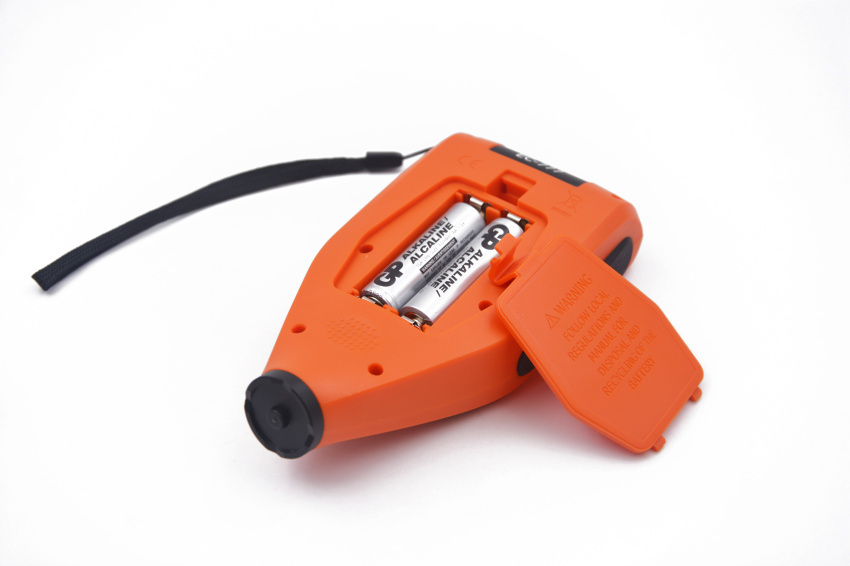

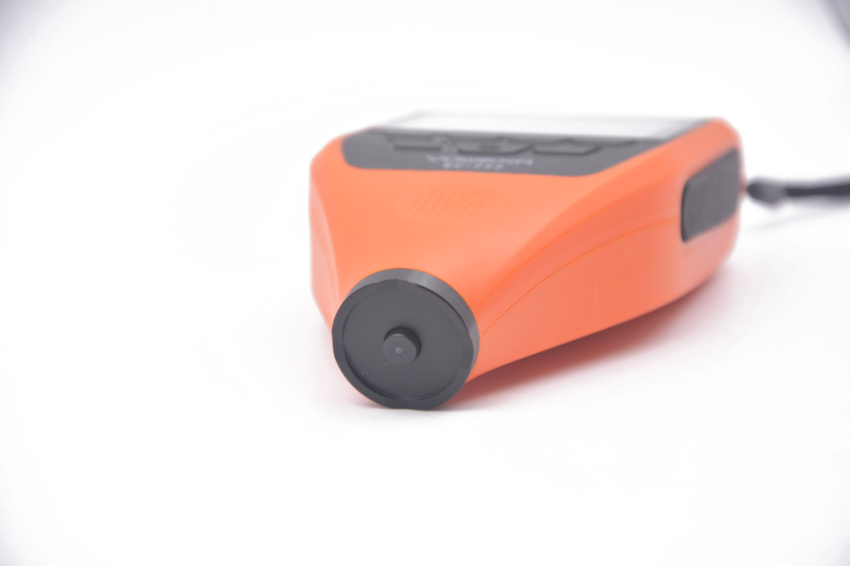

The following is a real shot of NBCHAO Mall, showing users a real coating Thickness Gauge from multiple dimensions such as appearance, details, and probes.
