Can the CR-10Puls Colorimeter test the color difference of metal plating? Doesn't cr-10plus have its own rechargeable battery? What is the measurement light source of CR-10 Plus small Colorimeter? Users often come to Xiaochao with questions. In this issue, NBCHAO also complains about this small color difference meter from Japan.
The technical parameters of the Colorimeter are like the measurements of a person, Xiaochao is too lazy to waste his words, and directly shows the table
| lighting method | 8/d |
| sensor | 6 silicon photosensitive elements |
| Measuring range | L*: 1~100 |
| Measuring light source | Pulsed xenon lamp |
| measure time | about 1s |
| Measuring caliber | About Φ8mm |
| repeatability | Standard deviation ΔE*ab within 0.1 (Condition: Measure the white calibration plate 30 times at 10-second intervals) |
| operating language | Chinese, English, Japanese |
| Data interface | USB2.0 |
| viewing angle | CIE 10° |
| Observe the light source | D65 |
| Color difference formula | Δ(L*a*b*), Δ(L*C*H*), ΔE*ab (CIE1976) |
| data storage | Target color data + measurement data total up to 1,000 |
| voltage | 4 AAA batteries (alkaline batteries or Ni-MH rechargeable batteries) |
| display mode | Color difference value, average value (1~10 times), pass judgment |
| operating environment | 0～40°C; relative humidity: below 85% (when the temperature is 35°C/no condensation) |
| storage environment | -20～40°C; relative humidity: below 85% (at 35°C/no condensation) |
| Dimensions | 66*158*85mm |
| Instrument weight | 420g (without battery) |
| display mode | Color difference value, average value (1~10 times), pass judgment |
| Qualified Judgment Items | ΔE*ab, Δ(L*a*b*), Δ(L*C*H*) |
| Measurable times | When using alkaline batteries and measuring at 10-second intervals, about 2000 times can be measured |
Table name: Specification parameter table of CR-10 Plus small color difference meter
Through the big data of the North and South Tide, similar specifications include X-Rite's Ci60 hand-held portable Colorimeter, Konica Minolta's CR-20 small Colorimeter, and Color Spectrum's CS-200 precision Colorimeter, etc. Technical comparisons can be made through the North-South Tide system In direct comparison, CR-10 Plus, a small Colorimeter, is impressive because it is a familiar and popular imported model. It is an upgraded version of the old CR-10. It uses pulsed xenon light source, 8/d illumination, standard 8mm diameter, optional 5mm, can be connected to computer programs via USB, cost-effective.

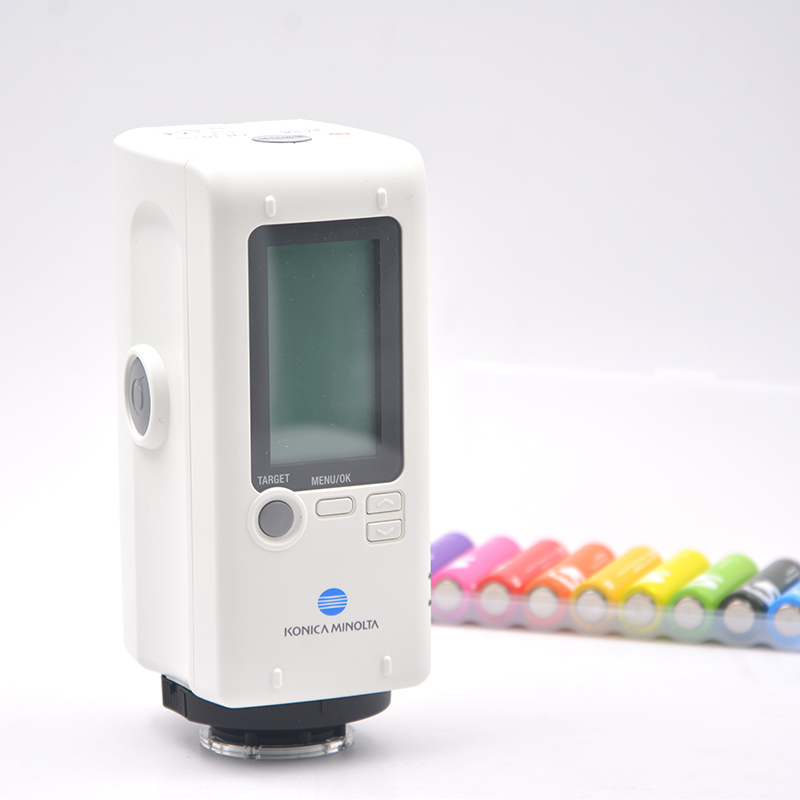

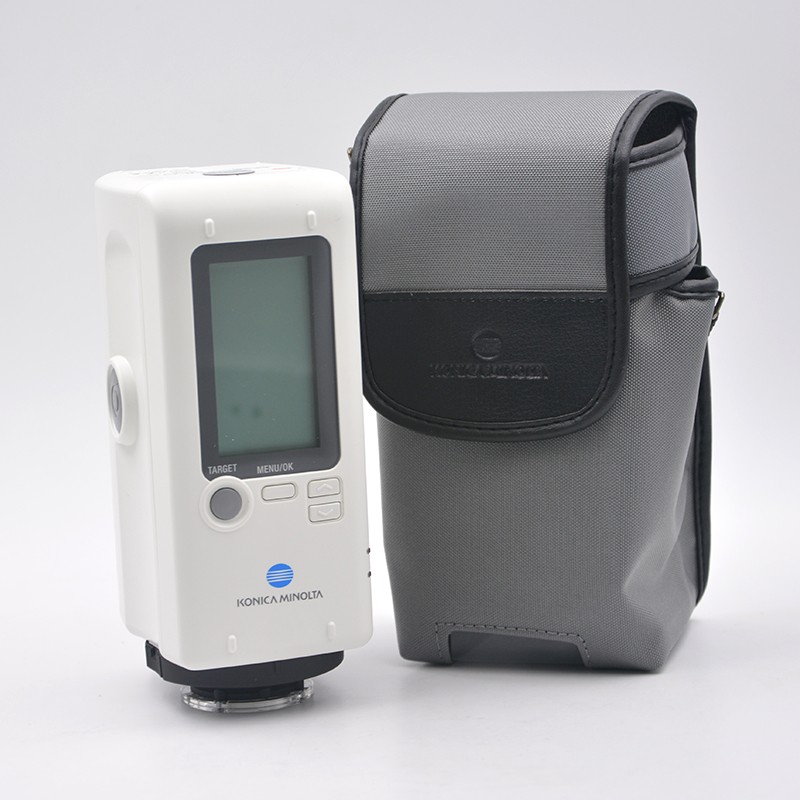

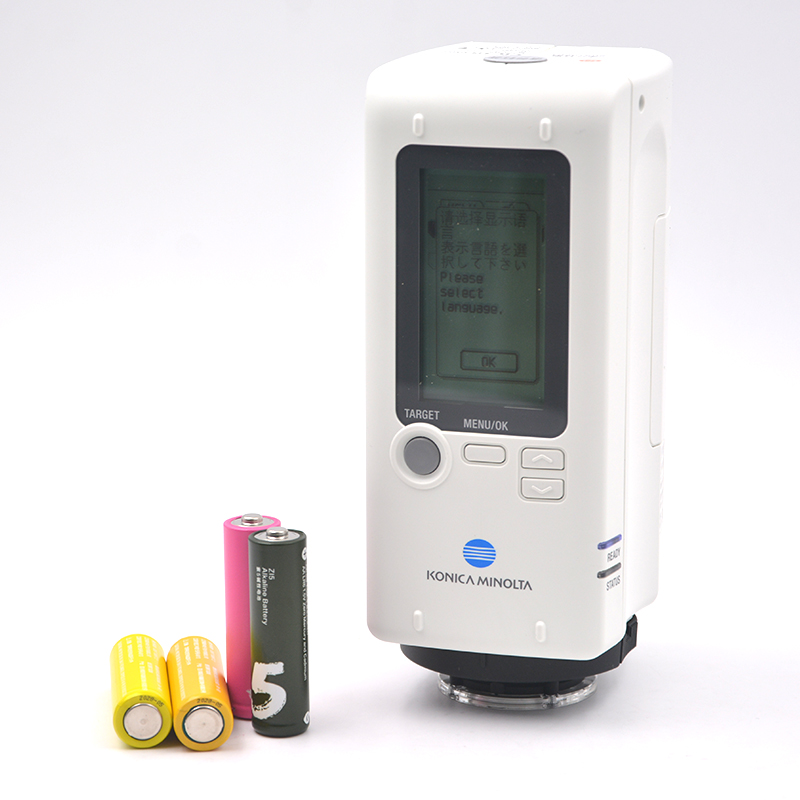

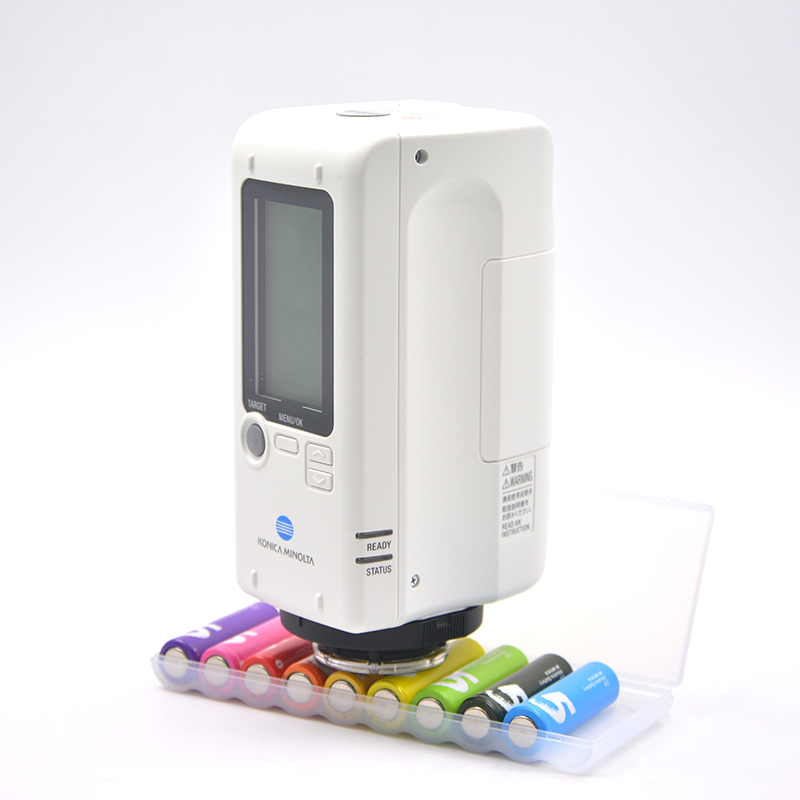

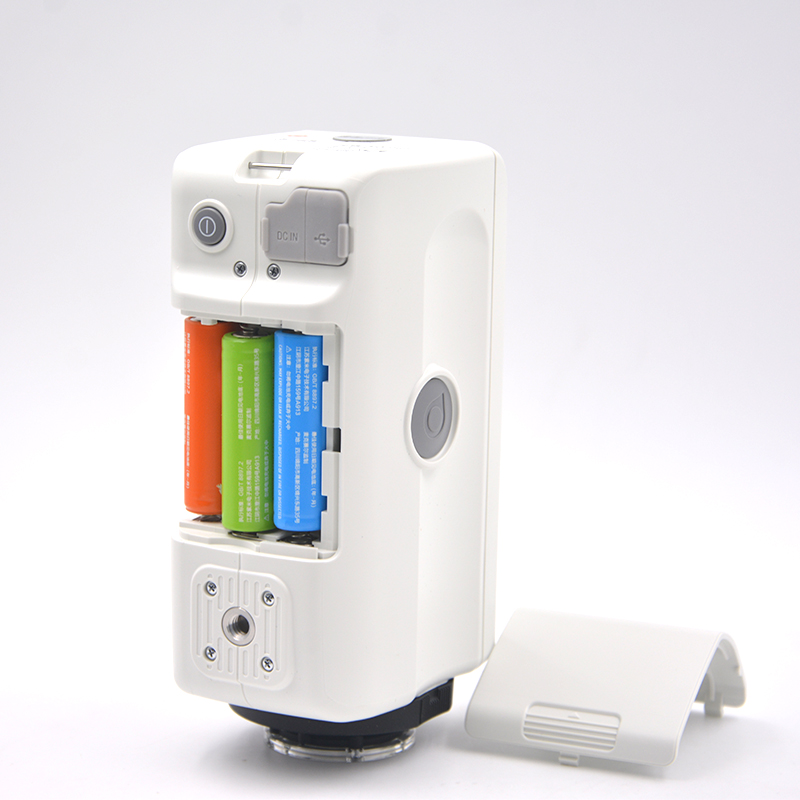

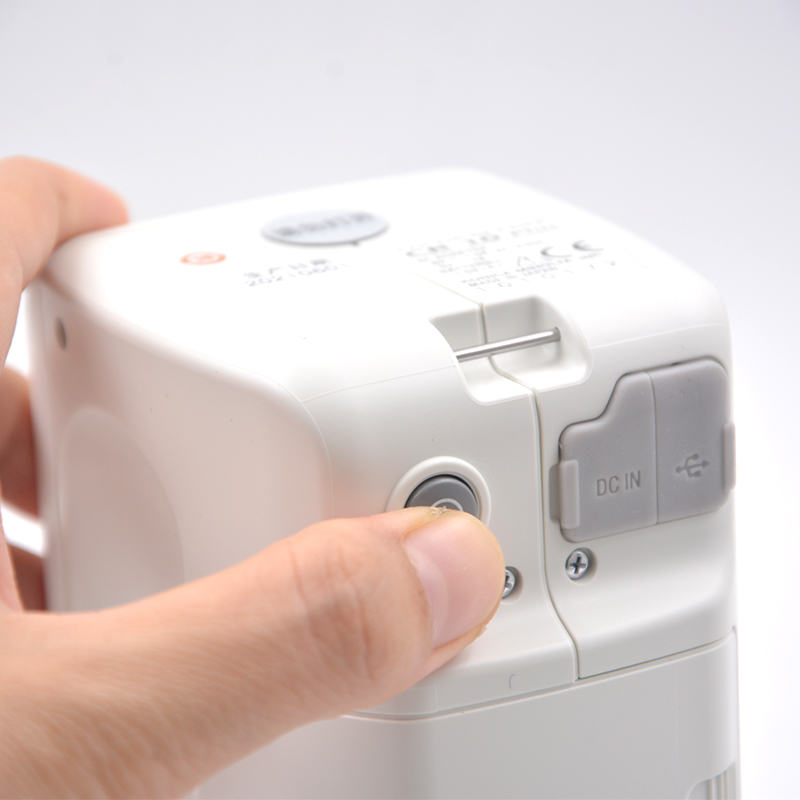

In the past year, 32,649 users have learned about Beichao in detail. Brothers and sisters of Xiaochao also took a set of physical pictures of CR-10 Plus for everyone, let’s enjoy together!
So, is this Konica Minolta small color difference meter good or not, and what is its quality? Choose different Colorimeters for different conditions and environments, and the right one is the best. Also remember that the warranty period of CR-10 Plus in Beichao is 365 days, including host x1, wrist strap x1, 8mm target mask with stabilizer x1, protective cover x1, USB cable x1, software (built-in), don’t tell me I didn't tell you!
