What accessories are needed for this Colorimeter to measure liquid color difference? Help me find a Colorimeter that meets the GB/T6688 standard. Is there any difference between the SCI and SCE light-containing methods of this Colorimeter? Users often come to Xiaochao with questions. In this issue, Beichao also complains about this Colorimeter made in CHINA.
The technical parameters of the Colorimeter are like the measurements of a person, Xiaochao is too lazy to waste his words, and directly shows the table
| lighting method | 8°/d |
| sensor | photodiode array |
| Measuring range | L:0~100 |
| Measuring light source | D65 |
| measure time | 0.5s |
| Measuring caliber | Φ8mm |
| repeatability | ΔE*ab<0.07 |
| operating language | Simplified Chinese |
| Data interface | USB2.0 (USB-B type) RS-232 (115200bps) |
| viewing angle | CIE 10° |
| Lighting source | Blue light excited LED |
| Color difference formula | ΔE*ab |
| data storage | 100 pieces of standard sample data, 100 pieces of sample data under each standard sample |
| voltage | nLithium battery can be measured 5000 times after fully charged |
| display mode | CIELAB, CIELCH |
| operating environment | 0°C-40°C (32°F-104°F); relative humidity below 85%, non-condensing |
| storage environment | -20°C-50°C; relative humidity below 85%, no condensation |
| Dimensions | 199*68*90mm |
| weight | 700g |
| Luminous way | SCI SCE |
| Difference between stations | ΔE*ab<0.2 |
| Lighting source life | More than 1.6 million measurements in 5 years |
| display screen | TFT true color display 2.8inch@(16:9) Resolution: 400x240 |
| Package size | 400*240*340mm |
| Standard accessories | Standard white board, standard black cavity, CD (color analysis system software), power adapter, USB data cable, manual, warranty card, 3000mAH lithium battery |
| optional accessories | Liquid test kits, powder test cartridges, micro printers |
Table name: WF28 Colorimeter specification parameter table
Through the big data of the North and South Tide, similar specifications include Konica Minolta's CR-400 color difference meter, Jinzhun's JZ-650 high-precision color difference meter and Weifu's WR18 color difference meter, etc. Technical comparisons can be made directly through the North and South Tide system In comparison, the WF28 Colorimeter is the economical horizontal type; super large LCD screen, diameter 8mm; USB, RS232 interface; D65 single light source; 0.5s fast measurement time; △E<0.07; position. Table name: WF28 Colorimeter specification parameter table

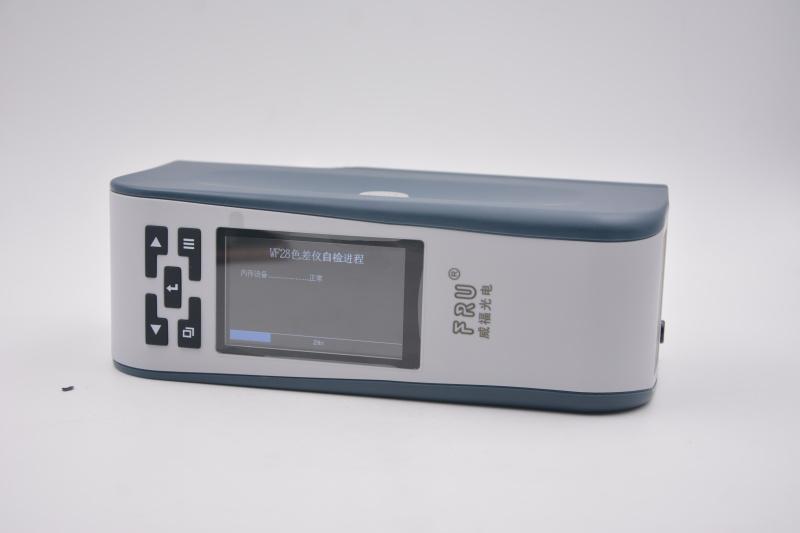

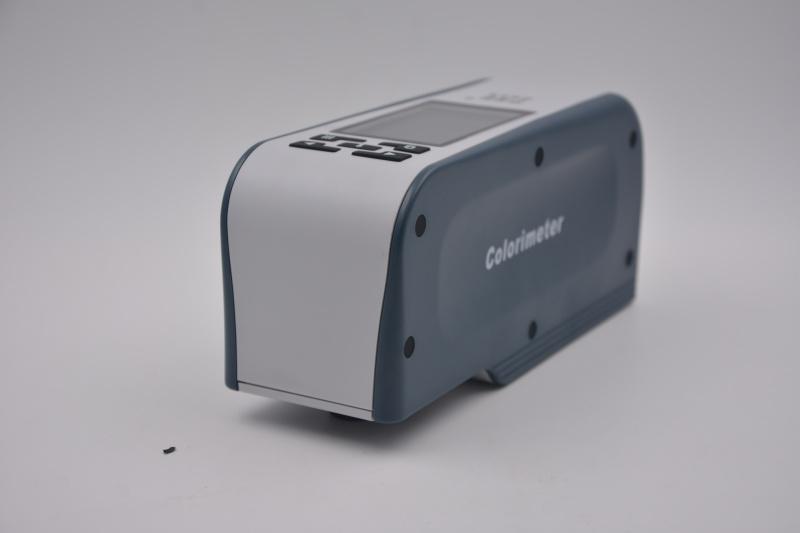

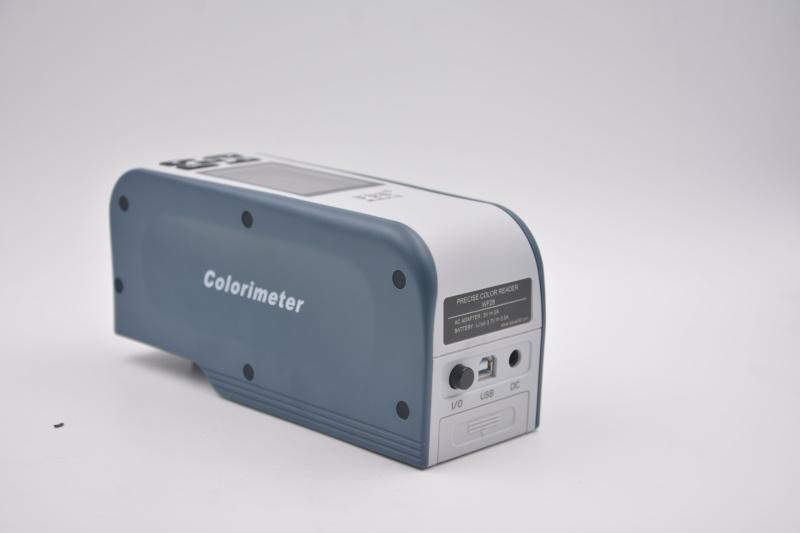

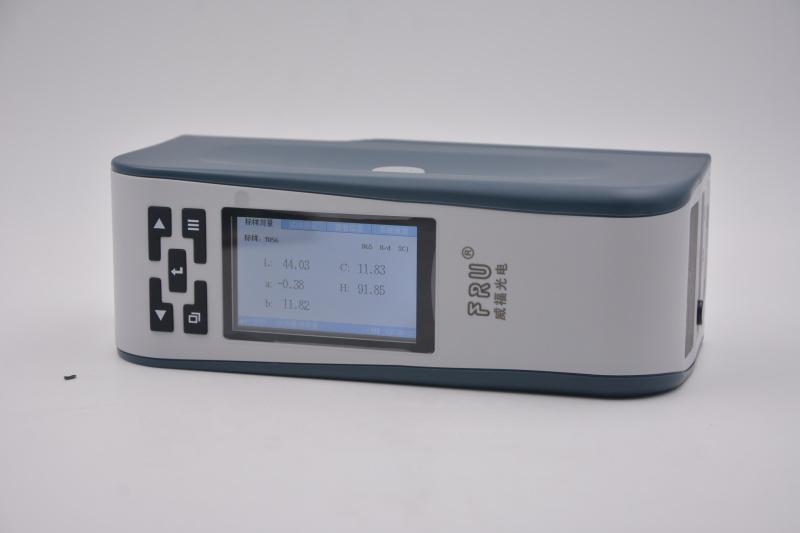

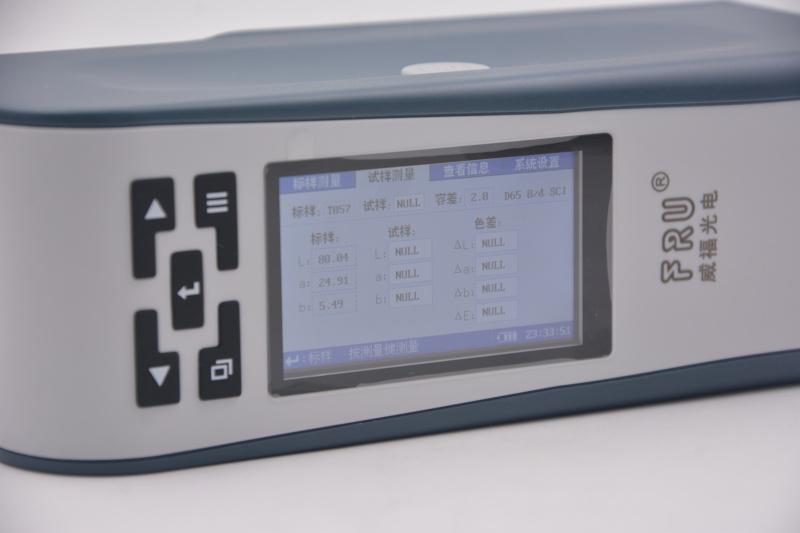

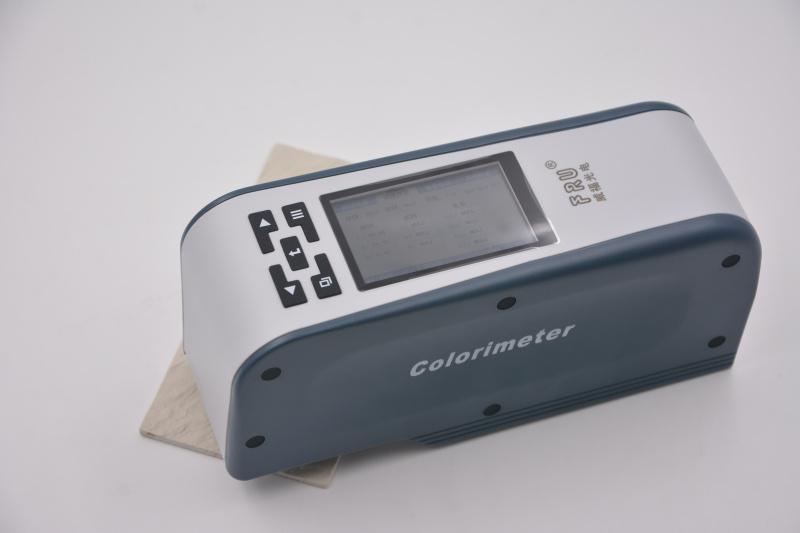

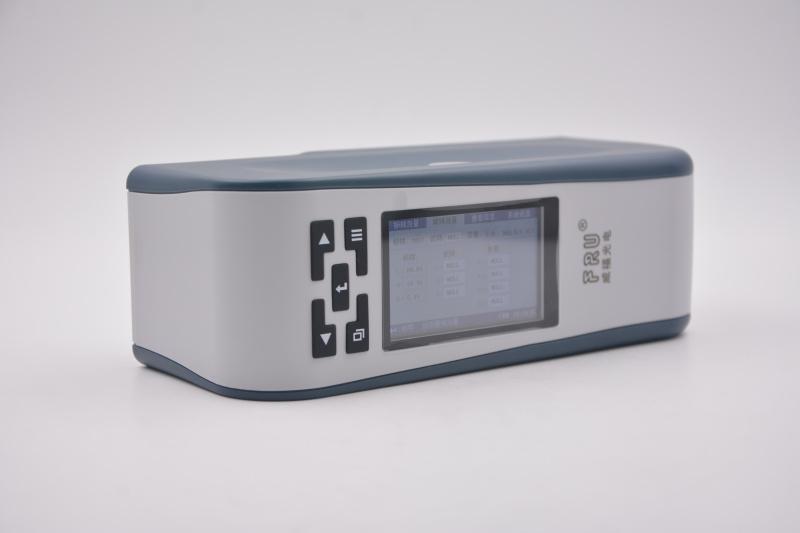

In the past year, 4880 users have learned about Beichao in detail. Xiaochao’s brothers and sisters also took a set of physical pictures of WF28 for everyone, let’s enjoy together!
So, is this Weifu Colorimeter good or not, and what is its quality? Choose different Colorimeters for different conditions and environments, and the right one is the best. Also remember that the warranty period of WF28 in Beichao is 365 days, including host X1, white calibration board X1, data cable X1, manual X1, warranty card X1, don’t say I didn’t tell you!
