Is this precision color analyzer available to order now? What is shown is that this CS-210 Colorimeter, which will be on the shelves soon, can test the color difference of stockings? How to calibrate the CS-210 color difference Tester? Users often come to Xiaochao with questions. In this issue, Beichao also complains about this Colorimeter made in CHINA.
The technical parameters of the Colorimeter are like the measurements of a person, Xiaochao is too lazy to waste his words, and directly shows the table
| lighting method | 8°/d |
| sensor | photodiode array |
| Measuring range | L*: 1~100 |
| Measuring light source | CIE D65 |
| measure time | About 0.5s |
| Measuring caliber | About Φ8mm |
| repeatability | Standard deviation within E*ab0.08 |
| operating language | Chinese English |
| Data interface | USB 2.0, printer |
| viewing angle | CIE 10° |
| Lighting source | LED light source |
| Color difference formula | Δ( L*a*b*) ,Δ( L*C*h) |
| data storage | 100 groups of standard samples, 100 groups of test groups for each standard sample |
| voltage | Removable lithium battery pack, dedicated DC5V adapter |
| display mode | Chromaticity value: L*a*b, L*C*h, △E*ab, XYZ, relative RGB value, staining fastness, color fastness; color difference value: △(L*a*b), △ (L*C*h); Whiteness value: Hunter whiteness, Ganz whiteness; Yellowness value: YI |
| operating environment | 5°C~40°C, relative humidity below 80% (35°C), non-condensing |
| storage environment | 0°C~45°C, relative humidity below 80% (35°C), non-condensing |
| Dimensions | 77*86*210mm |
| weight | 550g |
| optional accessories | micro printer |
| Other functions | camera viewfinder |
Table name: CS-210 Colorimeter specification parameter table
Through the big data of the northern and southern tides, Weifu’s WF28 Colorimeter, Jinzhun’s JZ-600 high-precision Colorimeter and 3nh’s NR200 Colorimeter have similar specifications. Technical comparisons can be directly compared through the northern and southern tide systems. CS-210 The most impressive color difference meter is the Φ8mm universal caliber, which adopts 8/d (8° illumination/diffuse light receiving), and includes camera viewfinder function; it can realize yellowness and whiteness test; USB data transmission, PC software control color data; Optional micro printer.

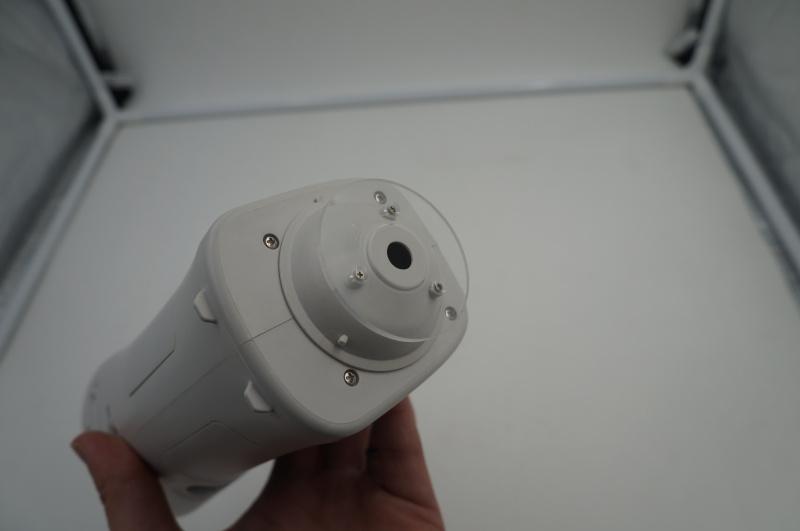

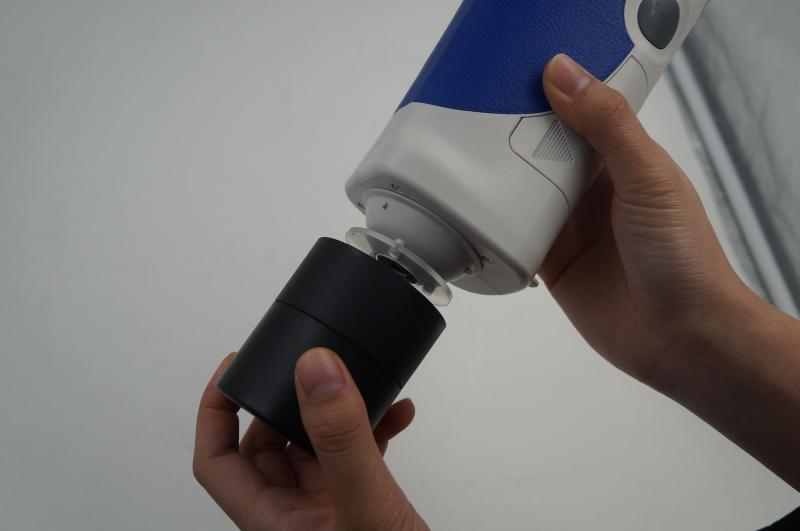

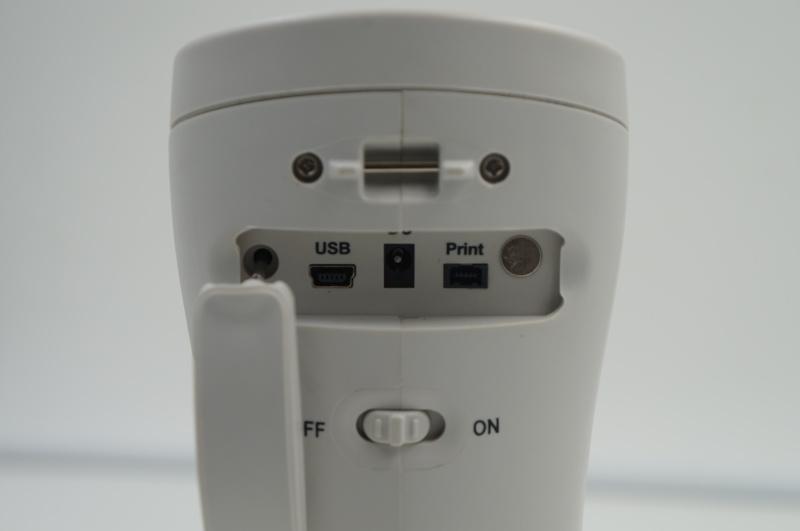

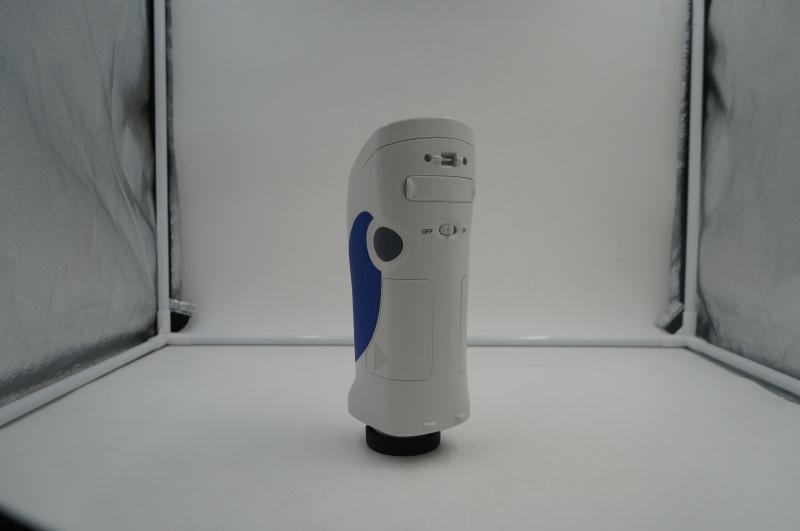

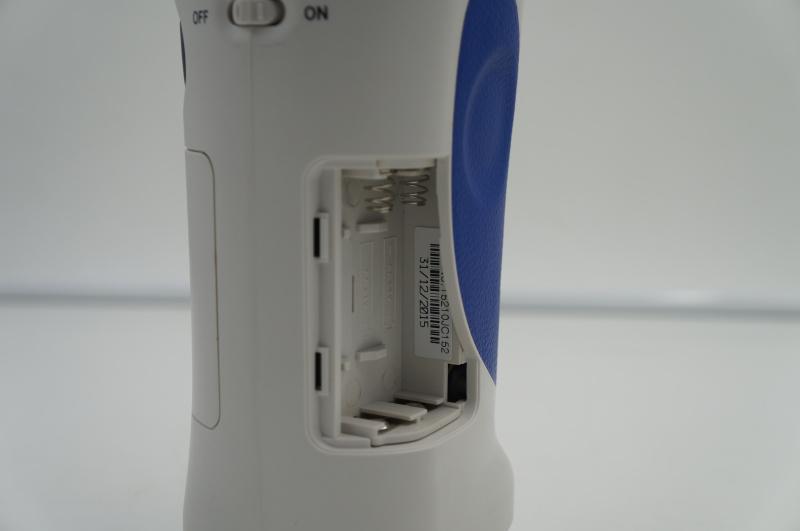

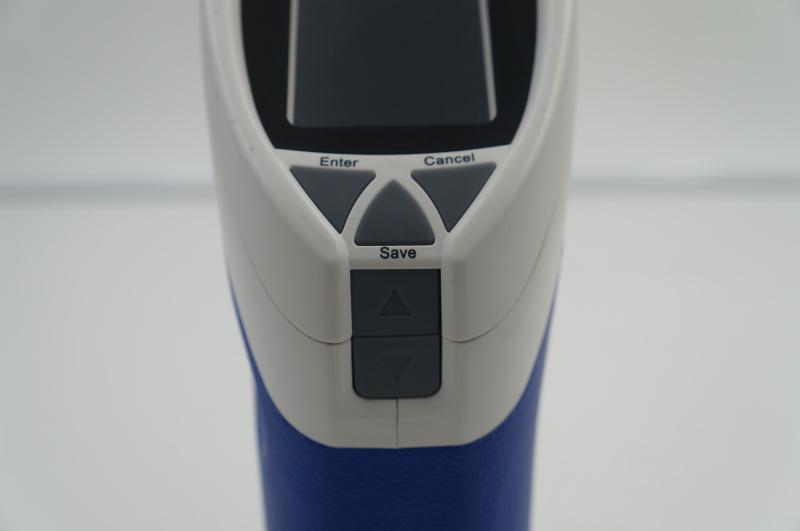

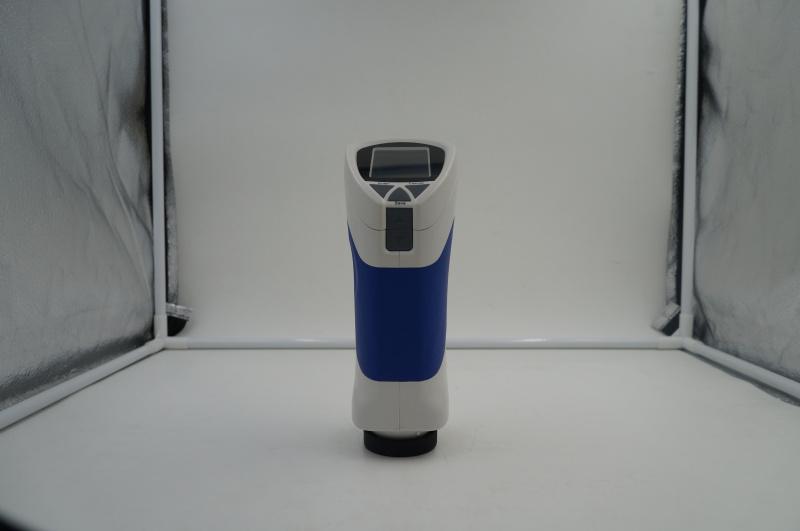

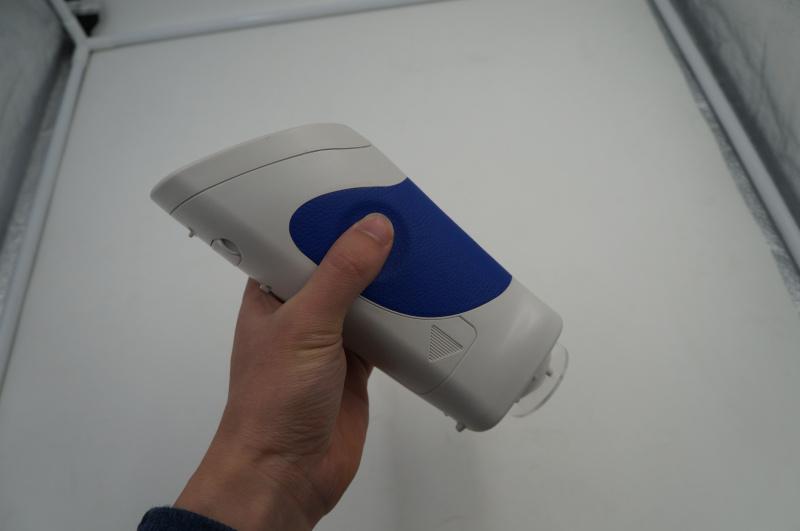

In the past year, 7226 users have learned about Beichao in detail. Xiaochao's brothers and sisters also took a set of physical pictures of CS-210 for everyone, let's enjoy together!
So, is this Spectrophotometer good or not, and what is its quality? Xiaochao is not stupid. Brothers and sisters say that it is useful if it exists. Choose different Colorimeters for different conditions and environments, and the right one is the best. Also remember that the warranty period of CS-210 in Beichao is 1095 days, including host x1, standard whiteboard x1, standard black cavity x1, data cable x1, warranty card x1, certificate x1, instruction manual x1, CD x1, carrying case x1, Don't say I didn't tell you!
