How to use oven temperature loggers and reporting software for better handling?

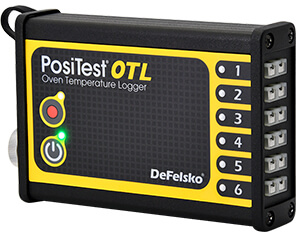

DefelskoPosiTest OTL Oven Temperature LoggerDesigned to measure and record air and surface temperatures while withstanding extreme oven environments.Measure and record up to 40,000 data setsMost positive OTLis simple, has an easy-to-use interface, andFree PosiSoft Reporting SoftwareIt has 6 K-type thermocouple channels and a high-temperature stainless steel barrier box for long-term operation at high temperatures.
Why measure the oven temperature curve?
Once applied to a part, powder coatings need to be held at elevated temperatures for a predetermined length of time to achieve full cure.The importance of oven temperature logging to ensure consistent quality and adequate cure across the entire surface of a part cannot be overemphasized.It is mainly used in powder coating industry, oven temperature Recorder, etc.Most positive OTLAlso used in other industrial sectors.
What is an Oven Temperature Profile?
Oven temperature analysis is the process of recording the temperature at multiple locations on a part as it passes through a conveyor belt or batch heating process.The collection of temperature data helps to optimize the process, reduce the cost of baking and powder coating curing, and ensure the continuous uptime of the oven.Areas where the powder coating is undercured may not meet durability specifications, even if it does not appear different to the eye.
Oven temperature analysis is easy in four easy steps:
Connects to 6 temperature sensors to data logger and part under test. To ensure that the temperature of the entire part is monitored, probes are typically placed in thin, thick, high-low areas of the part and at least one air temperature sensor is used.
Place the data logger in the insulation.
Send the data logger and test piece to the oven.
Analyze and report results.
Temperature distribution is beneficial as it is an effective way to reduce energy consumption, produce better product quality and perform fast fault finding.
What is an oven temperature Recorder?
Furnace temperature RecorderIs the meter optimized and configured to provide consistent measurement of temperature from a temperature sensor (thermocouple) while also storing the reading for reporting purposes.thisMost positive OTLWith 6 K-type thermocouple ports (channels), when combined with freePosiSoft Desktop Software, measurement data can be easily imported into free analysis software or spreadsheets to view and analyze batch data.
What is an Oven Temperature Logger Probe (Thermocouple)?
installOven Temperature Logger Probes (Thermocouples)is a sensor used to monitor and record the temperature profile of manufacturing ovens commonly used to cure powder coatings and other industrial applications.The oven temperature probe can be placed directly in the oven, the data is recorded, and then downloaded to a computer for analysis.Real-time analysis of oven temperature helps identify hot or cold spots in the oven before any problems arise.
DeFelsko offers a wide variety of air and surface temperature probes for analyzing oven temperatures.Choose from spring clip, magnetic, or washer-type temperature probes with 1.8, 3.6, or 6 m (6', 12', or 20') of stainless steel braided cable for testing air or surface temperatures to suit your application.
Spring Clip Temperature Probes - air or surface temperature sensors mounted on spring clips for attachment to parts of various sizes
Magnetic Temperature Probe - Air or surface temperature sensor mounted on a strong magnet for attachment to steel parts
Gasket Type Temperature Probe - Surface temperature sensor mounted on a gasket, screwed or bolted to the part
What are the two oven temperature logger kits offered by DeFelsko?
defalsco proposalKit of Two Oven Temperature Loggers-existPosiTest OTL SuiteandPosiTest OTL XT Suite.
This PosiTest OTL kit comes complete with temperature logger, stainless steel high temperature box with fiberglass insulation, stand, 6 engraved probe ID labels, and a carrying case.
This PosiTest OTL XT kit includes the same features from the PosiTest OTL kit but with an enhanced holder and heat sink for greater durability at high temperatures.
The table above and the selection of tables and table holders shown in Table X and Table 1 represent the characteristics of the thermal barrier.
How to use Oven Temperature Logger Reporting Software?

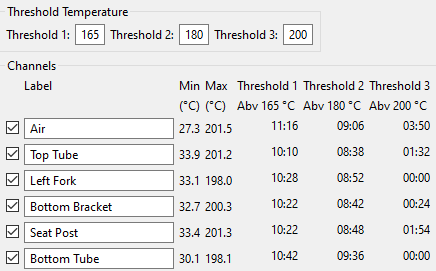

Powder coating manufacturers usually specify several parameters necessary to ensure complete cure.Aside from ensuring a consistent temperature throughout the oven, an important parameter is "time above temperature", and the amount of time the coating needs to remain above a certain temperature to achieve full cure.Time over temperature can be calculated simultaneously at the three critical temperatures as shown below.

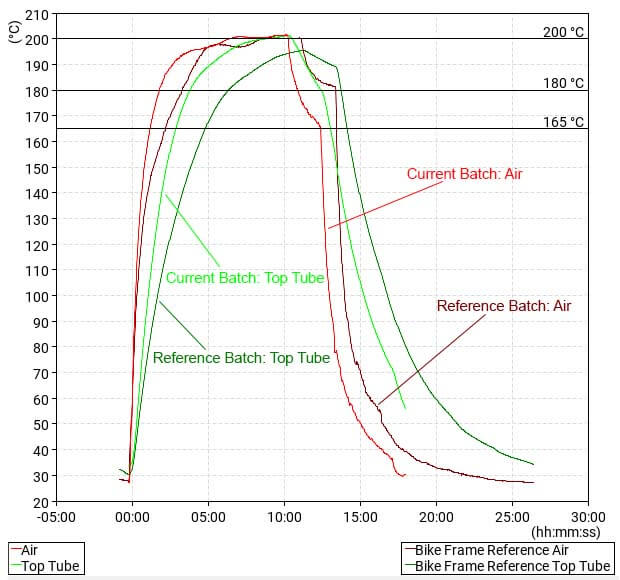

PosiSoft Desktop SoftwareNot only does it allow the user to set three threshold temperatures to verify that each probe has had sufficient "time at temperature," it also allows batch data to be plotted against a "reference sample" from a previous batch for easy comparison between batches. Instant comparison, as shown in the image below.
Since the amount of time between activating the logger and placing it in the oven can vary, use the "Temperature Start" option to set all Time is set to zero.The starting temperature for the current batch is above 30°C.
The main purpose of monitoring and maintaining oven temperature is to verify that the oven reaches and remains within the specified temperature range.It is also important to monitor the condition of the oven during the process to ensure better control of product quality, reduce energy consumption and costs, better control product quality and increase productivity.
What are the benefits of using a PosiTest OTL Oven Temperature Logger?
thisMost positive OTLis an easy-to-use interface that records measurements every 2 seconds for up to 22 hours.It can plot temperature readings from up to six sensors/channels to show temperature changes over time.New graphed readings can be compared to previously stored reference curves.Each graph channel is color coded for easy identification and comparison.Users can easily generate professional reports containing all relevant information for their specific application.
thisMost positive OTLmost accepted6 K-type thermocouple sensorsSpring clip, magnetic, and washer configurations are available in a variety of cable lengths for measuring air and surface temperatures.

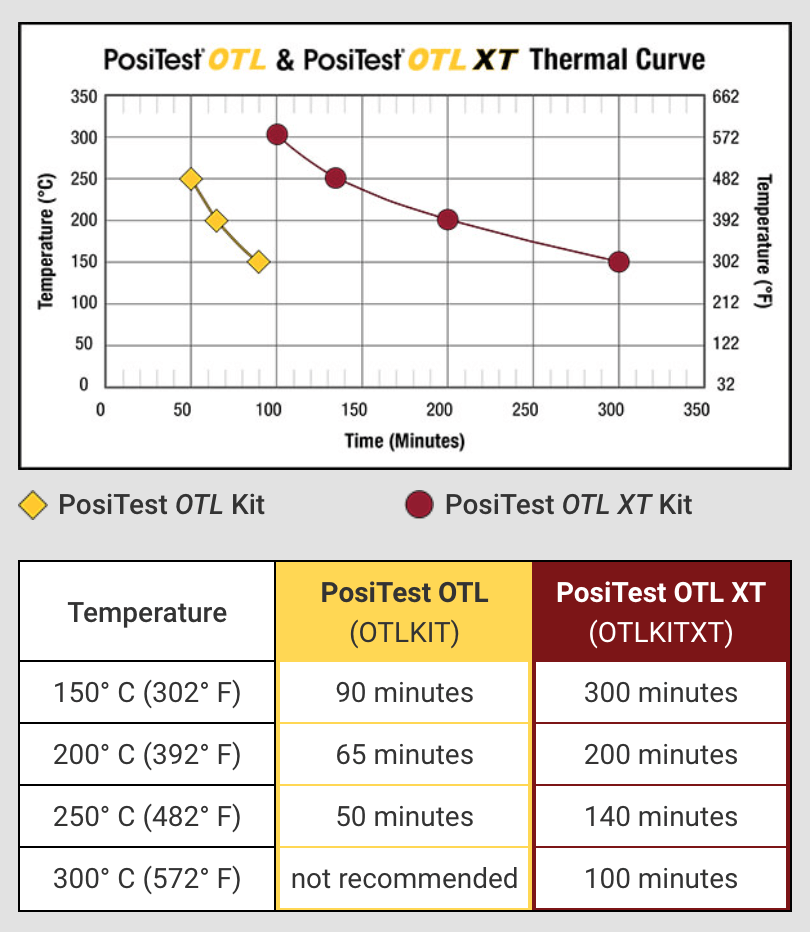

High temperature stainless steel isolation box with fiberglass insulation and optional stand for extended operation at high temperatures (capable of withstanding temperatures up to 300°C or 572°F) for up to 300 minutes.It has built-in memory to store 40,000 data sets (240,000 readings), which can be downloaded toPosiSoft Desktop, users can generate customizable reports.
*Thermal characteristics depend on temperature, time and kit configuration.See the diagram inKits section of the PosiTest OTL page.
