Correct installation steps of flat viscometer [with video demonstration]

overview

Plane viscometer, also known as spreader, is commonly used to measure the viscosity value of paints, coatings, water-based inks, etc. is a viscometer based on the principle of ink flowing between two parallel plates. It quickly and accurately measures the flow of ink between two parallel plates under low shear stress. (In some countries in the world, the diffusion diameter in one minute is the fluidity of the ink.)

Steps

• Remove the plexiglass plate


• pull down banner

• Align the columns at both ends with the crossbar and lift up

• Add the required ink into the round hole

• Cover the glass cover

• finger up

• Observe the parallel plate viscosity of the ink

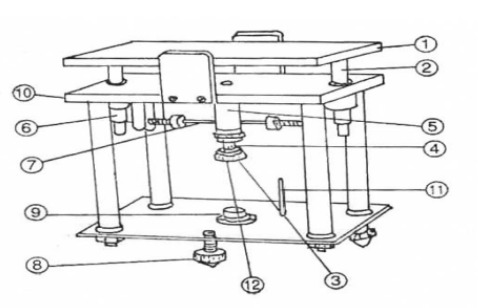

structure diagram

1. Press plate; 2. Guide post; 3. Tight nut; 4. Central shaft; 5. Set; 6. Guide post cover; 7. Spring shaft; 8. Adjusting screw; 11. small column; 12 adjustment female

video demo
