Adhesion of various plastic substrates to films

According to the adhesion (bonding force) of plastics and coating film, plastics can be divided into three categories: easy to adhere, difficult to adhere and non-adhesive.

1. Easy to adhere to plastic substrates: such as ABS and PMMA plastics, which can be treated without primer, and can be directly coated with topcoat paint for plastics , which belongs to this type.

2. Difficult-to-adhesive plastic substrates: For example, RIM-PU modified PP requires special treatment (including special primer treatment) before it can be adhered, which is a difficult-to-adhesive plastic.

3. Does not adhere to plastic substrates: If unmodified PP has extremely poor surface activity, without strong treatment , the primer cannot adhere. (Related instrument: adhesion Tester)

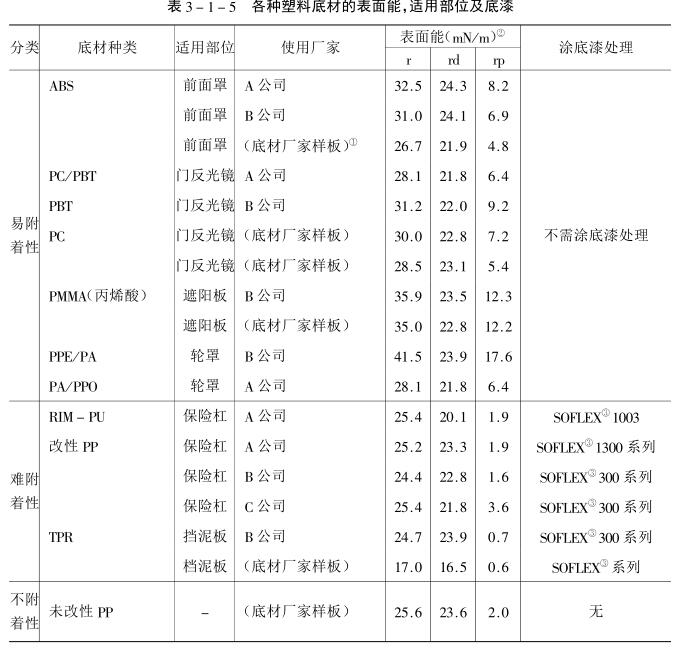

ABS, PMMA, PC, PBT and other easy-adhesive primers that do not require primer have relatively high surface energy, and modified PP, RIM-PU, and unmodified PP are difficult-adhesive and non-adhesive primers Low surface energy (see Table, 3-1-5).

Adhesion diagram of various plastic substrates and coating films 1

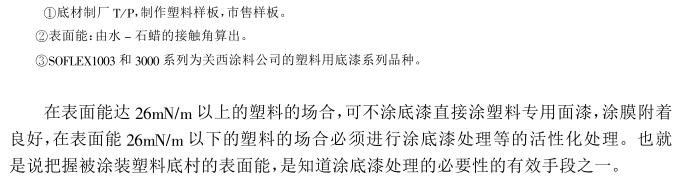

Adhesion diagram of various plastic substrates and coating films 2

Adhesion of various plastic substrates and coating films Figure 3

Adhesion of various plastic substrates and coating film 4

The adhesion of various plastic substrates and coating films is shown in Figure 5
