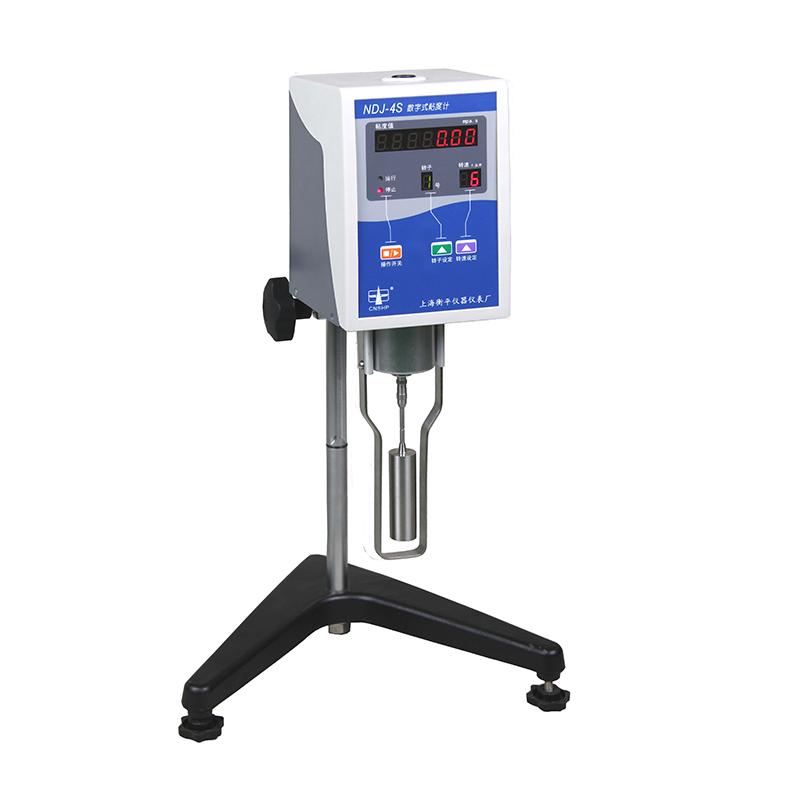

CNSHP NDJ-4S Digital Rotational Viscometer
The measurement range of CNSHP hengping NDJ-4s digital display Rotational Viscometer is 1~ 2 × 1000000mPa.s. The NDJ-4s digital display Rotational Viscometer adopts LED digital tube display.
hengping-
HUINUO LVDV-1 digital display Rotational Viscometer 6 million mPa · s 99.9rpm
$ 1061.00 -
PT100 Viscometer temperature transducer
$ 141.00 -
YUEPING NDJ-5SC Rotational Viscometer Viscosity meter 10 million cps
$ 910.00 -
NIRUN NTV-P2HB Intelligent Digital Viscometer swirl/spin Viscosity-Meter 800-320M mPa · s
$ 3938.00 -
FANGRUIs ULR Ultra Low Viscosity Adapter, Enhanced, Optional
$ 231.00
Introduction
NDJ-4s digital display Rotational Viscometer is an upgraded product of the traditional pointer Rotational Viscometer. This instrument adopts professional mechanical design, manufacturing process and single-chip microcomputer control technology, LED digital tube display, accurate measurement; this viscometer adopts simple three-key operation mode, one key to select the rotor number, one key to adjust the speed, one key to read It is very convenient to use the viscosity value.
NDJ-1S (4S) digital display viscometer has the characteristics of high measurement sensitivity, reliable test results, convenient use and operation, and beautiful appearance. It is a satisfactory instrument for measuring the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids. , can be widely used in the measurement of the viscosity of various fluids such as grease, paint, plastic, medicine, food, paint, detergent, etc.
Features
Replace pointer rotary viscometer
High brightness LED digital tube display
One-key selection of rotor number
One key to adjust the speed
One key to read the viscosity value
Exquisite aluminum shell packaging

hengping NDJ-4S Digital Rotational ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Display mode | digital |
| Measurement range | 1~2000000mPa·s |
| Rotor specification | 1 #, 2 #, 3 #, 4 #(0 #optional) |
| Rotor speed | 0.3/0.6/1.5/3/6/12/30/60rpm |
| Measurement Accuracy | ±2%FS |
| Power | AC 220V +/- 10% 50Hz +/- 10% |
| Allowable operating temperature | 5~35℃ |
| Dimensions | 380*320*390mm |
| Weight | 4.5kg |
| Automatic stop for single measurement | After the measurement result is stable, the rotor automatically stops |
| Allowable Relative Humidity | ≤80% |
hengping NDJ-4S Digital Rotational Viscometer Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
