OSP custom wire rod OSP-60 L500φ 10 WFT 60μm Spreader width 500mm

The OSP-60 L500φ 10 custom wire rod is a production wire rod with a wet film thickness of 60μm, an effective Spreader width of 500mm and a diameter of 10mm. There is no hand-held part at both ends of the OSP-60.

Brand

SKU: NB010664

OSP

Model

OSP-60 L500 Φ10

Get Quote

OSP shop

Information

Datasheet

What else did others buy

Genuinegoods

OSP OSP-60 L500 Φ10 Coating RodOverview
Specifications
Comments
FAQs

OSP-60 L500 Φ10

Coating Rod

Introduction

OSP OSP-60 L500 Φ10 custom wire rod is a production type wire rod, made of stainless steel, which is mainly used for quantitative control of fluid in the production process, and for uneven pre-coating, this defect can be solved through this production type metering rod. The production profile has a fixed groove that wipes out excess fluid, resulting in a flat coating.

OSP OSP-60 L500 Φ10The customized wire rod is an extruded process metering rod with a coating film thickness of 60μm, a Total length of 500mm, an effective coating width of 500mm, and a diameter of 10mm.

Product Applications

OSP OSP-60 L500 Φ10Customized wire rods are suitable for glass film, pressure-sensitive paper, film, paper, packaging and other industries.

Features

1、OSPcustomizeWire rodsIt adopts extrusion process, easy to clean, stainless steel material, not easy to rust.

2. Wire rods installed in production equipment to control flow and maintain coating uniformity.

Product display diagram

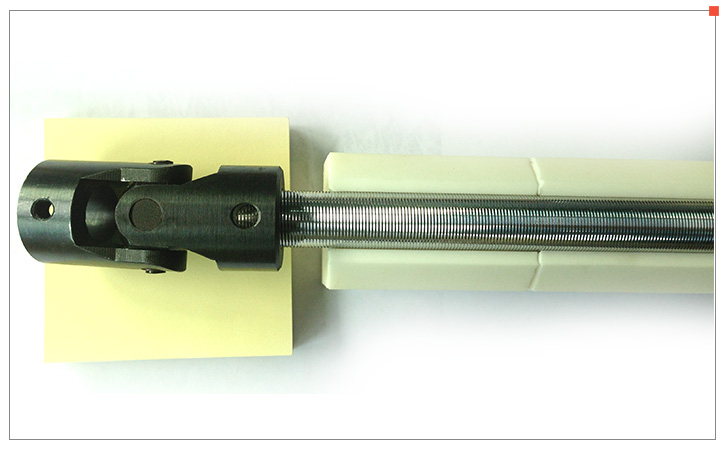

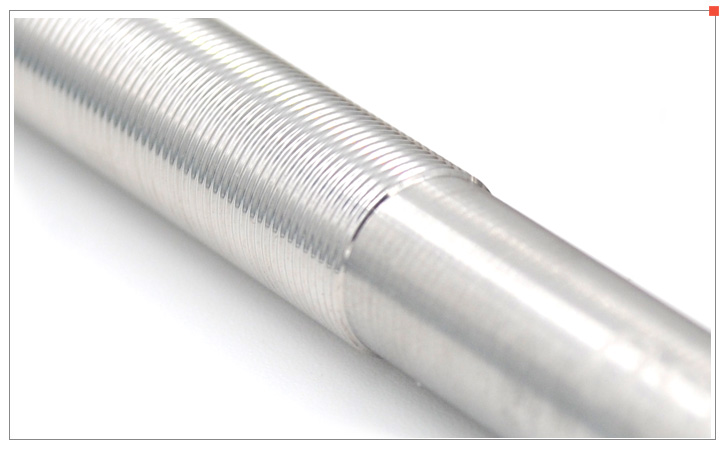

OSP OSP-60 L500 Φ10 custom wire rod display diagram

OSP OSP-60 L500 Φ10 Coating RodSpecifications

LIST	VALUE
Production process	Formed
WFT	60μm
diameter	10mm
Total length	500mm
Spreader width	500mm
grip width	without
material	304 stainless steel

OSP OSP-60 L500 Φ10 Coating Rod Packing list

Wire rod x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Can all custom wire rods be used for inspection in the ASTMD823 standard?

[A]

Not necessarily, but this OSP-60 L500φ 10 custom wire rod can be considered.

[Q]

We use emulsion paint to measure covering power, just built laboratory, any suggestions?

[A]

Using Mayer-Rod to prepare emulsion paint coating on covering power cardboard is a common practice and can be applied. If you need to get good experimental results, you can buy American RDS Mayer-Rod and Leneta covering power test paper.

[Q]

The solid content of the product is 28%, and the dry-film thickness after scraping is 17 microns. Can this film applicator?

[A]

Sure
