YDX DW-4 ( 55.65.75.85 (AP) — A member of the U.S. Thermometric Paper

Thermometric Paper Yadongxing DW-4 (55.65.75.85) 55/65/75/85 ℃ Four kinds of temperature measurement temperatures (90 pieces)

Yadongxing DW-4 (55.65.75.85) Thermometric Paper is a 4-frame temperature measuring patch, Thermometric Paper has four measurement temperature points at 55/65/75/85 ℃, and each Thermometric Paper has 90 pieces.

Brand

SKU: NB001078

YDX

Model

DW-4 ( 55.65.75.85 (AP) — A member of the U.S.

Price

$ 140.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

YDX shopSE

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

YDX DW-4 ( 55.65.75.85 (AP) — A member of the U.S. Thermometric PaperOverview
Specifications
Comments
FAQs

DW-4 ( 55.65.75.85 (AP) — A member of the U.S.

Thermometric Paper

Introduction

Yadongxing DW-4 (55.65.75.85) temperature measuring paper is a 4-compartment temperature measuring patch with four temperature points of 55°C, 65°C, 75°C, and 85°C. Yadongxing DW-4 temperature measuring paper is a large sheet with 90 small pieces on it. When using it, the user can take off a small piece with scissors or tear it by hand and stick it on the temperature measuring part. Yadongxing temperature measuring paper is a new temperature measuring technology, which is different from thermometers and temperature measuring wax sheets. It is an irreversible temperature measuring paper with temperature recording function, over-temperature discoloration and protective film on the surface, which makes up for other temperature measuring papers. Inconvenient to carry the tool or inconvenient to paste, etc. At the same time, it reports the temperature of the temperature measuring equipment in a simple and rude way, and it is clear before and after discoloration.

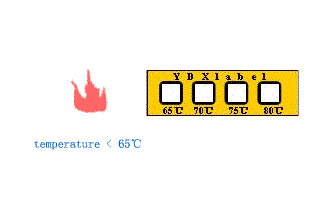

Yadongxing DW-4 (55.65.75.85) temperature paper color change animation

Specifications

model	temperature range	Number of temperature grids	Sheets per sheet	Size of each piece
DW-4 (55.65.75.85)	55 °C, 65 °C, 75 °C , 85 °C	4 cells	90 tablets	12x40mm

operation method

1. Choose a clean and dry temperature measurement part, or clean the temperature measurement part to remove oil or dust.

2. willCarefully tear off the Yadongxing DW-4 (55.65.75.85) temperature measuring paper. Be careful not to touch the sticker on the back of the temperature measuring paper with your hands, so as not to affect the adhesive force of the sticker.

3. When pasting the temperature measuring paper, press firmly on the equipment, try to pinch the four corners of the temperature measuring paper tightly, remove the tiny air gap between the glued surfaces, and ensure that the glued surface is under pressure to play the role of bonding , the bond is stronger.

4. After the DW-4 (55.65.75.85) temperature measuring paper is bonded to the device, the color will change with the temperature of the device, and the user can detect the change of the temperature measuring paper during this process.

5. After the temperature measurement is completed, just tear off the temperature measurement paper.

Pictures

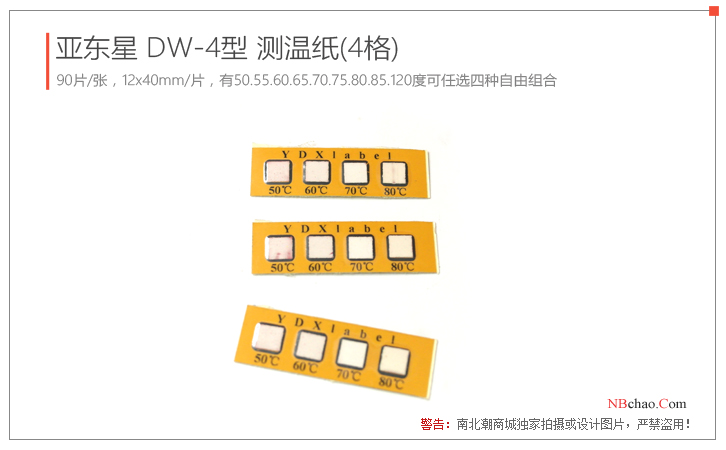

Yadongxing DW-4 (55.65.75.85) thermometer paper display

Comparison chart of Yadongxing DW-4 (55.65.75.85) temperature measuring paper before and after overheating

Details of Yadongxing DW-4 (55.65.75.85) temperature measuring paper with protective film

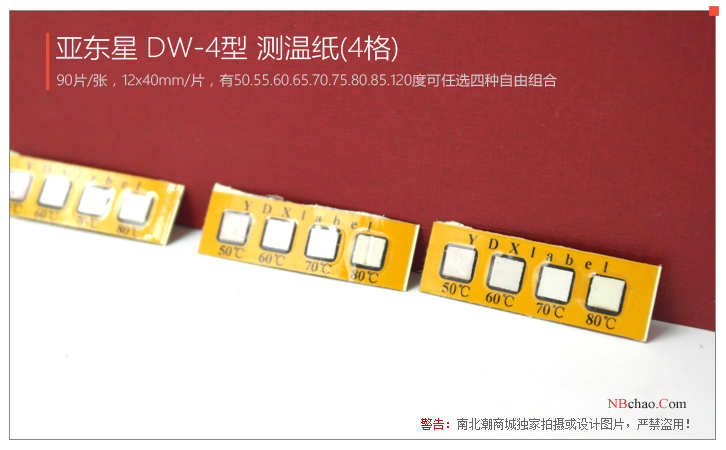

Real shot of Yadongxing DW-4 (55.65.75.85) temperature measuring paper

Note: The above pictures are based on DW-4 (50.60.70.80) as an example. Yadongxing temperature measuring paper DW-4 can be combined at 50.55.60.65.70.75.80.85.120 degrees, such as 50.60.70.80 or 55.65. 75.85 combination etc. A sheet of 90 pieces, long in shape, each with four temperatures (can be customized).

YDX DW-4 ( 55.65.75.85 (AP) — A member of the U.S. Thermometric PaperSpecifications

LIST	VALUE
Reversibility	Irreversible
number of temperature grids	4 squares
Measurement temperature ℃	55℃\|65℃\|75℃\|85℃
Specifications and Dimensions	12*40mm
Temperature grid shape	rectangle
Encasement Specifications	90 pieces/sheet

YDX DW-4 ( 55.65.75.85 (AP) — A member of the U.S. Thermometric Paper Packing list

Thermometric Paper x1 (90 pieces/sheet)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

How long does this Thermometric Paper need to be kept warm before it changes color?

[A]

When the temperature of the mark is reached, the corresponding grid will change color, usually in a few seconds.

[Q]

How long is the lifespan of the temperature measuring patch (temperature recording label) of Yadongxing?

[A]

Yadongxing's temperature measuring patch can last for many years as long as it is not over-heated, especially indoors. It can be stored for 4-5 years or even longer under normal environment at room temperature. Considering that the industrial site is more complicated and the environment is harsh, we stipulate that as long as the temperature measuring patch is kept white and not over-heated, it can be used for 2-3 years. Patches that have been over-heated and discolored are better replaced in time with maintenance. When storing, it should be stored in a cool and airtight place, and it is forbidden to approach high temperature to prevent over-temperature discoloration; avoid mechanical damage such as direct scratching, scratching, and smashing.
