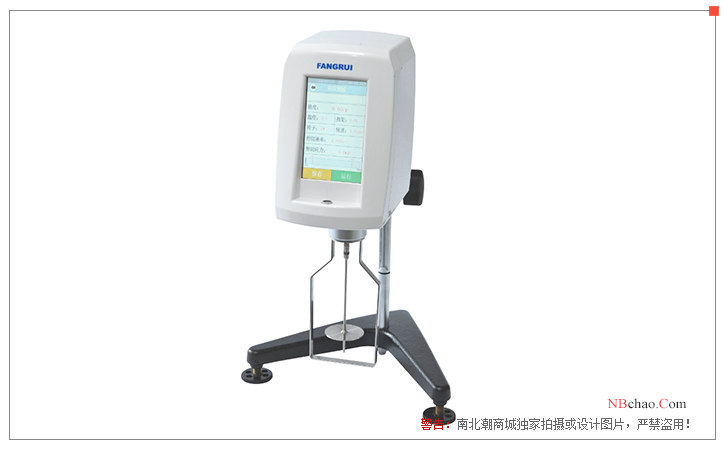

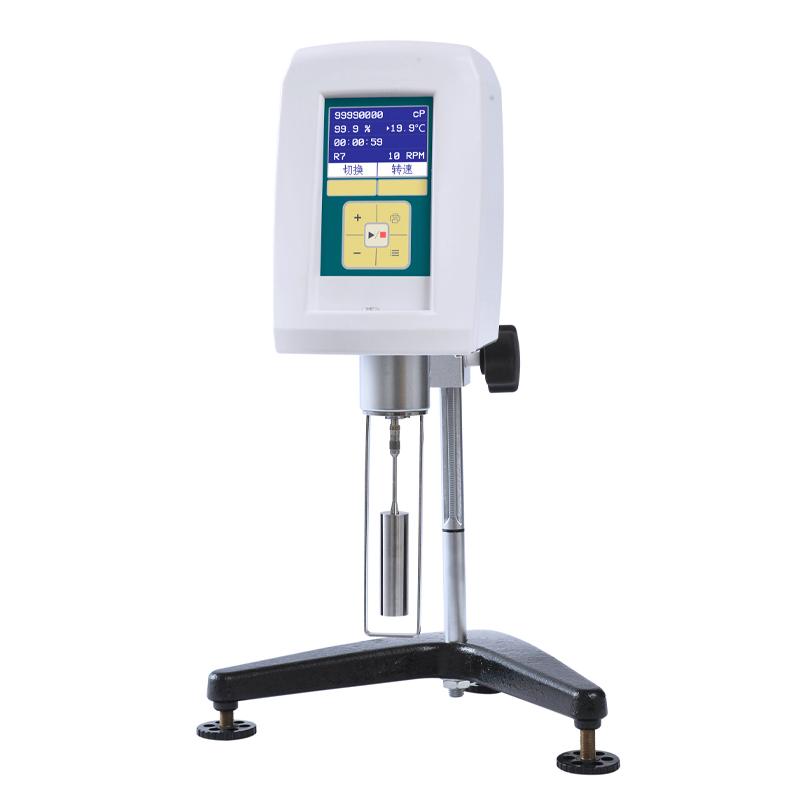

FANGRUI HADV-2T Digital Rotational Viscometer Viscosity range 200~80 million mPa·s

Introduction

FANGRUIs HADV-2T digital display Rotational Viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers. Self-built 30 sets of test programs help users quickly and accurately establish viscosity measurement conditions; the 5-inch super-large color touch screen can comprehensively and visually display various parameters and Operating Conditions. It has many measurement parameters and rich display content.

Features

① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;

② Accurate viscosity measurement: each range is automatically calibrated by computer, with high precision and small error;

③ Rich display content: In addition to viscosity (dynamic viscosity and kinematic viscosity), there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, current rotor speed Viscosity measurement range, date, time, etc. under combination. And it can display the kinematic viscosity when the density is known, which can meet the different measurement requirements of users;

④ Complete functions: the RS232C interface can be connected to a computer, and can be used for timing measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;

⑤ Front level meter: intuitive and convenient level adjustment;

⑥ Stepless speed regulation: 0.1-200 rpm, a total of 2000 speeds;

⑦ Display the curve of shear rate versus viscosity: the range of shear rate can be set and displayed on the computer in real time; the curve of time versus viscosity can also be displayed;

⑧ Optional Pt100 temperature probe: wide temperature measurement range, from -20 to 300℃, temperature measurement accuracy 0.1℃;

⑨ Abundant optional accessories: constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;

⑩ Chinese and English operating system.

Application

FANGRUI HADV-2T Digital Rotational Viscometer is widely used in paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc. , Paraffin, hot melt adhesive and other industries.

Pictures

Viscometer host x1, R2-R7 rotor x1 (set), triangular base x1, column x1, power adapter x1, instrument aluminum box gold foil x1, rotor protector x1, sample cylinder x1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
