FANGRUI Instrument NDJ-1C-T Brinell Rotational Viscometer asphalt/hot-melt adhesive/paraffin Suitable for
FANGRUI Instrument NDJ-1C-T Brinell Rotational Viscometer is the preferred model for asphalt, hot-melt adhesive, paraffin, polymer and other fluid viscosity measurement. NDJ-1C-T Brinell Rotational Viscometer uses a 5-inch color touch screen with a viscosity range of 10 to 200,000 mPa · s.
FangRui
NDJ-1C-T
-
Pingxuan HATV-2H Brinell Viscometer High Temperature Viscometer 16 million mpas
$ 2169.00 -
NIRUN NDJ-8S + Ultra Low Viscosity Adapter, New Digital Viscometer
$ 1137.00 -
HUINUO NDJ-5S Digital Rotational Viscometer with RTD temperature sensor
$ 466.00 -
NIRUN DV-79A Digital Viscometer Low Viscosity
$ 1737.00 -
Fungilab Viscolead One R Rotational Viscometer 13 million cP
Login
Introduction

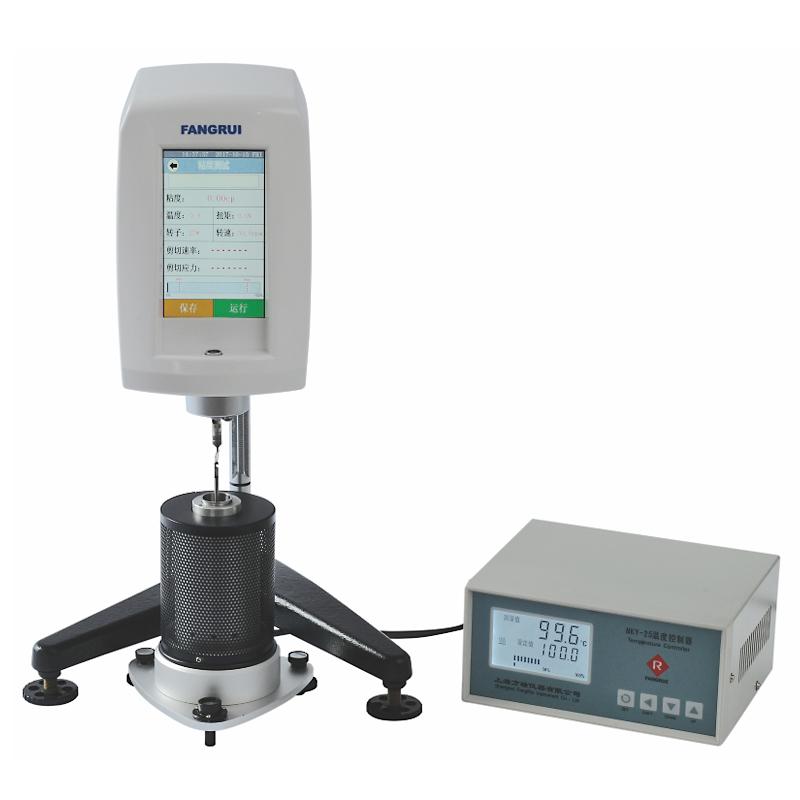

NDJ-1C-T Brinell Rotational Viscometer is a high-temperature rotational digital viscometer, which can measure the dynamic viscosity of substances (such as hot-melt adhesives, asphalt, paraffin, polyethylene, etc.) that are solid at room temperature and melt into fluids after high temperature heating. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been compiled and recommended by the adhesive industry standard and selected by customers in related industries.
Meets standards
GB/T2794-1995 Determination of adhesive viscosity, HG/T3660-1999T determination of melt viscosity of hot melt adhesive, JTG E20-2011 test requirements for highway engineering asphalt and asphalt mixture test regulations.

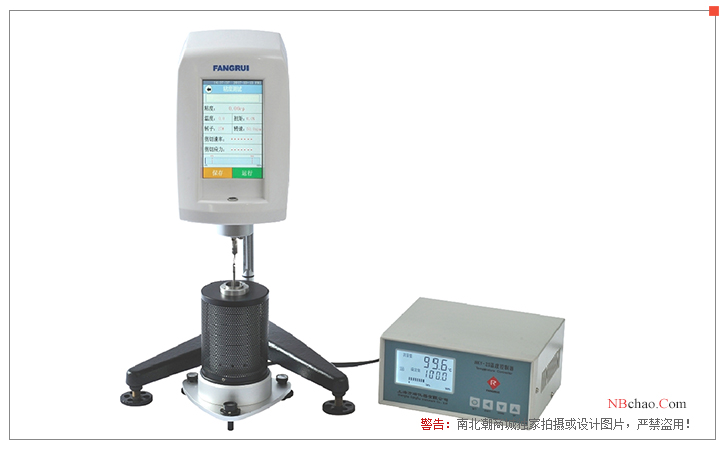

Product display diagram
FangRui NDJ-1C-T Cloth Rotational ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Display | 5-Inch color touchscreen |
| Measurement range | 10~200000mPa·s |
| Rotor speed | 0.5/1/2/5/10/20/50rpm |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1%F.S |
| Power supply Voltage | 220V / 50Hz |
| Application standard | GB/T2794-1995；HG/T3660-1999T；JTG E20-2011 |
| Dimensions | 300*300*450mm |
| Weight | 10kg |
| Capacity | 15~25ml |
| Temperature range | RT+~250℃ |
| Temperature Accuracy | 0.1℃ |
| Timer | Flexible setting according to sample conditions |
| Linear dispersion | Real-time display of viscosity Linear dispersion |
| Save measurement results | 30 sets can be stored (including rotor, Rotation speed, temperature, time, etc.) |
| Interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
FangRui NDJ-1C-T Cloth Rotational Viscometer Packing list
Viscometer host x1, 1-4 rotor x1 (set), triangular base x1, column x1, sample container cup x1, power adapter x1, instrument aluminum box gold foil x1, rotor protection frame x1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
