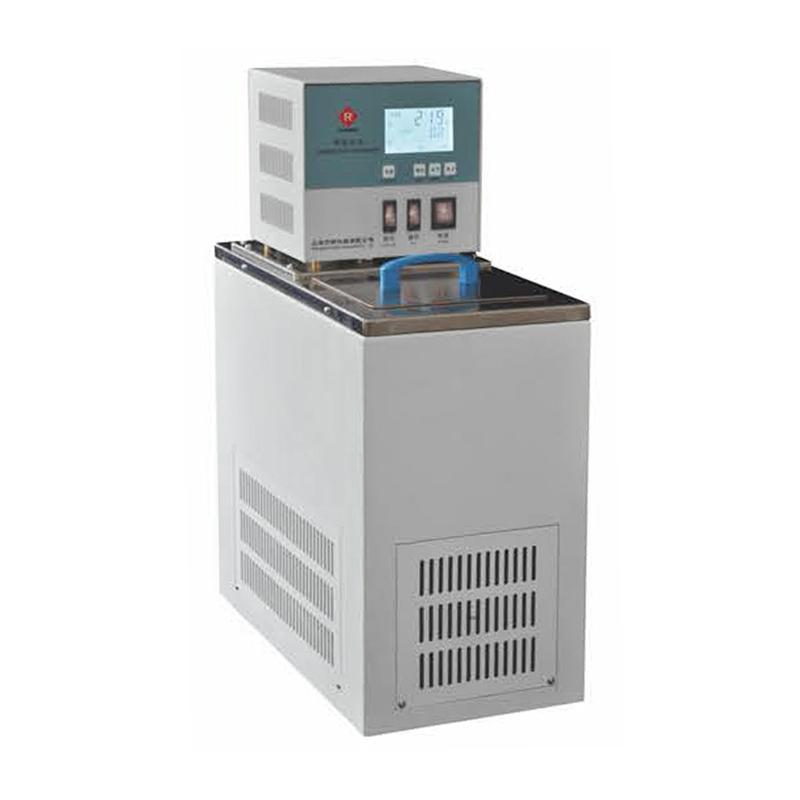

FANGRUI instrument DC1506L vertical constant temperature bath Temperature range -15~ 100 ℃

Introduction

Fangrui Instrument DC1506L vertical thermostatic bath is a microcomputer temperature control constant temperature Water Bath (Oil Bath), using a new high-performance monolithic microcomputer control, self-tuning PID adjustment, using imported temperature sensor temperature measurement, high temperature control accuracy, small fluctuation; the use of good refrigeration compressor (some models are all imported brand compressors or compressor units), high refrigeration efficiency, fast cooling, low noise; the use of good fully sealed stirring motor, lubricating grease is not volatile, low noise and long life.

Features

1. Adopt high-performance single-chip microcomputer control, PID adjustment and self-tuning control technology, with high temperature control accuracy and short stability time;

2. It has the function of disconnection protection to prevent the instrument from getting out of control;

3. There is a liquid level protection device, which can effectively prevent various failures caused by the empty burning of the heating tube;

4. The upper limit over-temperature alarm function can be set by yourself, and if the range is exceeded, it will alarm immediately;

5. The instrument works stably and reliably, and the operation is very convenient;

6. The inner tank, table top and all parts immersed in liquid are high-quality stainless steel, which is corrosion-resistant and easy to clean;

7. Large-screen backlit LCD screen, the parameters are clear and clear, beautiful and fashionable.

Application

DC1506L vertical thermostatic bathThermostatic tests can be carried out directly in the tank, or the controlled thermostatic liquid in the tank can be directed to other equipment by means of a hose connected to other equipment using the external circulation function.

DC1506L vertical thermostatic bathIt is widely used in bioengineering, food, chemical industry, metallurgy, chemical analysis, petroleum and other fields, providing users with a high-precision, controlled, and uniform temperature constant field source, and is a satisfactory constant temperature device for research institutes, colleges and universities, factory laboratories, and quality inspection departments.

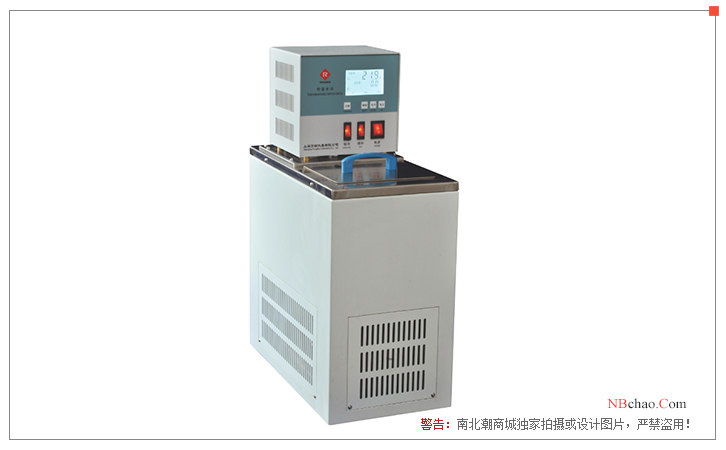

Product display diagram

host x1, cover x1, silicone tube x1, power cord x1, manual, certificate of conformity, warranty card x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
