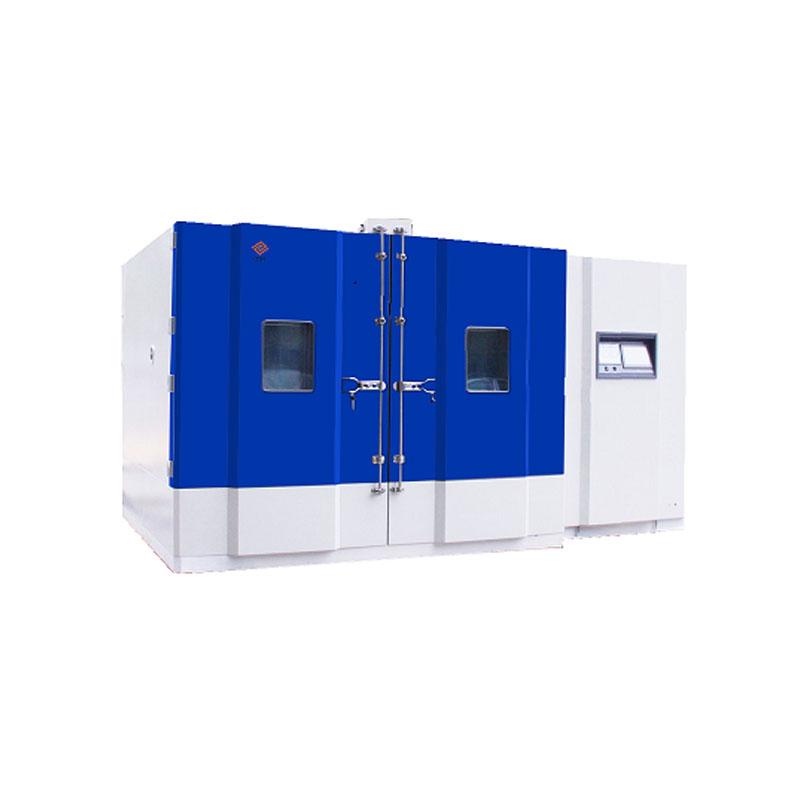

CEPRI TSD1000W-55 Thermal Shock Test Chamber

Introduction

The hatchback temperature shock Test Chamber simulates the transient change between high-low temperatures and is used to determine whether the equipment will cause physical damage or degradation when subjected to sudden changes in ambient atmospheric temperature. It is the testing equipment required in aviation, automobiles, home appliances, scientific research and other fields, and assesses and determines the parameters and performance of testing instruments, machinery, electricians, electronic products and parts after high-low temperature impact tests.

The hatchback Thermal Shock Test Chamber is equipped with two studios, namely the high temperature area and the low temperature area, and the test piece is moved to the corresponding studio through the hanging basket to carry out the high-low temperature impact test.

TSD1000W-55 Thermal Shock Test Chamber meets the test standards

GB/T2423.1-2001 Test A: Low temperature test method

GB/T2423.2-2001 Test B: High temperature test method

GJB150.3A-2009 High Temperature Test

GJB150.4A-2009 Low temperature test

GJB150.5A-2009 Temperature Shock Test

Program capacity

Quantity: up to 120 groups

Number of steps: maximum 100 steps/group

Total number of cycles: up to 999

Programs can be linked (link program serial number can be selected)

Communication features

RJ-45 interface with local and remote communication capabilities

After installing the software provided by the company, the equipment can be remotely monitored in the control software, and the equipment can be programmed, started and stopped, and the data and curves in the test process can be recorded through the software, and the data and curves can be printed as needed.

Curve recording function

Curves are stored in real time, the current curve can be displayed, the historical curve can be queried and displayed, the curve time stamp function is available, the historical data can be downloaded with a U disk, the curve can be restored in the special software and Excel reports can be produced.

External data storage function

USB interface, with a USB disk (capacity not less than 4G, no warranty), a special software CD for PC.

The test program is compiled through the special software of the PC and imported into the controller; It is also possible to import the program in the controller into the PC for analysis and management.

The test curve data recorded in the controller can be transferred to a USB stick. Direct display and printing of test data/curves via PC-specific software; Or convert record data into Access data files that can be read by Microsoft Office.

Ancillary features

Fault alarm and cause

Power-off protection function

Calendar timer function (auto-start and auto-stop)

Self-diagnosis function

TSD1000W-55 thermal shock Test Chamber is standard

Cable hole: lead hole Φ50mm, number 1, with 2 rubber stoppers, the number of lead hole specifications can be determined by both parties before design.

Sample holder: 2 layers, bearing capacity (uniform distribution) 30kg/layer

Specimen shelves: 4

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
