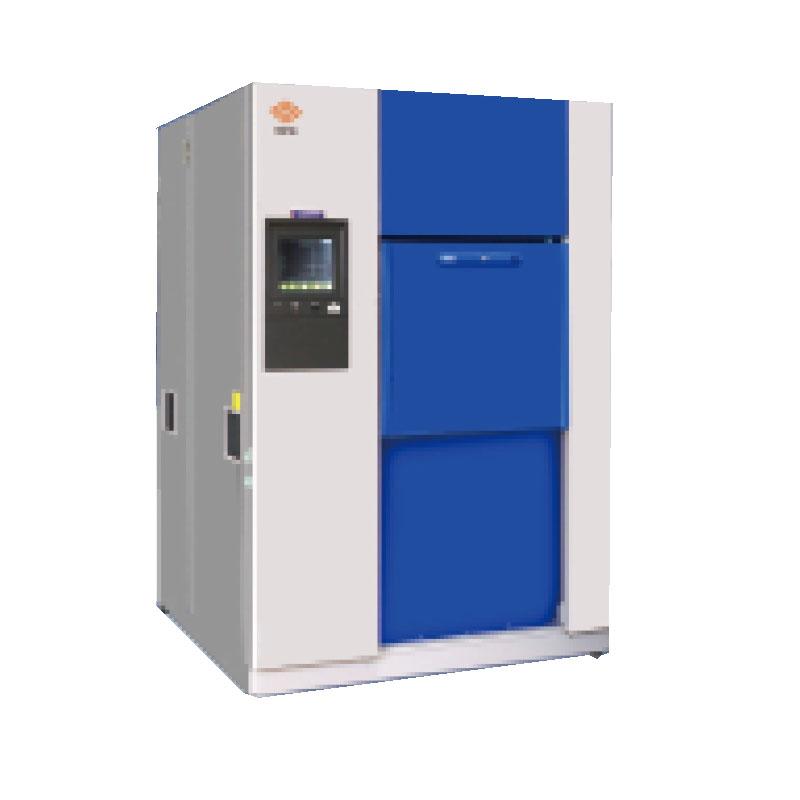

CEPRI TST300W-40 Thermal Shock Test Chamber (Three-Chamber Type)

overview

The Temperature Shock Test Chamber simulates the transient changes between high-low temperatures to determine whether equipment can cause physical damage or degradation when subjected to drastic changes in ambient atmospheric temperature. It is the testing equipment required in aviation, automobiles, home appliances, scientific research and other fields, and assesses and determines the parameters and performance of testing instruments, machinery, electricians, electronic products and parts after high-low temperature impact tests.

Meet the test criteria

GB/T2423.1-2001 Test A: Low temperature test method

GB/T2423.2-2001 Test B: High temperature test method

GB/T2423.22-2001 Test N: Test method for temperature change

GJB150.3A-2009 High Temperature Test

GJB150.4A-2009 Low temperature test

GJB150.5A-2009 Temperature Shock Test

Application

The TST300W-40 Temperature Shock Test Chamber cannot be used for testing in the following situations:

Testing or storage of samples of flammable, explosive, and volatile substances

Testing or storage of corrosive substance specimens

Testing or storage of biological specimens

Testing or storage of specimens from strong electromagnetic emission sources

Communication features

TST300W-40 temperature shock Test Chamber has RJ-45 interface, with local and remote communication function, after installing the software provided by the company, the equipment can be remotely monitored in the control software, the equipment can be programmed, started and stopped and other operations, through the software can record the data and curves in the test process, and can print the data and curves as needed.

Curve recording function

Curves are stored in real time, the current curve can be displayed, the historical curve can be queried and displayed, the curve time stamp function is available, the historical data can be downloaded with a U disk, the curve can be restored in the special software and Excel reports can be produced.

External data storage function

The TST300W-40 temperature shock Test Chamber has a USB interface, a USB disk (with a capacity of not less than 4G, no warranty), and a special software CD for PC.

The test program is compiled through the special software of the PC and imported into the controller; It is also possible to import the program in the controller into the PC for analysis and management.

The TST300W-40 temperature shock Test Chamber can transfer the test curve data stored in the controller to the USB disk. Direct display and printing of test data/curves via PC-specific software; Or convert record data into Access data files that can be read by Microsoft Office.

Ancillary features

Fault alarm and cause

Power-off protection function

Calendar timer function (auto-start and auto-stop)

Self-diagnosis function

Requirements for the Operating Environment

Temperature: 5°C~35°C

Relative Humidity: ≤85%

Air pressure: 86kPa~106kPa

Installation environment requirements

The ground is level, and the inclination of the installation position of the equipment does not exceed 1°

The ground bearing capacity is not less than 600kg/m2

The venue is well ventilated

There are no strong vibrations around the device

There is no strong electromagnetic field around the device

There are no flammable, explosive, corrosive substances and dust around the equipment

Proper use and maintenance space around the equipment:

Standard configuration

Φ50 cable hole: 1 (located on the left side of the box, with 2 rubber stoppers)

Sample baskets: 2 pcs, bearing capacity (uniform distribution) 30kg

Specimen shelves: 4

Casters: 4 pcs, for mobile Test Chambers

Adjustment feet: 4 pcs, for supporting the Test Chamber

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
