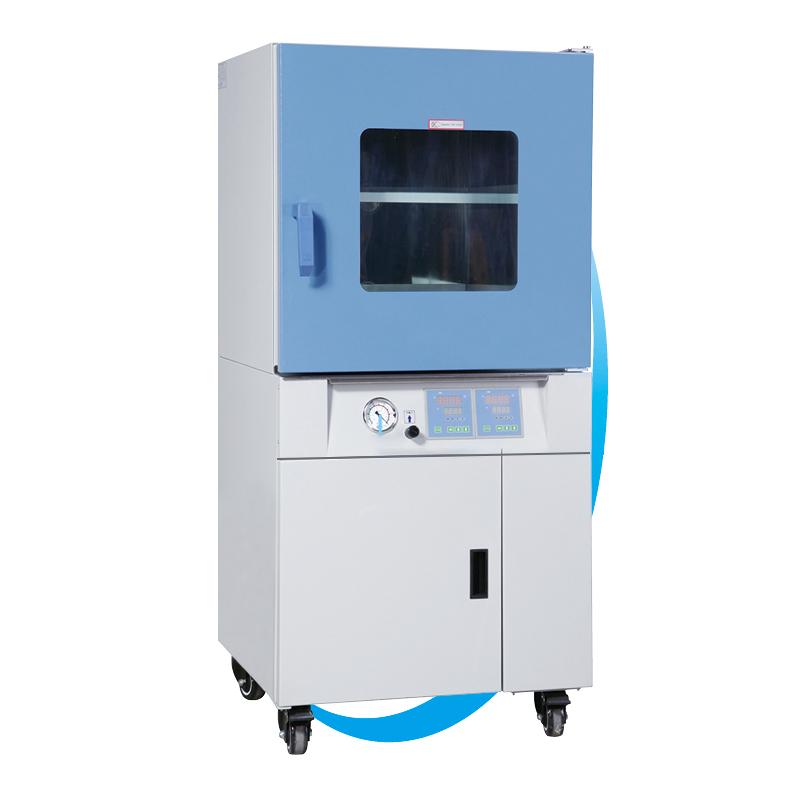

YIHENG BPZ-6213 Vacuum oven vacuum heat treatment equipment for electronic products
The rectangular stainless steel studio has a large effective volume utilization rate, a vacuum degree of 133Pa, and is equipped with a double-decked tempered Glass observation window and over-temperature protection function. Optional program control ensures stoving conformity.
YiHeng
BPZ-6213
BPZ-6213B
BPZ-6213LCB
-
Kenton KH-110C digital display industrial air drying oven galvanized liner with timing
$ 927.00 -
SANFA DZF-6090 Vacuum Oven
$ 1610.00 -
BOZHEN DGG-9076A vertical Forced Air Drying Oven 72L/300 ℃
$ 509.00 -
SANFA GRX-140 Hot Air Sterilization Oven (Dry Heat Sterilizer) 140L
$ 722.00 -
BENTING CBX125B Hot Air Disinfection Box 2.3kw/125L
Login
This product is suitable for heat treatment in vacuum conditions such as defoaming, dehydrating, hardening and drying after washing treatment in the production process of electronic products, and is widely used in the vacuum drying treatment of lithium-ion batteries, LED optoelectronic components, crystal oscillators and other electronic product production processes.
Features:

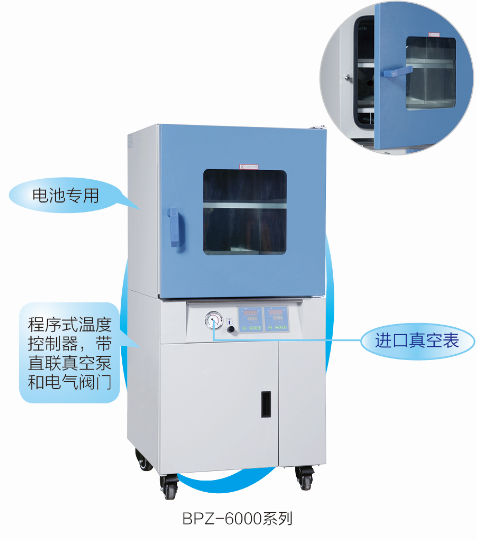

● The working room is made of stainless steel plate, ensuring that the product is durable and easy to clean.
● Rectangular vacuum chamber, so that the effective volume utilization rate is large, and the space can be fully utilized.
● The elastic double-layer tempered glass door observes the objects in the workshop at a glance.
● The door closure is adjustable and the synthetic silicone rubber door is sealed to ensure a high vacuum degree in the box.
● Add over-temperature protection temperature control port to effectively prevent safety problems such as temperature runaway. (Optional)
● Low-noise professional Vacuum Pump, stable and reliable vacuum control. (With "B" for high-quality brand Vacuum Pump)
◆Program control (optional)
● Program control operation, heating, vacuum holding, and nitrogen holding time can be set according to process requirements to ensure consistency in baking each batch and minimize product baking variability.
Optional parts:(Increase the delivery time of optional parts by 7 days)
1. Inert gas inlet valve
2. Liquid water filter (priced according to specifications and models, suitable for high humidity drying)
3. Drying tank
4. Optional exhaust oil filtration device (it is recommended to replace it once every 6 months)
YiHeng BPZ-6213 Vacuum ovenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~200C |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Inner chamber materials | Stainless steel 304 (1Cr~ 18Ni9Ti) |
| Interior size W * D * H | 540x575x635 |
| Environmental temperature | +5~40℃ |
| shelves (max) | 3 pieces (independent temperature control) |
| Vacuum meter | mechanical pointer |
| vacuum | 133Pa |
| Input Power | 2100W |
| Power supply Voltage | AC220V 50HZ |
| Dimensions W * D * H | 720x740x1530 |
| Note | Remarks: The performance parameters are tested under no-load conditions: Environmental temperature 20 ° C, Environmental humidity 50% RH 1. With "B" is a high-quality brand vacuum pump. 2. BPZ series Vacuum oven with vacuum pump and drying tank |
YiHeng BPZ-6213 Vacuum oven Packing list
Drying oven × 1, trial manual × 1, packing list × 1, warranty × 1, warranty card × 1, fuse × 2, vacuum connecting tube × 1, shelf, wrench × 2
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
