LEICI STIP-scan DZS-708L-05 PH/Conductivity Detector/ion/dissolved oxygen four modules set

Introduction

Thunder Magnetic Water Quality Detector DZS-708L-05 is the host and PH module, conductivity module, ion module, dissolved oxygen module four modulescombinationThe kit can realize the four functions of PH meter, conductivity meter, Ion Meter and dissolved oxygen Detector at the same time, one machine is multi-purpose, with super data management function, intelligent operating system, batch measurement, 3 different reading modes and other functions, powerful and stable and reliable measurement.Water Quality Tester DZS-708L-05 is a desktop, large liquid crystal digital display multi-parameter Water Quality Analyzer, and can measure temperature.

Features and advantages

1. Modular design, 4 kinds of modules are plug and play, and can be combined at will.

◆ Four channels can be selected, automatically identify different channels, plug and play;

◆ Including PX measurement unit, ORP measurement unit, conductivity measurement unit, dissolved oxygen measurement unit and other measurement modules, any combination of modules;

◆ Support Celsius °C or Fahrenheit °F temperature display mode;

◆ U disk can be hot-swappable, and U disk can be used for firmware upgrade.

2. 3 reading modes, easy to read

◆ Smart-Read function (balance measurement mode): provide "fast, medium and strict" three balance conditions to choose, and support "custom" to set the balance conditions, easy to read.

◆ Timed-Read function (timed measurement mode): There are two timed reading modes, including timed stop measurement and timed automatic interval measurement.

◆ Cont-Read function (continuous measurement mode): Through this function, you can understand the process of continuous change of measurement.

3. Intelligent operating system, navigation menu operation, good user experience

◆ User management: It can support 8 user login passwords to realize the management of user ID and password.

◆ Safety management: self-diagnosis and power-off protection function.

◆ Electrode management: electrode ID management (5 electrodes for each type, 20 sets of data for each electrode), recording electrode calibration history, and reminding electrode life.

◆ Calibration management: automatically buffered solution, PX measurement module supports 6-point calibration; Calibration edits are supported, such as deleting, adding calibration points, and calibration speed.

◆ Interface Management:Water quality Tester DZS-708L-05You can create shortcuts, and there are multiple ways to enter the start measurement interface; The display is 7-inch color and supports backlight setting adjustment, which can be used in laboratories with different conditions.

4. Powerful data management function, in line with GLP specifications, traceable and complete information

◆ Data inquiry: The storage data can be checked according to the storage number, storage time, operator ID, method name, measurement sample ID, electrode ID, etc., and the results of the query can be displayed in the form of curves.

◆ Statistics:Water quality Tester DZS-708L-05It supports statistics, analysis, and comparison of measurement data.

◆ Data storage: Massive storage, the storage capacity of measurement results of each measurement module is not less than 1000 sets.

◆ Data Output:Water quality Tester DZS-708L-05There are RS-232 and USB interfaces, which can support U flash memory; Users can compile printout requirements, and there are three output methods: GLP format, standard format, and user-defined format.

◆ Data input: Able to read U disk to store measurement data.

5. It can be measured in batches and can be connected to an autosampler

◆ It can be connected to SCH-01 autosampler, which can realize automatic measurement of multiple samples and automatic calibration of PH electrode

◆ Real-time display of test methods, measurement curves, measurement results, dynamic display of measurement curves

◆ Support for viewing, creating, copying, editing, and deleting measurement methods

◆ Key input mode:Characters and numbers

Applications

Water quality Detector DZS-708L-05 is suitable for aquaculture, environmental protection, water quality analysis, disease control, scientific research universities and other fields.

Introduction to functional modules

1. PX module

1) It has a standard group management function, allowing users to create their own pH standards

2) pH calibration, support automatic identification of 25 kinds of pH buffer solutions, such as GB, DIN, NIST, etc., calibrate up to 6 points

3) A variety of commonly used ion modes are provided randomly, such as H+, Ag+, Na+, K+, NH4+, Cl-, F-, NO3-, BF4-, CN-, Cu2+, Pb2+, Ca2+, etc., and can be customized by users

4) It has a standard group management function, allowing users to create their own standard solutions

5) Support direct reading concentration measurement method, standard addition measurement method, sample addition measurement method, and GRAN measurement method

6) A variety of measurement units are available: pX, mol/L, mmol/L, g/L, mg/L, ug/L

7) Support calibration editing such as deleting and adding calibration points, ultra-fast calibration speed

2. Conductivity module

1) Conductivity correction, up to 5 points of correction

2) Automatically identify 4 kinds of JJG standard conductivity standard fluids

3) There are two salinity compensation methods, such as actual salinity compensation and seawater salinity compensation

4) There are three conductivity temperature compensation methods, such as pure water compensation, linear compensation, and non-compensation

3. Dissolved oxygen module

1) Support zero oxygen and full calibration;

2) Support automatic compensation of temperature and atmospheric pressure

3) Support self-stirring dissolved oxygen electrode, easy to use

4) i-EXTD intelligent frequency conversion function, automatic temperature compensation, automatic calibration, automatic quantity

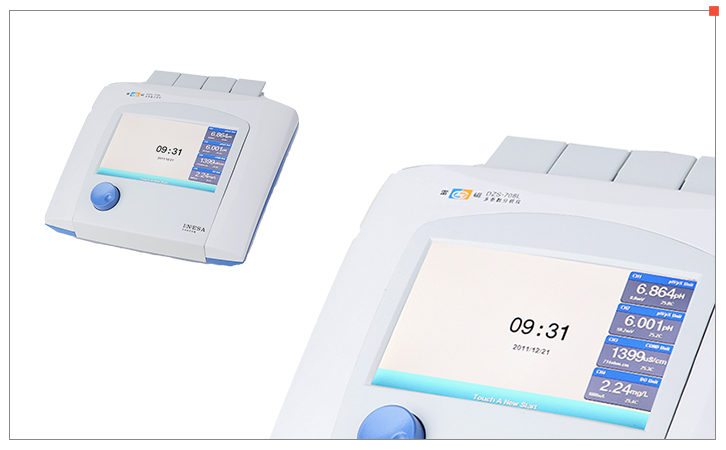

Actual picture of the product

DZS-708L host x1, PH module x1, Conductivity detector module x1, ion module x1, dissolved oxygen module x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
