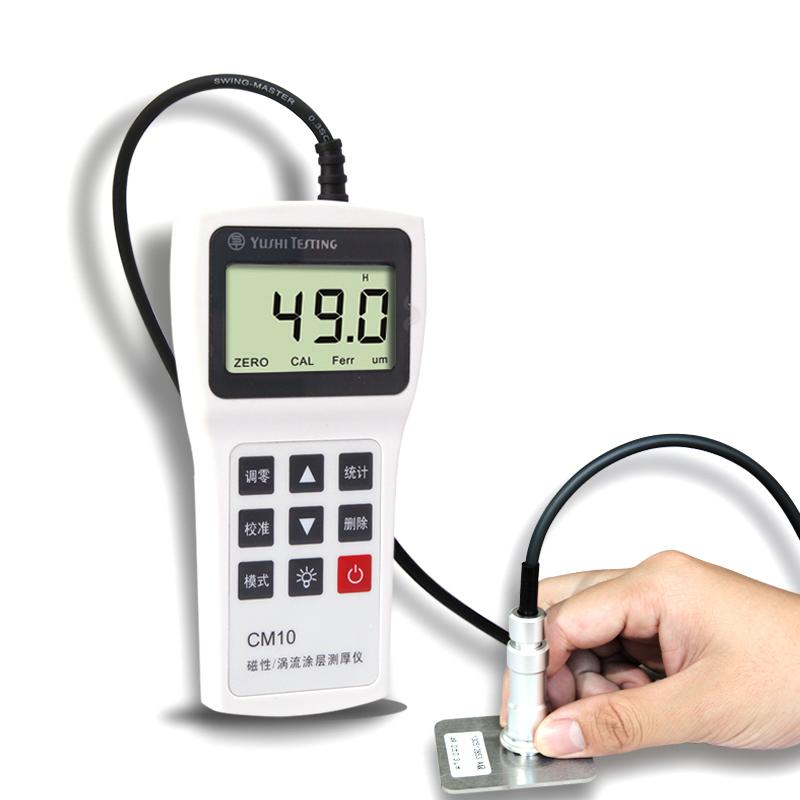

YUSHINDT CM10N platings Thickness Gauge
YUSHINDT CM10N coating platings Thickness Gauge adopts eddy current principle, which can measure nonconductive coatings on nonmagnetic metals, such as aluminum and copper
yushindt
CM10N
-
DUBAN DB20-CM211S Split type coating Thickness Gauge, with wire paint film Thickness Gauge
$ 407.00 -
Defelsko PosiTector 6000 FRS3 Coating Thickness Gauge 90 ° probe
$ 1525.00 -
Qnix NFe5mm eddy Current Thickness Probe 5000 μm
$ 1003.00 -
AMITTARI AC-990u paints Thickness Gauge, dual function, thickness measurement range 0~500μm
$ 233.00 -
Defelsko PosiTector 6000 F45S3 Film Thickness Gauge 45 ° micro probe
$ 1769.00
Applications: Widely used in electronics, power plants, petrochemical, aviation, construction and other fields. For example, it is suitable for magnetic metal surface painting, automobile surface painting, magnetic metal surface plating (door handle), etc.
Brief Introduction: Eddy current principle, which measures non-conductive coatings on non-magnetic metals, such as paint on aluminum and copper
Principle:
Magnetic induction principle (Fe): Measure the thickness of non-magnetic coating layers on ferromagnetic metal substrates such as steel and iron, such as paint layer (automobile surface painting), various anti-corrosion coatings, coatings, powder coatings, plastics, rubber, synthetic materials, phosphate layers, chromium, zinc, lead, aluminum, tin, cadmium, etc.
yushindt CM10N Coated platings Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | eddy Current |
| Measurement range | 0~2000μm |
| margin of error | ±2% |
| resolution | 0.1μm |
| Minimum measurement surface | Φ20mm |
| Minimum radius of curvature | Convex 5mm |
| thinnest substrate | 0.3mm |
| Calibrated mode | One point calibrated, two point calibrated |
| statistical function | Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation |
| Power Supply | Two 1.5V AA batteries, when the battery is low, there is a low Voltage prompt |
| Display screen | High contrast ratio LCD screen (LED backlight) |
| Operating temperature | -10~50℃ |
| Voltage prompt | Yes. |
| Battery life | Use time is greater than 35h |
| Weight | 200G (including battery) |
| Dimension | 149*73*32mm |
yushindt CM10N Coated platings Thickness Gauge Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
