        Elcometer Elcometer 4360/9 Threaded rod Film Applicator

        UK Elcometer 4360/9 threaded rod Film Applicator 30μm/250mm

        The Elcometer 4360/9 threaded rod Film Applicator is a No. 9 wire rod Applicator rod, which can be coated with 30 µm wet-film Coating thickness. The threaded rod Film Applicator rod width is 250mm using stainless steel wire-wound process.

        Brand
        SKU: NB012075
        United Kingdom Elcometer
        Get Quote
        VS
        ElcometerLOGO

        Elcometer shop

        Information
        Datasheet Catalog
        What else did others buy
        Genuinegoods

        • Elcometer Elcometer 4360/9 Threaded rod Film ApplicatorOverview

        • Specifications
        • Comments
        • FAQs
        Elcometer 4360/9
        Threaded rod Film Applicator

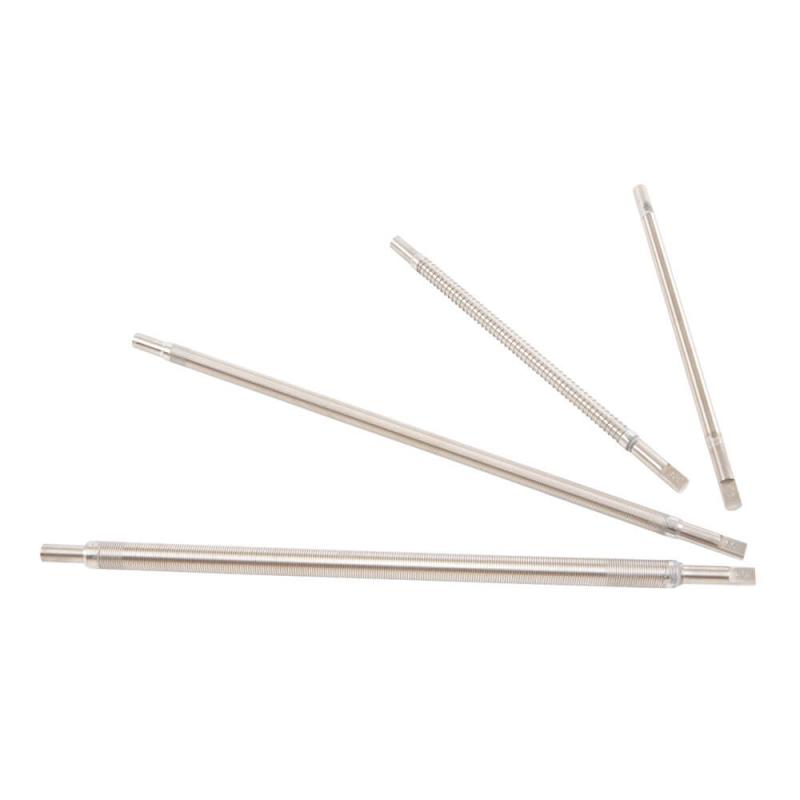

        Made of stainless steel with stainless steel wire wound around the cylindrical bar. These threaded coating rods are used to coat the film to a predetermined thickness and have high leveling properties.

        • Wire diameters vary and can be coated in a variety of thicknesses, ranging from 4 to 500 μm (0.157 to 19.685 mils).

        • Available in 2 standard rod widths: 140 mm (5.5") or 250 mm (9.8"), the user can select the correct coating width based on substrate condition or piece width. Other widths are available to order.

        Suitable for use with the Elcometer 4340 Electric Film Applicator.

        Elcometer threaded rod applicator from Elcometer, UK

        Bar width 140mm (5.5")Bar width 250mm (9.8")
        Part numberModelCoating thickness
        		Part numberModelCoating thickness


        		µmmils

        		µmmils
        K0004361P001Elcometer 4361/140.157K0004360P001Elcometer 4360/140.157
        K0004361P002Elcometer 4361/260.236K0004360P002Elcometer 4360/260.236
        K0004361P003Elcometer 4361/380.315K0004360P003Elcometer 4360/380.315
        K0004361P004Elcometer 4361/4100.393K0004360P004Elcometer 4360/4100.393
        K0004361P005Elcometer 4361/5120.472K0004360P005Elcometer 4360/5120.472
        K0004361P006Elcometer 4361/6160.630K0004360P006Elcometer 4360/6160.630
        K0004361P007Elcometer 4361/7200.787K0004360P007Elcometer 4360/7200.787
        K0004361P008Elcometer 4361/8261.024K0004360P008Elcometer 4360/8261.024
        K0004361P009Elcometer 4361/9301.181K0004360P009Elcometer 4360/9301.181
        K0004361P010Elcometer 4361/10341.338K0004360P010Elcometer 4360/10341.338
        K0004361P011Elcometer 4361/11381.496K0004360P011Elcometer 4360/11381.496
        K0004361P012Elcometer 4361/12401.574K0004360P012Elcometer 4360/12401.574
        K0004361P013Elcometer 4361/13461.811K0004360P013Elcometer 4360/13461.811
        K0004361P014Elcometer 4361/14501.968K0004360P014Elcometer 4360/14501.968
        K0004361P015Elcometer 4361/15562.205K0004360P015Elcometer 4360/15562.205
        K0004361P016Elcometer 4361/16602.362K0004360P016Elcometer 4360/16602.362
        K0004361P017Elcometer 4361/17662.598K0004360P017Elcometer 4360/17662.598
        K0004361P018Elcometer 4361/18702.755K0004360P018Elcometer 4360/18702.755
        K0004361P019Elcometer 4361/19762.992K0004360P019Elcometer 4360/19762.992
        K0004361P020Elcometer 4361/20803.149K0004360P020Elcometer 4360/20803.149
        K0004361P021Elcometer 4361/21903.543K0004360P021Elcometer 4360/21903.543
        K0004361P022Elcometer 4361/221003.937K0004360P022Elcometer 4360/221003.937
        K0004361P023Elcometer 4361/231104.330K0004360P023Elcometer 4360/231104.330
        K0004361P024Elcometer 4361/241204.724K0004360P024Elcometer 4360/241204.724
        K0004361P025Elcometer 4361/251305.118K0004360P025Elcometer 4360/251305.118
        K0004361P026Elcometer 4361/261405.511K0004360P026Elcometer 4360/261405.511
        K0004361P027Elcometer 4361/271505.905K0004360P027Elcometer 4360/271505.905
        K0004361P029Elcometer 4361/291756.890K0004360P029Elcometer 4360/281756.890
        K0004361P030Elcometer 4361/302007.874K0004360P030Elcometer 4360/302007.874
        K0004361P031Elcometer 4361/3130011.811K0004360P031Elcometer 4360/3130011.811
        K0004361P032Elcometer 4361/3240015.748K0004360P032Elcometer 4360/3240015.748
        K0004361P033Elcometer 4361/3350019.685K0004360P033Elcometer 4360/3350019.685

        Optional

        Wire rod cleaning machine

        实验室自动涂膜机

        涂膜测试卡纸RK压印床

        Note: Click on the accessory image to view the product details.

        VS

        Elcometer Elcometer 4360/9 Threaded rod Film ApplicatorSpecifications

        LIST VALUE
        Production process wire-wound
        WFT 30μm
        application width 250mm
        material stainless steel
        standard ASTM D 4147

        Elcometer Elcometer 4360/9 Threaded rod Film Applicator Packing list

        Wire rod x1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        Is the price listed on the website the final cost for overseas purchases?
        [A]
        No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
        [Q]
        What is the specific process for purchasing the product?
        [A]
        First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
        [Q]
        What should I do if the instrument I purchase needs repair?
        [A]
        After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
