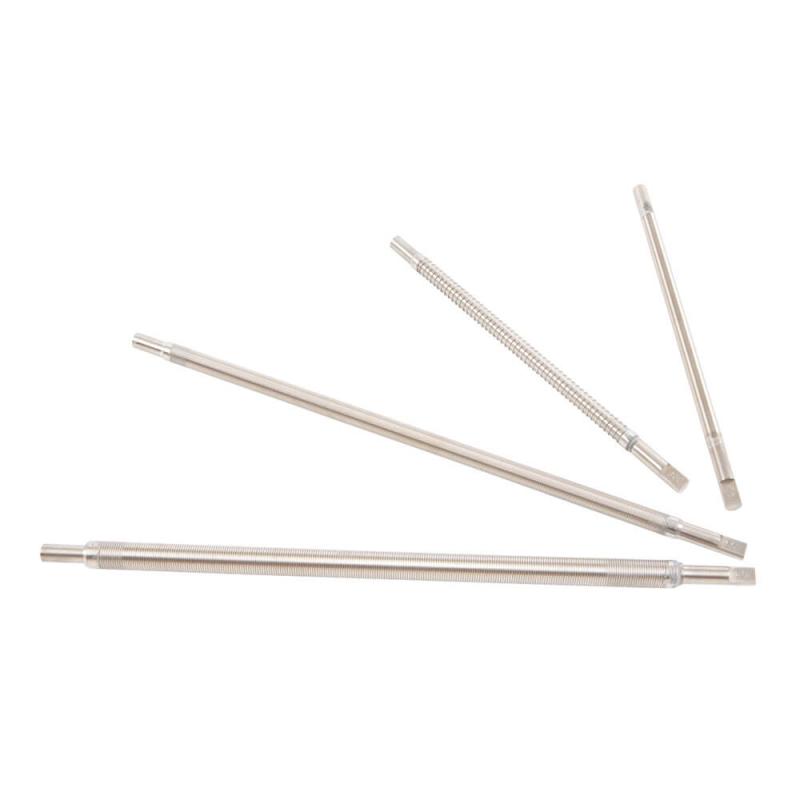

UK Elcometer 4360/10 threaded rod Film Applicator 34μm/250mm
The Elcometer 4360/10 threaded rod Film Applicator is a 10 gauge wire rod Applicator rod that can be coated with a wet-film Coating thickness of 34 µm. The threaded rod Film Applicator rod is 250mm wide and uses a stainless steel wire-wound process.
Elcometer
Elcometer 4360/10
-
Japan OSP-35/60 Applicator rod WFT 35μm length 60mm
$ 115.00 -
Coating Proofing rod 40μm Printing Proofing rod Stainless steel Coloring Applicator rod
$ 95.00 -
Japan OSP-20/250 Spreader coating bar Applicator rod 20μm Length 250mm
$ 152.00 -
CHINA ASP bar Applicator rod 400μm film thickness Film Applicator
$ 133.00 -
RDS 55 #1/4 "Mayer Rods film thickness 125.7μm rod diameter 6.35mm
$ 155.00
Made of stainless steel with stainless steel wire wound around the cylindrical bar. These threaded coating rods are used to coat the film to a predetermined thickness and have high leveling properties.
Wire diameters vary and can be coated in a variety of thicknesses, ranging from 4 to 500 μm (0.157 to 19.685 mils).
Available in 2 standard rod widths: 140 mm (5.5") or 250 mm (9.8"), the user can select the correct coating width based on substrate condition or piece width. Other widths are available to order.
Suitable for use with the Elcometer 4340 Electric Film Applicator.
| Bar width 140mm (5.5") | Bar width 250mm (9.8") | ||||||
| Part number | Model | Coating thickness | Part number | Model | Coating thickness | ||
| µm | mils | µm | mils | ||||
| K0004361P001 | Elcometer 4361/1 | 4 | 0.157 | K0004360P001 | Elcometer 4360/1 | 4 | 0.157 |
| K0004361P002 | Elcometer 4361/2 | 6 | 0.236 | K0004360P002 | Elcometer 4360/2 | 6 | 0.236 |
| K0004361P003 | Elcometer 4361/3 | 8 | 0.315 | K0004360P003 | Elcometer 4360/3 | 8 | 0.315 |
| K0004361P004 | Elcometer 4361/4 | 10 | 0.393 | K0004360P004 | Elcometer 4360/4 | 10 | 0.393 |
| K0004361P005 | Elcometer 4361/5 | 12 | 0.472 | K0004360P005 | Elcometer 4360/5 | 12 | 0.472 |
| K0004361P006 | Elcometer 4361/6 | 16 | 0.630 | K0004360P006 | Elcometer 4360/6 | 16 | 0.630 |
| K0004361P007 | Elcometer 4361/7 | 20 | 0.787 | K0004360P007 | Elcometer 4360/7 | 20 | 0.787 |
| K0004361P008 | Elcometer 4361/8 | 26 | 1.024 | K0004360P008 | Elcometer 4360/8 | 26 | 1.024 |
| K0004361P009 | Elcometer 4361/9 | 30 | 1.181 | K0004360P009 | Elcometer 4360/9 | 30 | 1.181 |
| K0004361P010 | Elcometer 4361/10 | 34 | 1.338 | K0004360P010 | Elcometer 4360/10 | 34 | 1.338 |
| K0004361P011 | Elcometer 4361/11 | 38 | 1.496 | K0004360P011 | Elcometer 4360/11 | 38 | 1.496 |
| K0004361P012 | Elcometer 4361/12 | 40 | 1.574 | K0004360P012 | Elcometer 4360/12 | 40 | 1.574 |
| K0004361P013 | Elcometer 4361/13 | 46 | 1.811 | K0004360P013 | Elcometer 4360/13 | 46 | 1.811 |
| K0004361P014 | Elcometer 4361/14 | 50 | 1.968 | K0004360P014 | Elcometer 4360/14 | 50 | 1.968 |
| K0004361P015 | Elcometer 4361/15 | 56 | 2.205 | K0004360P015 | Elcometer 4360/15 | 56 | 2.205 |
| K0004361P016 | Elcometer 4361/16 | 60 | 2.362 | K0004360P016 | Elcometer 4360/16 | 60 | 2.362 |
| K0004361P017 | Elcometer 4361/17 | 66 | 2.598 | K0004360P017 | Elcometer 4360/17 | 66 | 2.598 |
| K0004361P018 | Elcometer 4361/18 | 70 | 2.755 | K0004360P018 | Elcometer 4360/18 | 70 | 2.755 |
| K0004361P019 | Elcometer 4361/19 | 76 | 2.992 | K0004360P019 | Elcometer 4360/19 | 76 | 2.992 |
| K0004361P020 | Elcometer 4361/20 | 80 | 3.149 | K0004360P020 | Elcometer 4360/20 | 80 | 3.149 |
| K0004361P021 | Elcometer 4361/21 | 90 | 3.543 | K0004360P021 | Elcometer 4360/21 | 90 | 3.543 |
| K0004361P022 | Elcometer 4361/22 | 100 | 3.937 | K0004360P022 | Elcometer 4360/22 | 100 | 3.937 |
| K0004361P023 | Elcometer 4361/23 | 110 | 4.330 | K0004360P023 | Elcometer 4360/23 | 110 | 4.330 |
| K0004361P024 | Elcometer 4361/24 | 120 | 4.724 | K0004360P024 | Elcometer 4360/24 | 120 | 4.724 |
| K0004361P025 | Elcometer 4361/25 | 130 | 5.118 | K0004360P025 | Elcometer 4360/25 | 130 | 5.118 |
| K0004361P026 | Elcometer 4361/26 | 140 | 5.511 | K0004360P026 | Elcometer 4360/26 | 140 | 5.511 |
| K0004361P027 | Elcometer 4361/27 | 150 | 5.905 | K0004360P027 | Elcometer 4360/27 | 150 | 5.905 |
| K0004361P029 | Elcometer 4361/29 | 175 | 6.890 | K0004360P029 | Elcometer 4360/28 | 175 | 6.890 |
| K0004361P030 | Elcometer 4361/30 | 200 | 7.874 | K0004360P030 | Elcometer 4360/30 | 200 | 7.874 |
| K0004361P031 | Elcometer 4361/31 | 300 | 11.811 | K0004360P031 | Elcometer 4360/31 | 300 | 11.811 |
| K0004361P032 | Elcometer 4361/32 | 400 | 15.748 | K0004360P032 | Elcometer 4360/32 | 400 | 15.748 |
| K0004361P033 | Elcometer 4361/33 | 500 | 19.685 | K0004360P033 | Elcometer 4360/33 | 500 | 19.685 |
Optional
|
|
|
Elcometer Elcometer 4360/10 Threaded rod Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Production process | wire-wound |
| WFT | 34μm |
| application width | 250mm |
| material | stainless steel |
| standard | ASTM D 4147 |
Elcometer Elcometer 4360/10 Threaded rod Film Applicator Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
