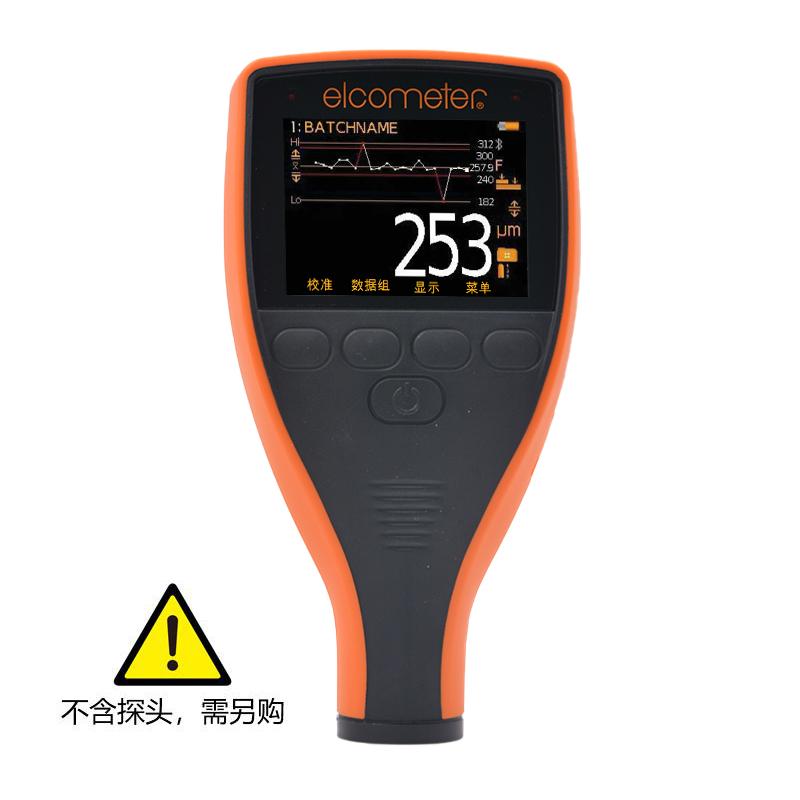

UK Elcometer 456 A456CFSS split Film Thickness Gauge (standard type)

The Elcometer 456 is available in 3 types: B (Basic), S (Standard) and T (Advanced), from the original Elcometer Model 456B to the current Model 456T. In addition, it is also divided into integral and split Thickness Gauges.

MonolithicThickness GaugeSuitable for one-handed operation, as the large contact surface of the "bigfoot probe" provides better stability during measurements, allowing the user to obtain consistent, repeatable and accurate results.

Split Thickness Gauges are available in a variety of transducers (transducers sold separately) for greater measurement mobility.

Elcometer 456 A456CFSS Paint Thickness Gauge is a standard split magnetic coating Thickness Gauge with a Thickness Gauge range of 0~30mm.

Features

Simple and easy to use

• The large buttons make it easy to operate even when wearing gloves

• Multi-language menu settings

• High-contrast color LCD with auto-rotation function

• High-low limit indication signs

• Factory calibrated and ready to use out of the box

Accurate readings

• Measurement accuracy±1~3%

• It can be used in accordance with a number of national and international standards

• Thermal stability measurements

• Improves resolution readings for thin coatings

• Accurate measurement on smooth, rough, thin surfaces as well as curved surfaces

Reliable measurements

• High reproducibility and reproducibility

• 2-year console warranty

• A full set of traceable inspection certificates are available

• Date and time stamping function for data combination

 sturdy

• Sealed, durable, and impact-resistant

• Dustproof and waterproof, the degree of protection is equivalent to IP64

• The display is highly scratch and solvent resistant

• The instrument and probe construction is durable

• Suitable for use in harsh environments

effective

• Fast reading: 70+/min with ultrasound/scanning probe: 140+/min

• Multi-calibration memory

• Array of letters identifies

• User-selectable calibration method

• with ElcoMaster^®and ElcoMaster^®Mobile app compatible

Powerful

• A variety of probes are interchangeable

• USB interface

• Bluetooth^®Data output to an iPhone* or Android™ device (Standard and Premium available)

• It can be divided into 2,500 groups to store 150,000 pieces of data

• Capable of measuring coatings up to 31 mm thick on metal substrates

Compliance with formal quality system certifications, such as ISO 9001, requires instruments to properly control, record, and calibrate data. Users require that the measurement data of the instrument should be traceable to various national standards. A variety of nominal values and certificated diaphragms are available, along with the zeroing plate, to ensure the accuracy of these instruments.

Large screen display, easy to read, the unit is metric and imperial	Up to 8 statistics are displayed on the screen, and the statistics content is user-selectable	The on-screen trend graph shows the last 20 measurements
Replay of readings from individual batches in numerical or graphical form (Advanced)	A wide range of probes (sold separately) are available for a wide range of applications	The 2.4" color display allows users to see the data more clearly from all angles

ElcoMaster Data Management Software Features

ElcoMaster® can help you review your data and generate professional reports quickly and easily. Built-in wizards guide you every step of the way, from connecting the instrument to generating reports.

1. Using the ElcoMaster® Software Wizard, connect to the Elcometer (Bluetooth or USB).Downloading data is quick and easy.

2、ElcoMaster® is able to download from any easyMeasurement results of all inspections of the high instrument.

3、Data can be stored by project and detection typeA simple file tree. The data is clearDisplayed in the table

4. Using ElcoMaster's® built-in report design, readings are OKQuickly display on images or drawings.

5、Readings from different Elcometer instruments can be printed in the same report– and can be quickly inserted into standard reports.

6. Applicable to cloud computing.

ELCOMETER Elcometer456 host x1, wristband x1, protective case x1, screen saver x1, AA battery x1, operation manual x1, USB cable x1, ELCOMETER software x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
