Leeb242 (N1) Coating Thickness Gauge can print measurement data

Introduction to Leeb242(N1) Coating Thickness Gauge

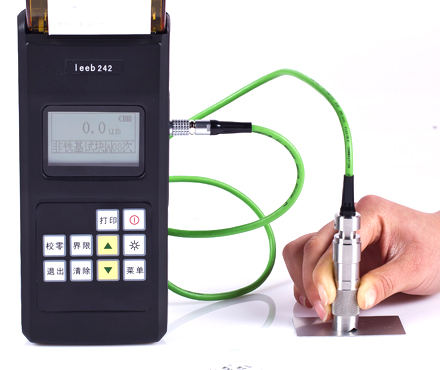

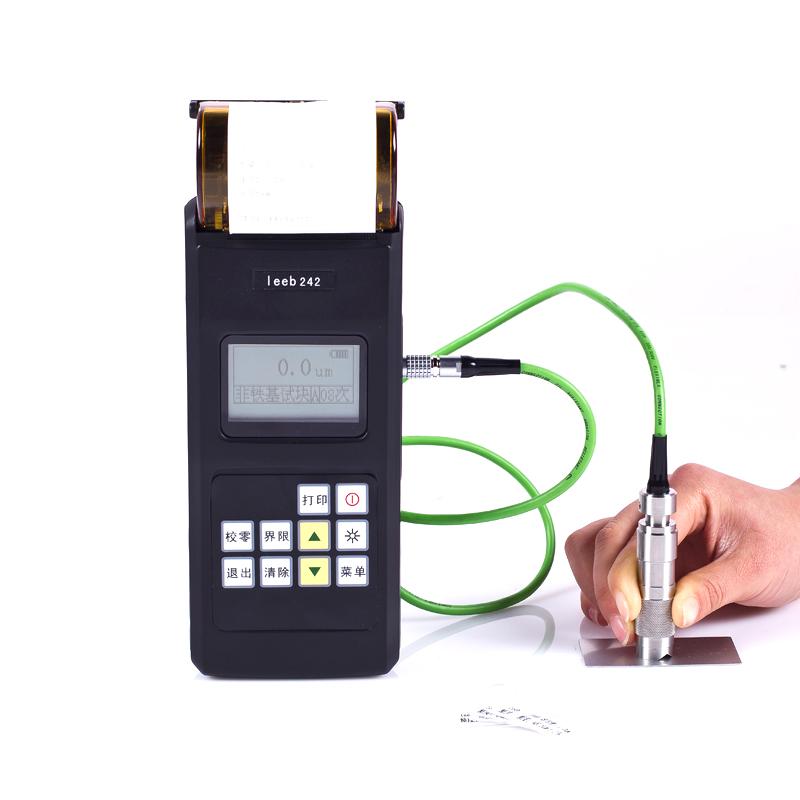

Leeb 242 coating Thickness Gauge is a split-type Thickness Gauge with a black shell, which can be equipped with different probes to measure the thickness of different substrate coatings. The thickness measurement range is 0~1250 microns, and the readings are intuitive through the large-screen LCD display. Leeb242 coating Thickness Gauge is a portable coating Thickness Gauge, not only suitable for laboratories, but also suitable for non-destructive testing on the engineering site. It is the required coating thickness testing instrument. The leeb242 coating Thickness Gauge has a printing function, and the printed data includes: testing time, probe model, Operating Mode, measuring mode, workpiece, and unit.

Libo leeb242 (N1) coating Thickness Gauge is an eddy current coating Thickness Gauge equipped with an N1 probe.

Applications

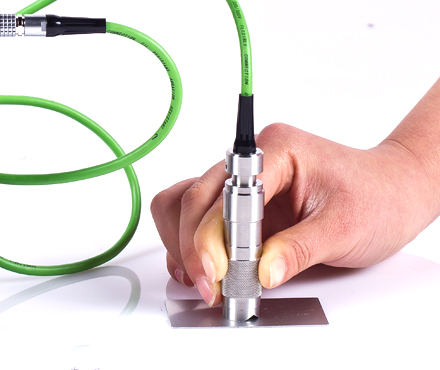

Leeb242(N1) Coating Thickness Gauge can non-destructively detect the thickness of non-conductive insulating coatings on non-magnetic metal substrates (such as rubber, plastic, paint, oxide film on aluminum, copper, zinc, tin, etc.).

Application

Leeb242(N1) coating Thickness Gauge is suitable for aerospace, aviation,electroplating, anti-corrosion, chemical industry, automobile, shipbuilding, light industry, commodity inspection and other fields.

Features and advantages

1. Automatic calibration of zero point, system error can be corrected;

2. Voltage prompt, automatic shutdown;

3. Two-point calibration can improve the accuracy.

4. Large-screen LCD backlight display, adjustable contrast;

5. The coating Thickness Gauge leeb242 can set the upper and lower limits to alarm.

Pictures

Host x1, Probe x1, Standard Specimen x1, Base x1, Power Adapter x1, Printing Paper x1, Certificate x1, Manual x1, Outer Encasement Box x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
