Introduction
The original non-destructive dry Film Thickness Gauge, the Elcometer 101, was the world's first portable coating Thickness Gauge and was produced in 1947.
Features
1. It has the function of reading holding
2. Accuracy ±10%
3. Suitable for dangerous places
4. Insensitive to cold and hot surfaces – suitable for hot metal jet coatings

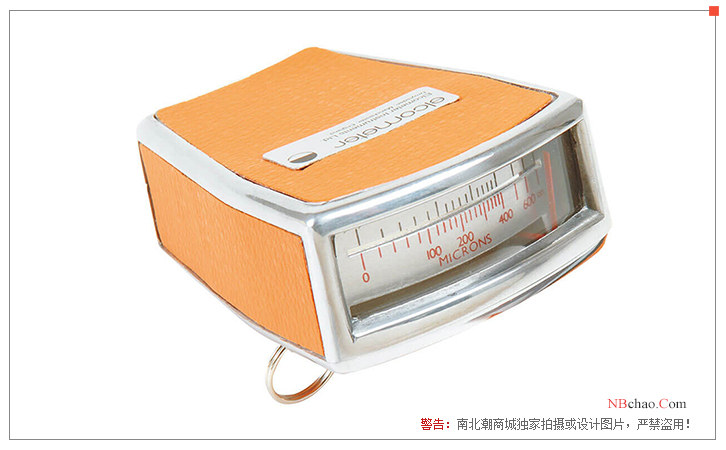

Display diagram

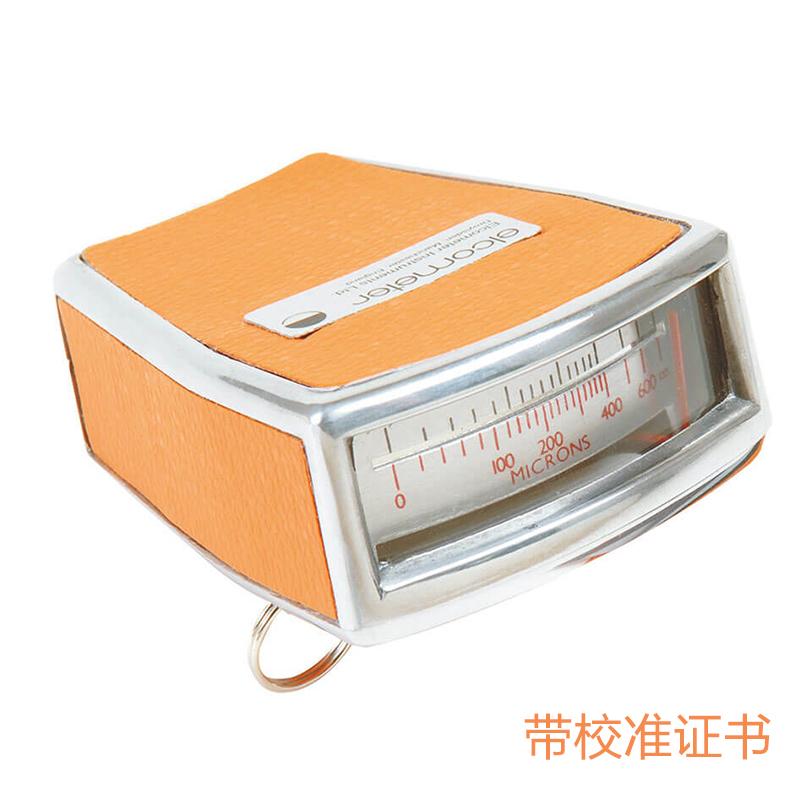

Elcometer QCA101A-01A Coating Thickness Gauge (calibrated certificate)Specifications
| LIST | VALUE |
|---|---|
| Measurement principle | mechanical |
| Measurement range | 0~600µm |
| margin of error | +/- 10% of the reading/2.5μm (0.1mil), whichever is greater |
| Minimum measurement surface | Φ25mm |
| Calibrated Certificate | With calibrated Certificate |
| Display screen | Ruler scale |
| operation surface | 90 ° to the substrate |
| Minimum measurement surface | 38*15mm |
Elcometer QCA101A-01A Coating Thickness Gauge (calibrated certificate) Packing list
Calibrated certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
