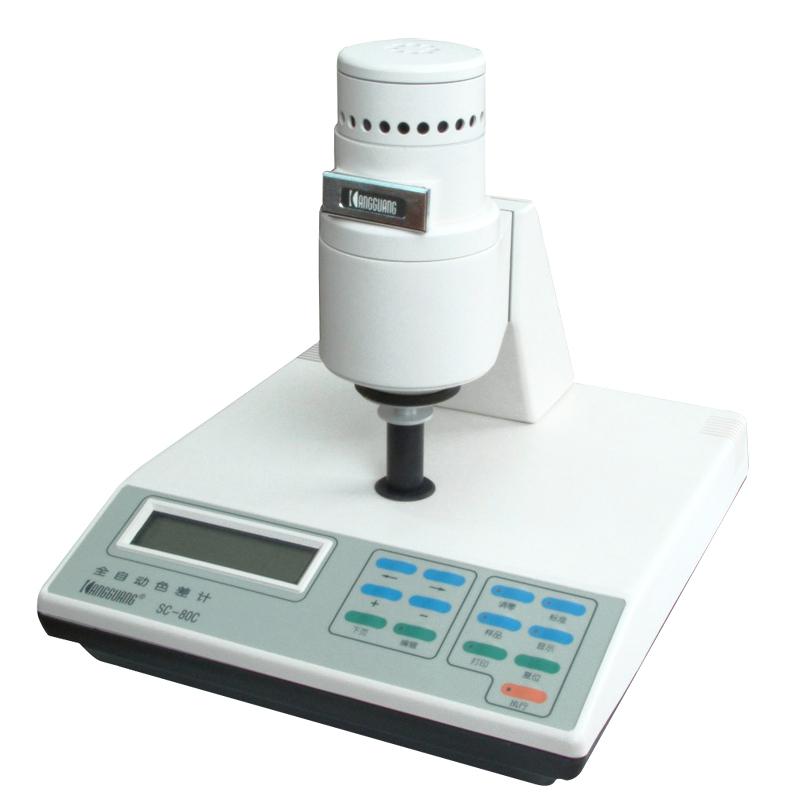

KANGGUANG SC-80C automatic Colorimeter desktop color reader

The instrument is verified according to the measurement regulations of JJG595-89 color measurement and Colorimeter.

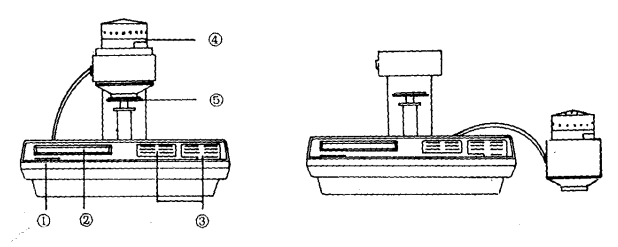

Instrument Structure Diagram

①Main unit ②LCD display ③Operation keyboard ④Optical test head ⑤Reflective sample test bench

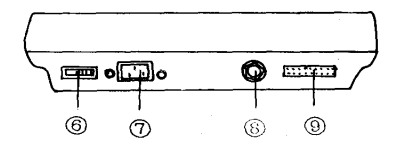

  ⑥Power switch ⑦Power cord socket ⑧Fuse ⑨Printer and communication interface

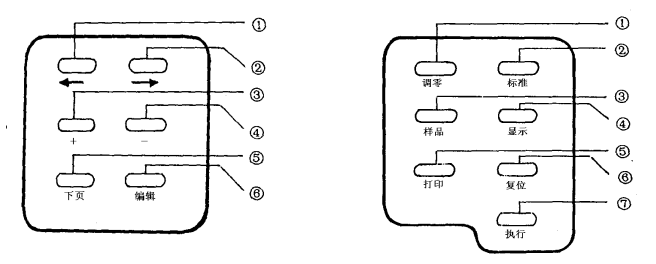

Operation panel illustration

①LCD display ②Operation button part ③Edit button part

1. Edit key part: It consists of six keys, whose function is to modify various parameters set by the user and input new parameters.

(1) ← key: the cursor moves to the left, used to move the digit to be modified when editing data.

(2) → key: the cursor moves to the right, used to move the digit to be modified when editing data.

(3) + Increase key: Add one to the modified value.

(4) - Decrease key: Decrease the modified value by one.

(5) Next page turning key: display the content of the next screen (page).

(6) Edit key: enter into the edit or exit the edit part.

2. Operation key part: It is composed of seven keys, and its function is to operate the instrument for zero adjustment, white adjustment, measurement, display, and printout of measurement results. See Figure 5.

(1) Zero adjustment-Zero adjustment key: Press this key to enter the zero adjustment ready state.

(2) Standard - White key: Press this key to enter the state of preparing for calibration standards (whitening).

(3) Sample - test key: press this key, the instrument enters the state of preparing to measure samples.

(4) Display - display key: after sample measurement, press this key to display the measurement result. Press this key continuously to display all the required measurement results.

(5) Print - Print key: After the sample is measured, press this key to print the measurement result and communicate with the computer.

(6) Reset - Reset key: Press this key to confirm that the sample to be measured is the reference sample for color difference comparison. When the instrument is preheating, it can interrupt the preheating and enter the working state.

(7) Execute - Execute key: press this key in the preparation state of zero adjustment, standard calibration (white adjustment), sample measurement, etc. to perform various operations.

Instrument host x1, power cord x1, standard whiteboard x1, Accessories box x1 (light stall x1, light bulb x1, liquid tank x1, black, cylinder image, sample press x1, powder sample box x1) instruction manual x1,

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
