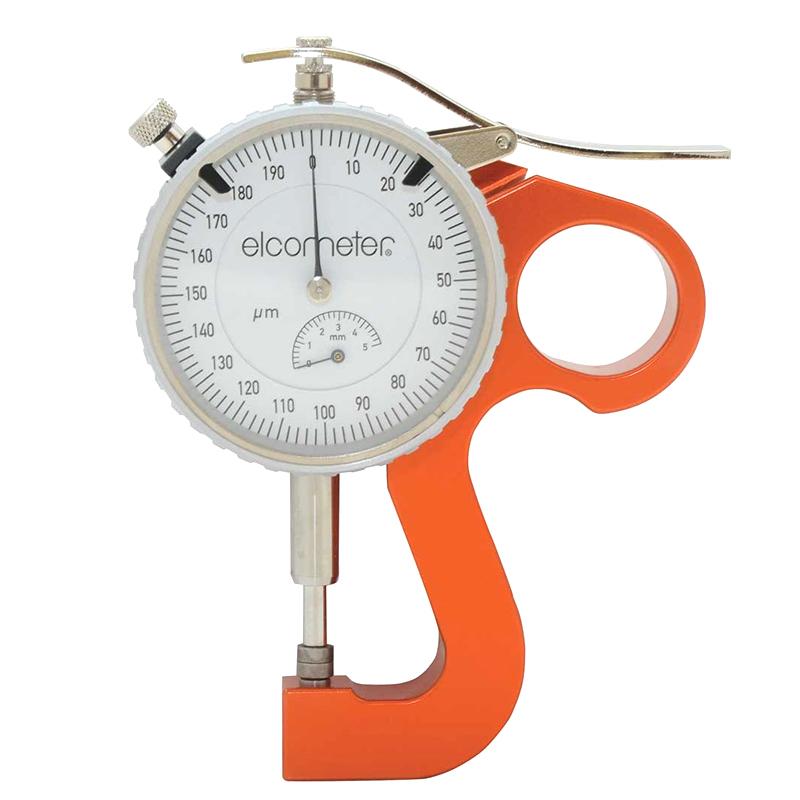

Elcometer 124 E124---3M Thickness Gauge, Metric System
The Elcometer 124 Thickness Gauge E124---3M is a metric Thickness Gauge with a thickness measurement range of 5mm. The Elcometer 124 Thickness Gauge is used to measure the height from the peak to the valley of the surface profile rubbed by the Elcometer 122 Testex replica tape.
Elcometer
E124---3M
-
Qnix Fe3mm magnetic thickness probe 3000μm
$ 739.00 -
Defelsko PosiTector 6000 N45S1 Coating Thickness Gauge Film Thickness Gauge 45 ° miniature probe
$ 1266.00 -
LEEB Leeb231 eddy Current Coating Thickness Gauge Measurement range 0~1250μm
$ 332.00 -
Positector SmartLink wireless connector, a new generation of detection methods
$ 675.00 -
Defelsko PosiTector 6000 FTS1 Steel plate Coating Thickness Gauge Split probe type
$ 1081.00
Introduction
The Elcometer 124 Thickness Gauge is used to measure the height from the peak to the bottom of the surface profile imprinted with the Elcometer 122 Testex replica tape.
Available in metric and imperial versions
Convenient to use express delivery
According to the anvil pressing method required by the standard
Standards compliant
ASTM D 4417-C , BS ISO 8503-5, NACE RP 0287, US Navy NSI 009-32, US Navy PPI 63101-000.
plan
Elcometer E124---3M Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | mechanical |
| Measurement range | 5mm |
| probe | Integrated probe |
| Power Supply | none |
| Standards | ASTM D 4417-C, BS ISO 8503-5, NACE RP 0287, US Navy NSI 009-32, US Navy PPI 63101-000 |
| Calibrated Certificate | none |
| Display screen | Pointer dial |
| Interface | none |
| supporting software | none |
| Machine Weight | 254g |
| Machine size | 120*95*25mm |
| Unit display | metric system |
| Scale resolution | 2µm |
Elcometer E124---3M Thickness Gauge Packing list
Thickness gauge x1, factory certificate x1, instruction manual x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
