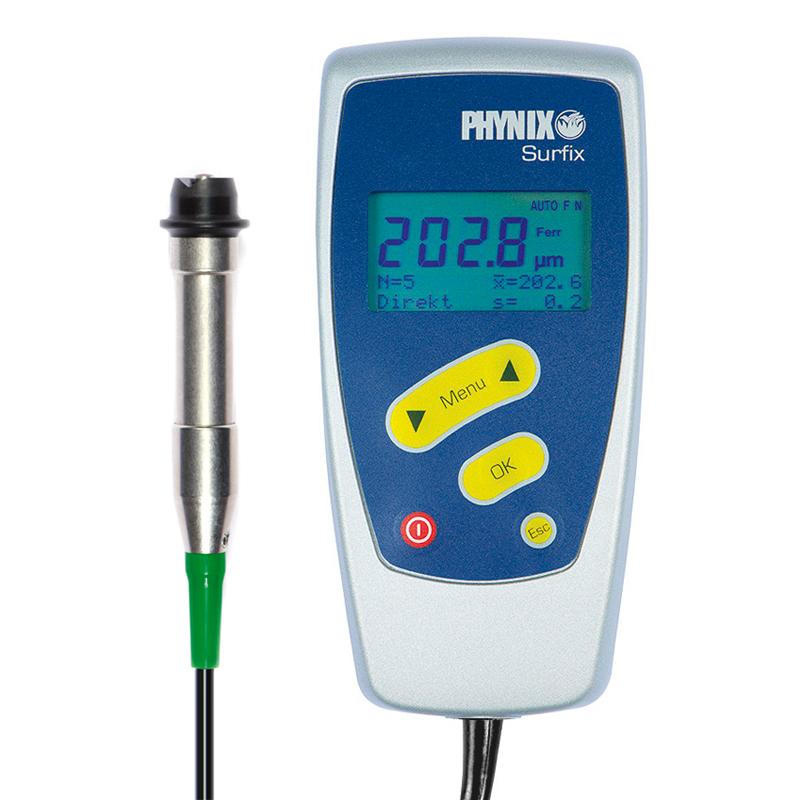

PHYNIX Sur fix ® E - FN basic dual-use Film thickness meter
PHYNIX Surfix ® E - FN basic dual-use Film thickness meter is the basic version of Surfix FN, suitable for users with high cost requirements. Compared with Sufix FN, Sufix B-FN cannot save data, no statistical function, limit value, zero drift, no interface and screen backlight function.
PHYNIX
Surfix®E-FN basic
Surfix SX-FN1.5
-
Defelsko PosiTector 6000 N45S3 Coating Thickness Gauge 45 ° micro probe
$ 1818.00 -
Defelsko PosiTector 6000 FHXS1 Coating Thickness Gauge, hot surface Coating Thickness Gauge
$ 1684.00 -
DONGRU DR13S Anti-corrosion and fireproof Coating Thickness Gauge 100~13000μm
$ 727.00 -
German EPK MiniTest 600 B-N eddy current platings Thickness Gauge, thickness: 0~2000μm
$ 1011.00 -
LANDTEK CM8823 film thickness eddy Current Coating Thickness Gauge
$ 261.00
The PHYNIX Surfix®E-FN basic is the basic version of the Surfix FN for cost-conscious users, the Sufix B-FN does not save data, has no statistics, limit values, zero drift, no interface and no screen backlight compared to Sufix FN.
Application
electroplate
paint
Automotive industry
chemical industry
Aerospace
shipbuilding
Tire manufacturing industry
Specifications
| Principle | Magnetic induction + eddy current |
| Measuring range | 0~1500μm |
| precision | ± (1 μm + 1% m) |
| resolution | 0.1 μm or < 0.2% of the measured value |
| display | No backlight, 4 alphanumeric, height 10 mm (0.4 inches) |
| Calibration method | Factory calibration, zero point calibration, thin film calibration |
| statistics | Number of measurements, average, standard deviation, minimum, maximum |
| Data storage | not |
| interface | not |
| Operating temperature | 0℃~60℃ |
| Surface temperature | -15℃~60℃ |
| Specifications | 137mm*66mm*23mm |
| Probe specifications | ∅14mm*83mm |
| weight | 205g with probe and battery |
| Ingress protection | IP 52 (dust and dripping resistant) |
| standard | DIN, ISO, ASTM, BS |
PHYNIX Surfix®E-FN basic Film thickness MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | 0~1500μm |
| margin of error | ±1% |
| resolution | 0.1μm |
| probe | Line probe |
| Probe size | Φ14*83mm |
| Calibrated mode | Factory calibrated, zero calibrated and film calibrated |
| statistical function | none |
| icon function | none |
| Interface | none |
| Data storage | none |
| Standards | DIN，ISO，ASTM，BS |
| Display screen | 4 alphanumeric characters, height 10 mm (0.4 in) |
| Operating temperature | 0~60℃ |
| Protection level | IP52 |
| Weight | 205G (including probe and battery) |
| Dimension | 137*66*23mm |
| Probe contact temperature | -15~60℃ |
PHYNIX Surfix®E-FN basic Film thickness Meter Packing list
Surfix B FN thickness gauge, protective case, calibration shim, carrying case, AAA battery, manufacturer's certificate, instruction manual.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
