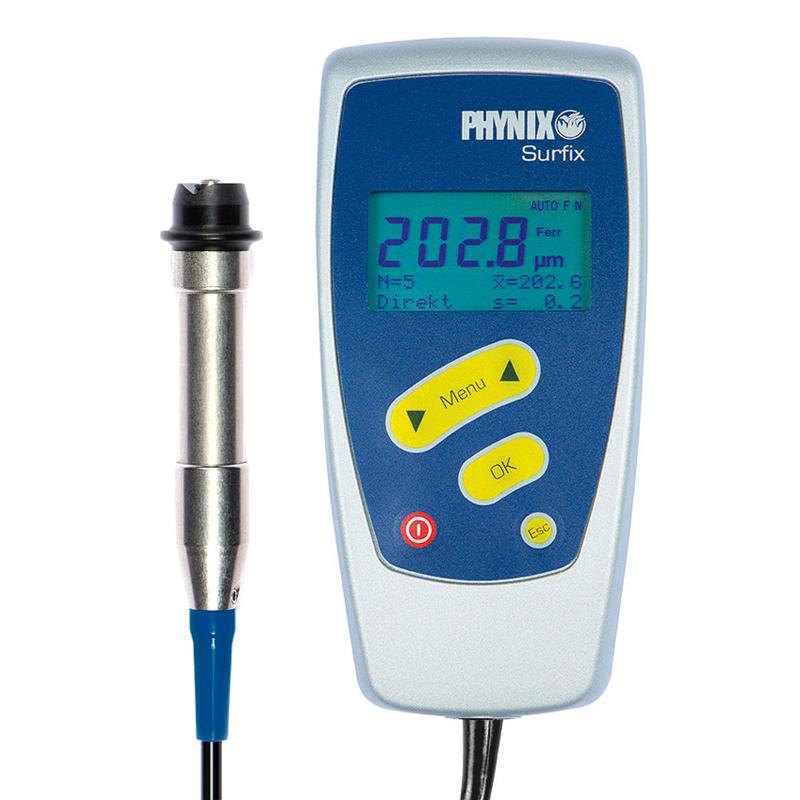

PHYNIX Sur fix ® E - F basic Film thickness meter
PHYNIX Surfix ® E-F basic (Surfix B-F) iron-based basic film thickness meter is the basic model of Surfix F. Compared with the standard version, the Surfix B-F basic film thickness meter cannot save data, no statistical function, limit value, zero drift, no interface and screen backlight function.
PHYNIX
Surfix®E-F basic
Surfix SX-F1.5
-
DONGRU DR5000S Coating Thickness Gauge 0~5000μm
$ 257.00 -
LINSHANG LS216 Multilayer Ultrasonic Thickness Gauge Simultaneous measurement of multilayer thickness, suitable for various substrates
$ 1081.00 -
Defelsko FRS Thickness Gauge Probe
$ 747.00 -
Germany EPK FN 2/90 dual-use right-angle probe, thickness measurement range 0~2000um
$ 2357.00 -
List Magnetik Pocket TOP-CHECK FE Pocket platings Thickness Gauge
$ 1159.00
PHYNIX Surfix®E-F basic（Surfix B-FThe Iron-based Basic Thickness Gauge is the basic version of the Surfix F, compared to the standard version, the Surfix B-F Basic Thickness Gauge does not save data, has no statistical function, limit values, zero drift, no interface and no screen backlight function.
Application
electroplate
paint
Automotive industry
chemical industry
Aerospace
shipbuilding
Tire manufacturing industry
Specifications
| Principle | magnetic induction |
| Measuring range | 0~1500μm |
| precision | ± (1 μm + 1% m) |
| resolution | 0.1 μm or < 0.2% of the measured value |
| display | No backlight, 4 alphanumeric, height 10 mm (0.4 inches) |
| Calibration method | Factory calibration, zero point calibration, thin film calibration |
| statistics | not |
| Data storage | not |
| interface | not |
| Operating temperature | 0℃~60℃ |
| Surface temperature | -15℃~60℃ |
| Specifications | 137mm*66mm*23mm |
| Probe specifications | ∅14mm*83mm |
| weight | 205g with probe and battery |
| Ingress protection | IP 52 (dust and dripping resistant) |
| standard | DIN, ISO, ASTM, BS |
PHYNIX Surfix®E-F basic Film thickness meterSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | magnetic Induction |
| Measurement range | 0~1500μm |
| margin of error | ±1% |
| resolution | 0.1μm |
| probe | Line probe |
| Probe size | Φ14*83mm |
| Calibrated mode | Factory calibrated, zero calibrated and film calibrated |
| statistical function | none |
| icon function | none |
| Interface | none |
| Data storage | none |
| Standards | DIN，ISO，ASTM，BS |
| Display screen | 4 alphanumeric characters, height 10 mm (0.4 in) |
| Operating temperature | 0~60℃ |
| Protection level | IP52 |
| Weight | 205G (including probe and battery) |
| Dimension | 137*66*23mm |
| Probe contact temperature | -15~60℃ |
PHYNIX Surfix®E-F basic Film thickness meter Packing list
Surfix BF thickness gauge, protective cover, calibration shim, carrying case, AAA battery, manufacturer's certificate, instruction manual.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
