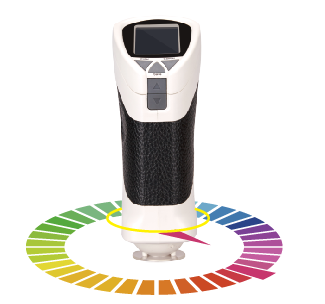

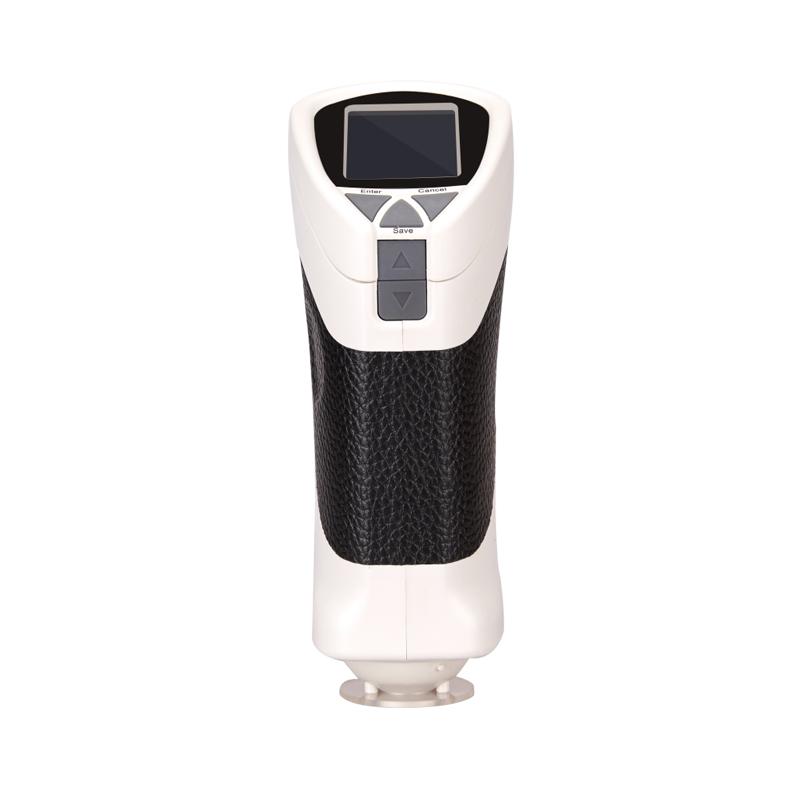

CHNSPEC CS-260 Pantone Formula Guide Reader, built-in Formula Guide database, easy to find Formula Guide numbers

 CS-260 Pantone Color Chart reader can read the sample color and can display the most similar Pantone Color Chart number, which is widely used in the color management field of plastics, printing, paint inks, textiles, printing and dyeing clothing and other industries, according to the CIE color space measurement sample color value L*a*b, L*c*h, and the color difference △E and △Lab value of the sample.

1. Obtain national metrology certification;
       The instrument has built-in sensors from Japan and information processing chips from the United States, which ensures the accurate transmission of optical signals and the stability of electrical signals, and escorts the accuracy and repeatability of the instrument, the display accuracy is 0.01, and the repeatability △E standard deviation value is 0.08.

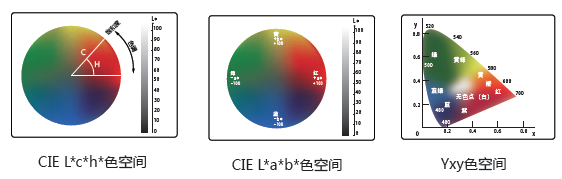

2. L*a*b, L*c*h, Yxy and other multi-color space color values are displayed;
       As a general-purpose measuring instrument, the Colorimeter has a built-in program for converting various color display indicators, so that the instrument can be directly applied to various color measurement fields, without the need for color measurement personnel to manually convert the measurement data, which greatly improves the work efficiency.

3. It can realize yellow and whiteness tests;
       Whiteness value: Hunter whiteness, Gantz whiteness;   Yellowness value: YI

4. Ergonomic design;
       The waist of the instrument conforms to the curvature of the human palm, which can be used for long-term detection, and the high-hand leather design increases friction and prevents fingers from slipping.

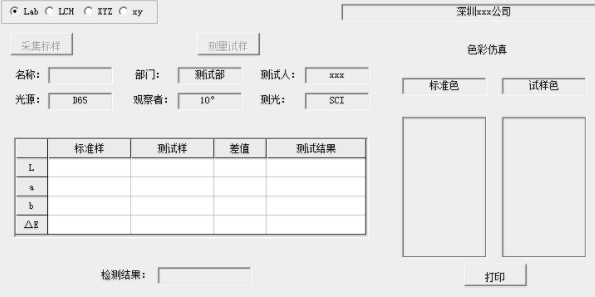

5. Free color management software
       Real-time display of pass or failure, printing test reports, and saving color data of each batch, suitable for internal and external color evaluation and data control of enterprises;

6. Can take the average value of multi-point tests,color control of unevenly colored objects;


7. The L*a*b* value of the standard can be established by manually settingThe standard sample can be manually set to meet the color difference comparison of the product when there is no physical sample.

8. Large-capacity data storage;
       The instrument can store 100 sets of standard samples, and 100 sets of samples can be maintained under each standard sample.

Instrument advantage analysis

      CS-260 can compare the measured color information with the system's built-in Color Chart electronic database, so as to obtain a closer Pantone Color Chart number, which is convenient for color matching personnel to query.

Application Industry:Plastics, paints, printing, food, textiles, automobiles, etc

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
