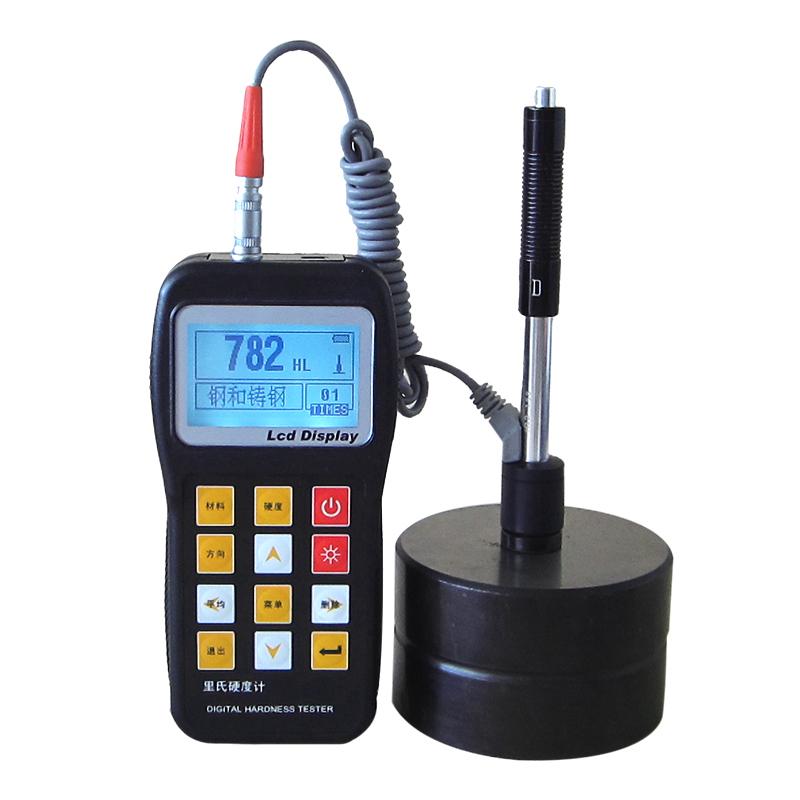

Portable Leeb Hardness Tester KAIRDA NDT230 Plastic Housing Richter Hardness Test Meter

Introduction

The casing of Aedas NDT230 portable Leeb Hardness Tester is a hard plastic shell. It is an economical portable Leeb Hardness Tester that supports batch testing and has mature technology. NDT230 Leeb Hardness Tester can be configured with 7 different impact devices to measure hardness values in different ranges, supports software calibration function, and can set tolerance limits. It is especially suitable for out-of-home hardness testing and mold cavity hardness testing, with high measurement accuracy and reliability. Well, D-shocks come standard.

The materials that can be measured by NDT230 portable Leeb Hardness Tester are: steel and cast steel, alloy tool steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), pure copper, forged steel.

Features

1. NDT230 portable Leeb Hardness Tester adopts a fully sealed plastic shell, which has anti-vibration, anti-electromagnetic interference and anti-shock capabilities.

2. Menu-based operation, simple and intuitive, realizes the function of one-button switching of materials and hardness scales, which is simple and convenient.

3. The Leeb Hardness Tester can freely convert all hardness standards (HL, HB, HRB, HRC, HRA, HV, HS), without manual calculation.

4. NDT230 can be equipped with 7 different impact devices, which can automatically identify different devices, and there is no need to re-calibrate when replacing, and the compatibility is doubled.

5. Low power consumption design, with automatic sleep, automatic shutdown, and remaining power reminder functions.

6. NDT230 portable Leeb Hardness Tester supports "forged steel (Steel)" material. When testing "forged steel" sample with D/DC impact device, it can directly read the HB value without manual table lookup.

7. Using AA ordinary battery, the continuous work is not less than 200 hours.

8. The software calibration function of the start-up indication value ensures that the data is applicable and accurate under different specifications and standards of any industry.

9. The portable Leeb Hardness Tester has an automatic alarm function. Tolerance limits are set in advance, and automatic alarms are given out of range, which is especially suitable for batch testing.

Applications

1) machining industry

2) Mold cavity

3) Bearings and other parts

4) Heavy workpiece

5) Workpieces with very small experimental space

6) It is especially suitable for on-site hardness testing of large parts and non-detachable parts

7) Failure analysis of pressure vessels, turbogenerators and their equipment

8) Material classification of metal material warehouse

9) Rapid detection of multiple measuring parts in a large area of a large workpiece

10) With software calibration function, the tolerance limit can be set, which is convenient for batch testing, and is especially suitable for the hardness of the mold cavity used in out-of-home hardness testing.

Pictures

Host x1, D-type Impact device x1, standard Hardness block x1, nylon brush x1, screw driver x1, small support ring x1, No. 5 battery x2, manual x1, certificate x1, warranty card x1, instrument special case x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
