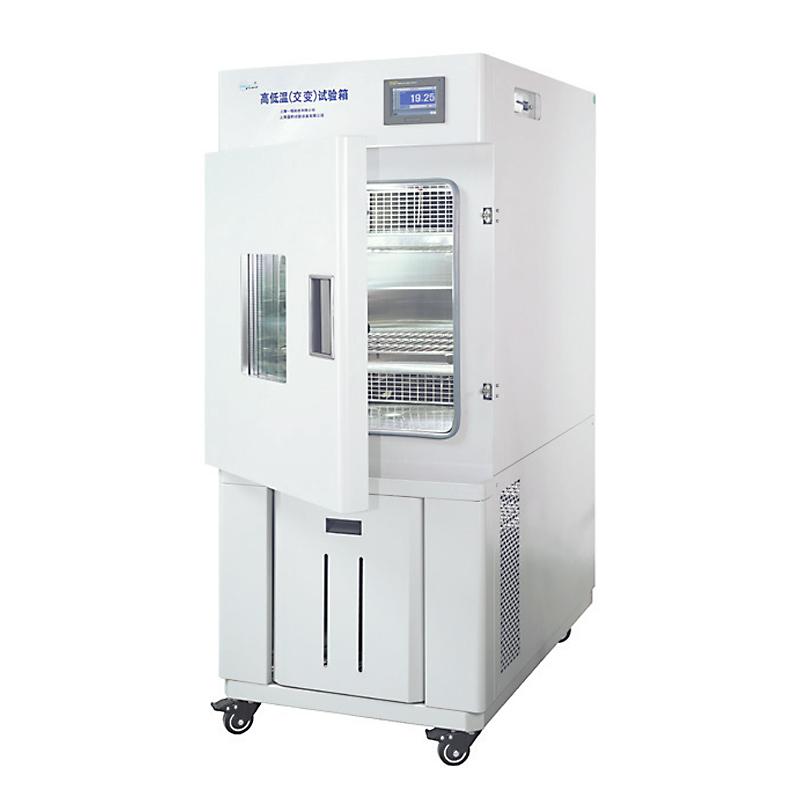

YIHENG BPHJS-1000A Temperature Humidity Cyclic Chamber -20~130 ℃/1000L

A new generation of high-low temperature (alternating) ; Sensible heat Test Chamber, set the company's many years of successful experience in box design, in line with the humanized design concept, starting from the actual needs of customers, in every detail to meet customer requirements, to provide customers with high-quality products.

Features

User-friendly design

• The new fluorine-free design keeps you ahead of a healthy lifestyle.

• It adopts dry and wet bulb type or electric kiln type multi-function multi-segment programmable temperature and humidity controller, fuzzy PID controller, accurate temperature and humidity control, and small fluctuations.

• Imported temperature and humidity controller has a long life, high-precision CFL20 characters× 6-line LCD display, keyboard input, and easy operation.

• There are 25mm or 50mm diameter test holes on the left side of the cabinet to facilitate experimental operation and temperature measurement.

• The built-in sink can be pulled out to fill the water for easy use.

Quality Assurance

• International brand compressor and circulating fan make the temperature distribution uniform. The environmentally friendly refrigerant (R134a) has high efficiency and low energy consumption, which promotes energy saving.

• The unique air duct circulation system ensures uniform temperature and humidity in the studio.

• The imported 304 mirror stainless steel liner is used, the four corners of the semi-circular arc are excessive, and the shelf bracket can be loaded and unloaded freely, which is convenient for cleaning in the box.

• Multi-stage programmable control can simplify the complex test process and truly realize automatic control and operation.

Security features

• Independent temperature limit alarm system, when the limit temperature is exceeded, the operation will be automatically interrupted, and the sound and light alarm will prompt the operator. Ensure the safe operation of the experiment without accidents.

• Alarms for over, low and over-temperature temperatures.

• Compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection, etc.

 Convenient data processing(Optional)

It can be connected to a printer or 485 communication interface, with a USB data transfer interface (SD disk), displayed by computer, and printed with temperature, humidity and time curve, providing a strong guarantee for the storage and playback of data in the inspection process.

Programmable Touch Screen Controller (Standard on BPHJS Series)

● Color LCD touch control screen, menu-type operation interface, intuitive observation and easy operation.

● Chinese and English operation interface can be selected arbitrarily, and the screen can display the real-time temperature and humidity running curve.

● 100 sets of 1000 steps and 999 cycles can be preset, and the maximum value of each period of time is set to 99 hours and 59 minutes.

● It has a screen lock function to avoid changing the test data or stopping the machine due to human touch.

● It has the function of P.I.D automatic calculation, which can immediately correct the temperature and humidity change conditions, so that the temperature and humidity control is more accurate and stable.

● With RS-232 or RS-485 communication interface, it can design programs on the computer, monitor the test process and perform functions such as power on/off.

● Install professional control software on the computer, which can realize the monitoring and control of 9 devices at the same time.

● Real-time analysis and storage of data on the computer to form Excel documents or Word documents for easy printing.

host x1, instruction manual x1, certificate x1, warranty card x1, eraser x1, shelf x3, hook x12, water tray x1, gauze x1, printing paper x1, software x1, communication cable x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
