SMART SENSOR AR63A Portable VibratIon Meter Acceleration 0.1~ 199.9m/s2
Ceramics (shear type), acceleration measurement range 0.1~ 199.9m/s ², speed measurement range 0.1~ 199.9mm/s, displacement measurement range 0.001~ 1.999mm
SMART SENSOR
AR63A
-
DUBAN DB22-VM260DET Vibrator, Piezoelectric Vibration Sensors Displacement 0.001~ 4.0mm
$ 601.00 -
SMART SENSOR AR63C Portable VibratIon Meter Acceleration 0.1~ 199.9m/s2
$ 232.00 -
Hypertherm CZ-Z vibratIon Meter, vibration Measurement Instrument
$ 489.00 -
AMITTARI AV-160T Rotation speed meter, vibratIon Meter, bearing condition measurement
$ 546.00 -
Pen Vibration Meter AMITTARI AV-160P Digital Display Portable Pen Vibration Meter
$ 272.00

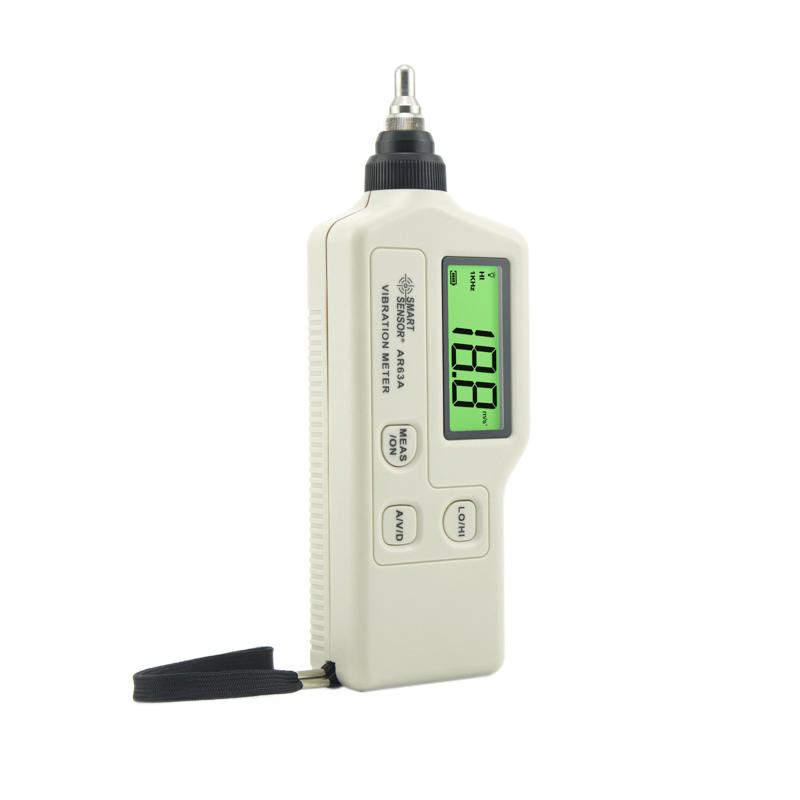

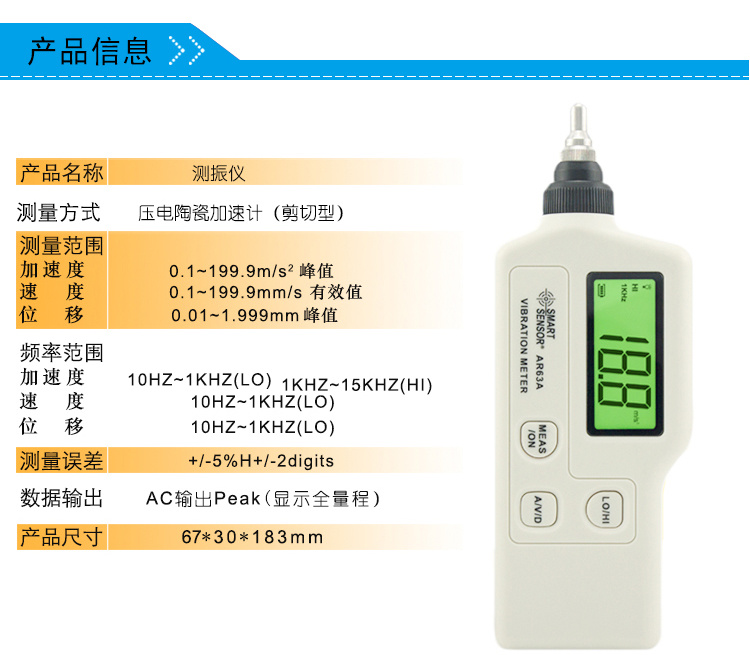

SMART SENSOR AR63A VibratIon MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement mode | Piezoelectric ceramics (shear type) |
| Acceleration Measurement Range | 0.1~199.9m/s² |
| Speed Measurement Range | 0.1~199.9mm/s |
| Displacement Measurement Range | 0.001~1.999mm |
| Acceleration frequency range | 10Hz~1KHz(LO)，1KHz~15KHz(HI) |
| Speed frequency range | 10Hz~1KHz (LO) |
| Displacement frequency range | 10Hz~1KHz (LO) |
| Measurement error | ±5%Hz±2digits |
| Data output | Peak AC signal output (full scale display) |
| monitor | 3.5 digits LCD display |
| Automatic range switching | Yes. |
| Backlight display function | Yes. |
| Automatic shutdown function | Yes. |
| Operating temperature | 0~40℃ |
| Power | 9V battery |
| Weight | 147g |

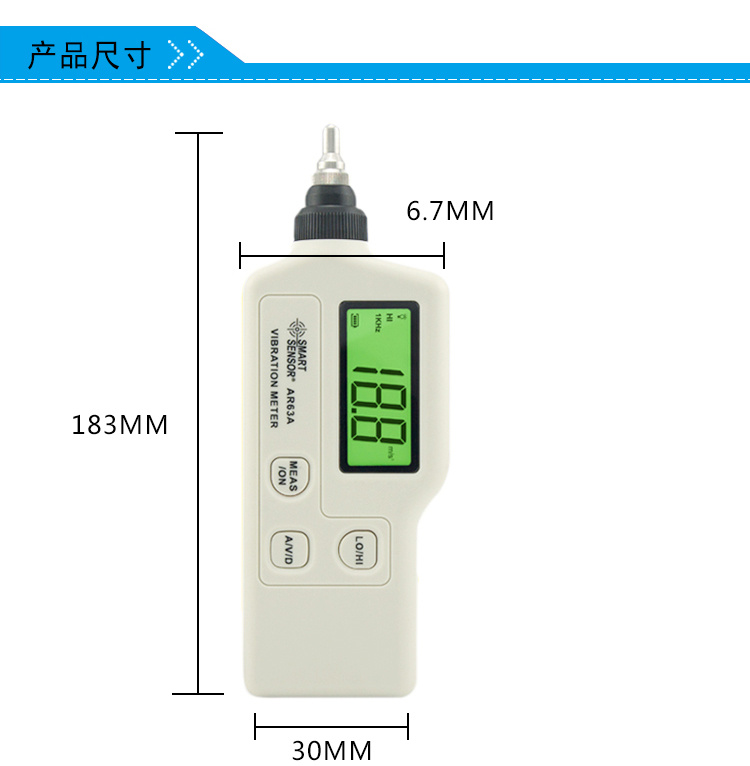

| Dimensions | 67*30*183mm |
| Encasement mode | Aluminum Encasement |
| Standard outer box Capacity | 12PCS |
| Standard outer box size | 52*43*32.5cm |
| Standard Gross Weight | 11.93KG |
SMART SENSOR AR63A VibratIon Meter Packing list
Vibration meter X1, original battery X1, factory certificate X1, warranty card X1, manual X1, portable toolbox x1, long probe x1, short probe x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
