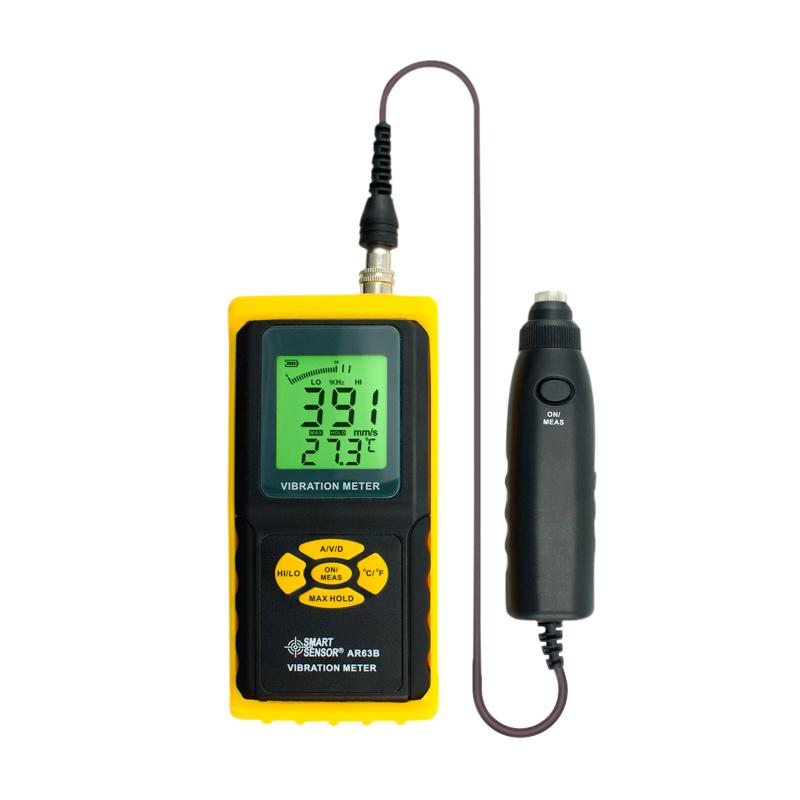

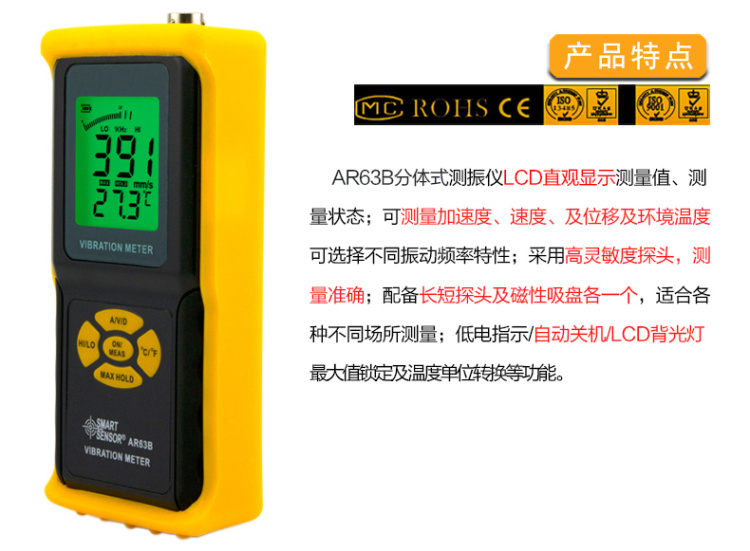

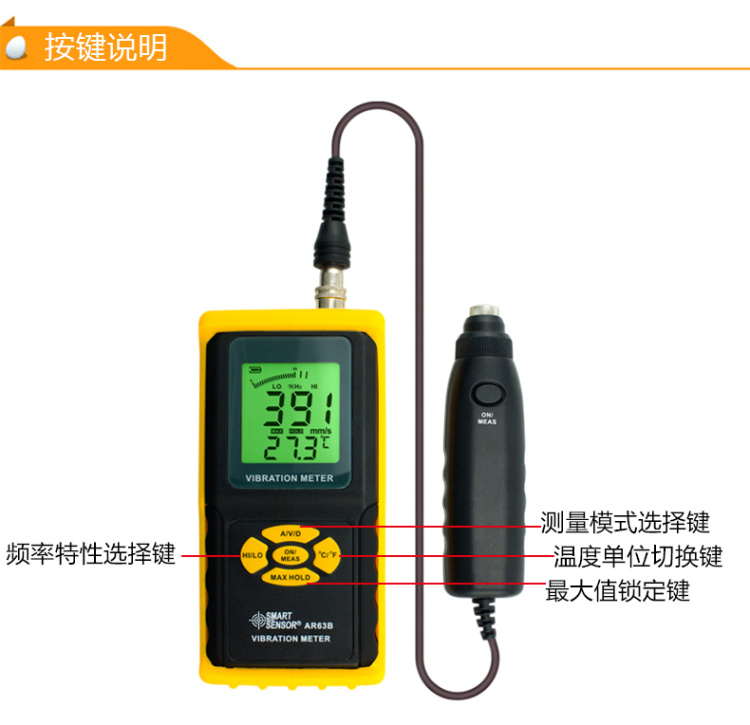

SMART SENSOR AR63B VibratIon Meter Acceleration 0.1~ 199.9m/s ²
Ceramics (shear type), acceleration measurement range 0.1~ 199.9m/s ², speed measurement range 0.1~ 199.9mm/s, displacement measurement range 0.001~ 1.999mm
SMART SENSOR
AR63B
-
LANDTEK VMC-606 Vibrator calibrator
$ 589.00 -
3D three-axis vibration instrument AMITTARI AV-160D simultaneous measurement of three-axis or single-axis vibration parameters
$ 673.00 -
DUBAN DB22-VM260D 3D Triaxial Vibration Meter with Triaxial Piezoelectric Vibration Sensors
$ 692.00 -
DUBAN DB22-VM260A Vibration instrument, displacement D 0.001~ 4.0mm
$ 403.00 -
LANDTEK VM-6320 Vibration Meter (Practical)
$ 334.00

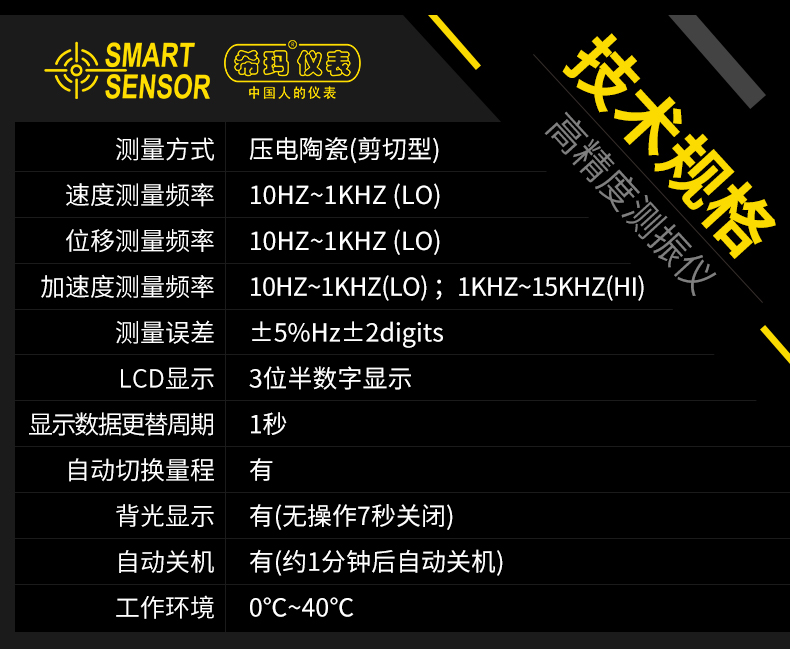

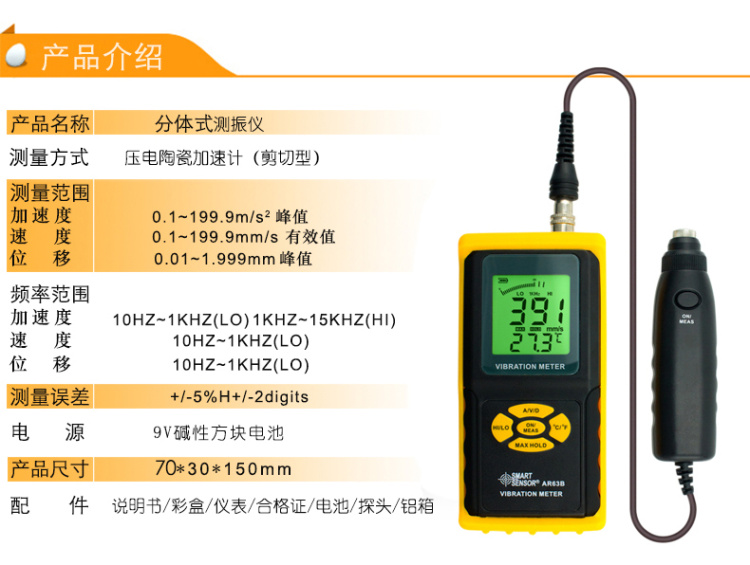

SMART SENSOR AR63B VibratIon MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement mode | Piezoelectric ceramics (shear type) |
| Acceleration Measurement Range | 0.1~199.9m/s² |
| Speed Measurement Range | 0.1~199.9mm/s |
| Displacement Measurement Range | 0.001~1.999mm |

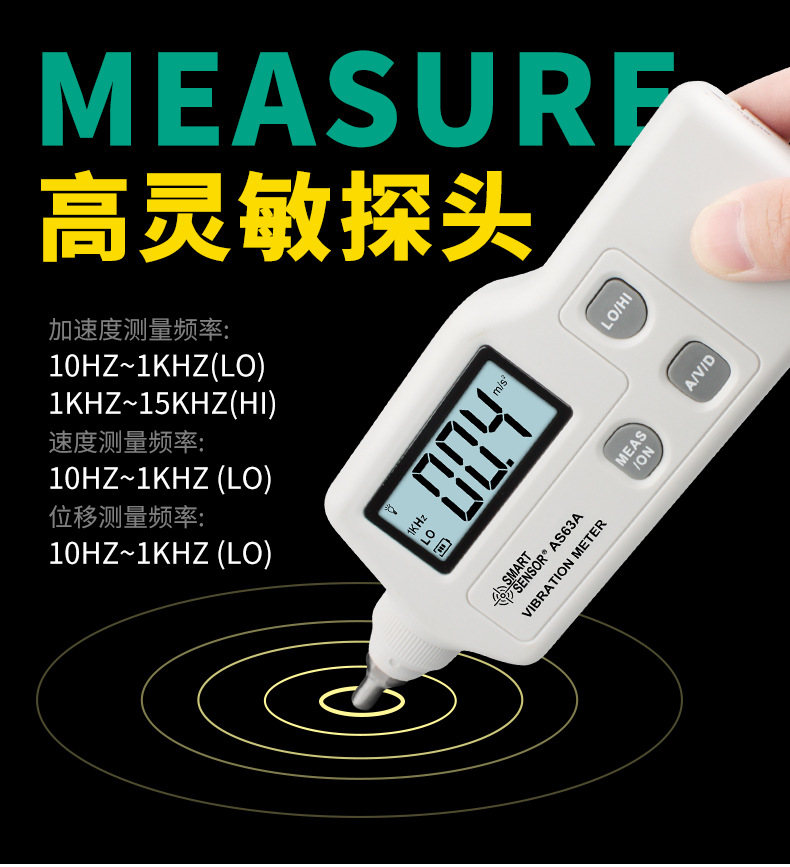

| Acceleration frequency range | 10Hz~1KHz(LO)，1KHz~15KHz(HI) |
| Speed frequency range | 10Hz~1KHz (LO) |
| Displacement frequency range | 10Hz~1KHz (LO) |
| Measurement error | ±5%Hz±2digits |

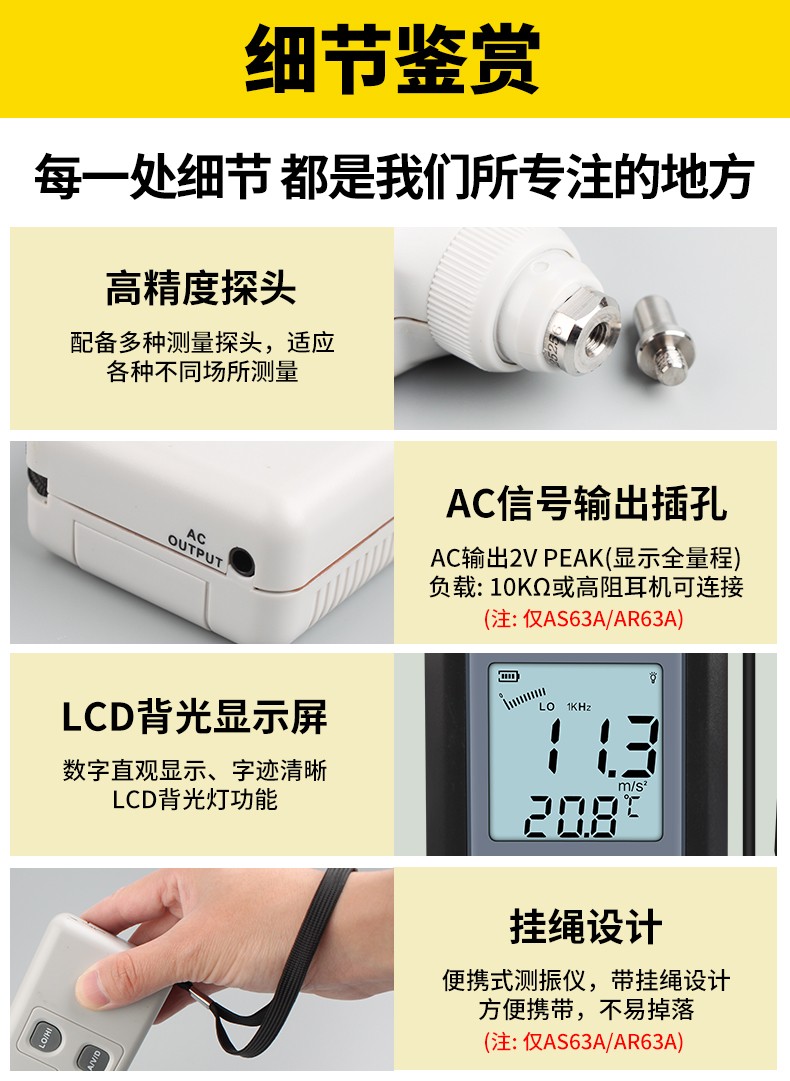

| Data output | Peak AC signal output (full scale display) |

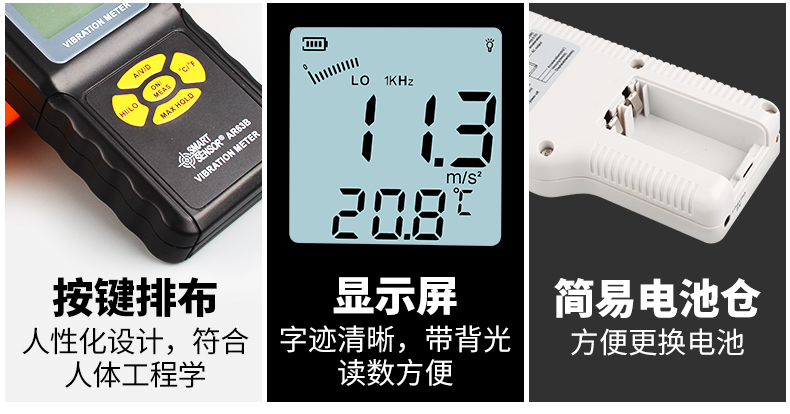

| monitor | 3.5 digits LCD display |
| Automatic range switching | Yes. |
| Backlight display function | Yes. |
| Automatic shutdown function | Yes. |
| Operating temperature | 0~40℃ |
| Power | 9V battery |
| Weight | 137g |

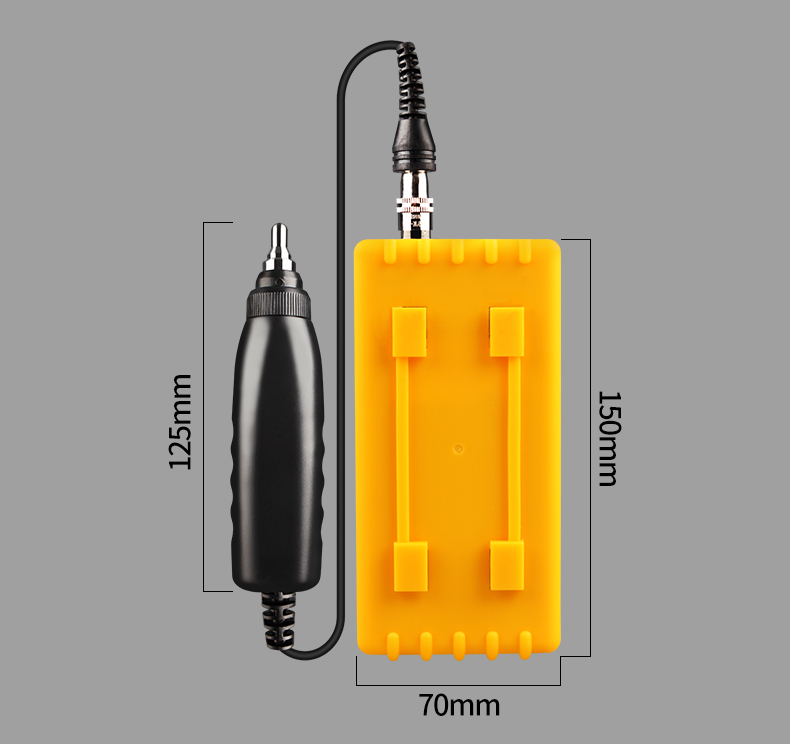

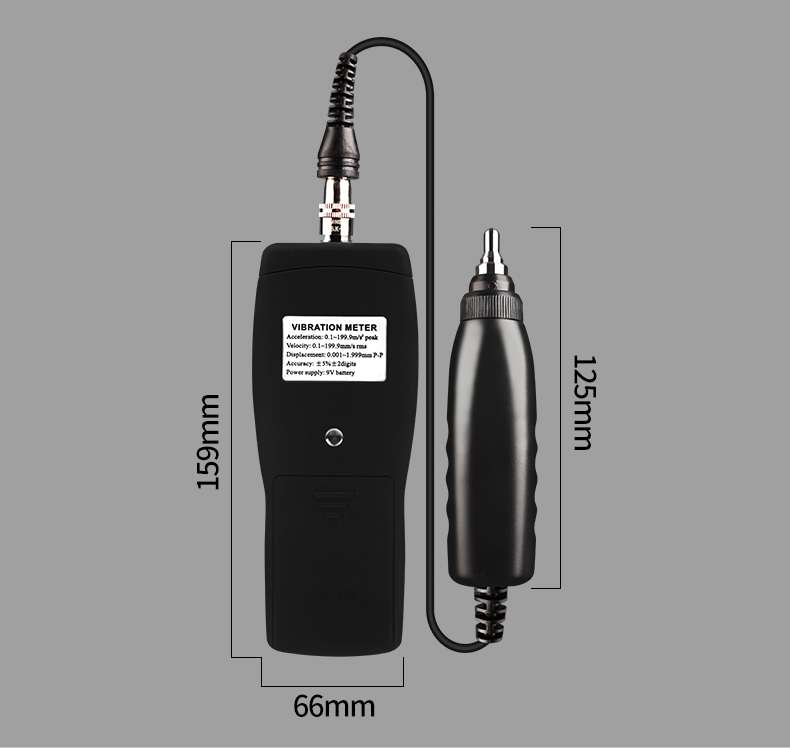

| Dimensions | 70*30*150mm |
| Encasement mode | Aluminum Encasement |
| Standard outer box Capacity | 12PCS |
| Standard outer box size | 52*43*32.5cm |
| Standard Gross Weight | 14.1KG |

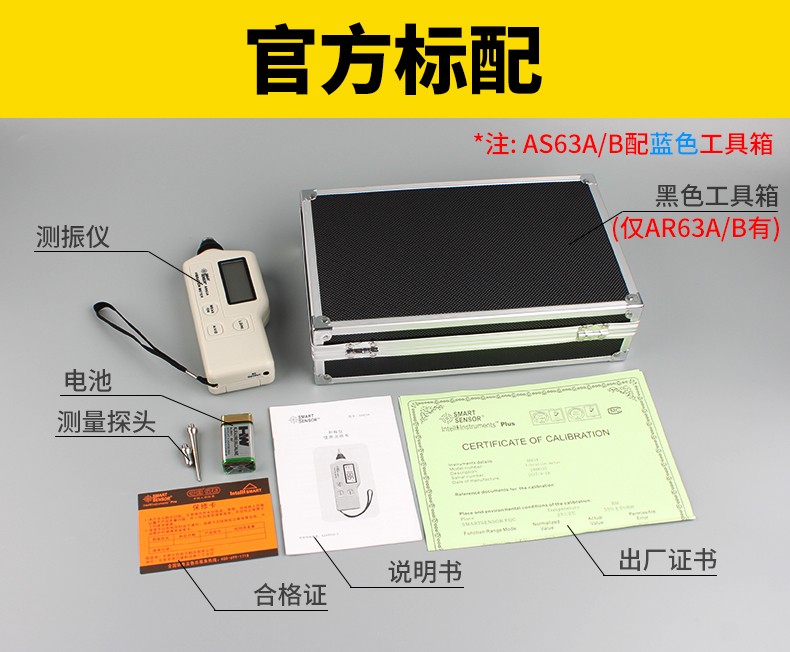

SMART SENSOR AR63B VibratIon Meter Packing list

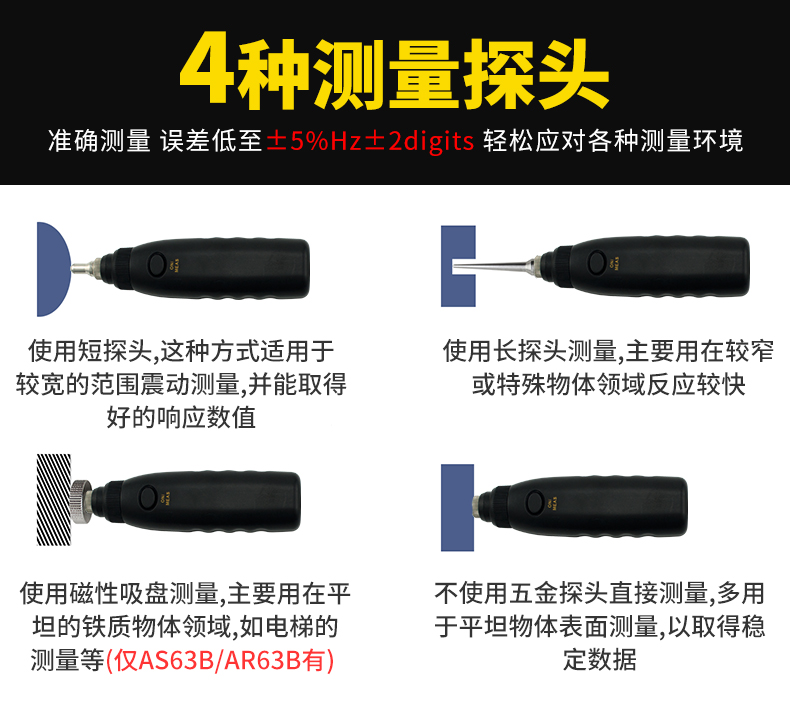

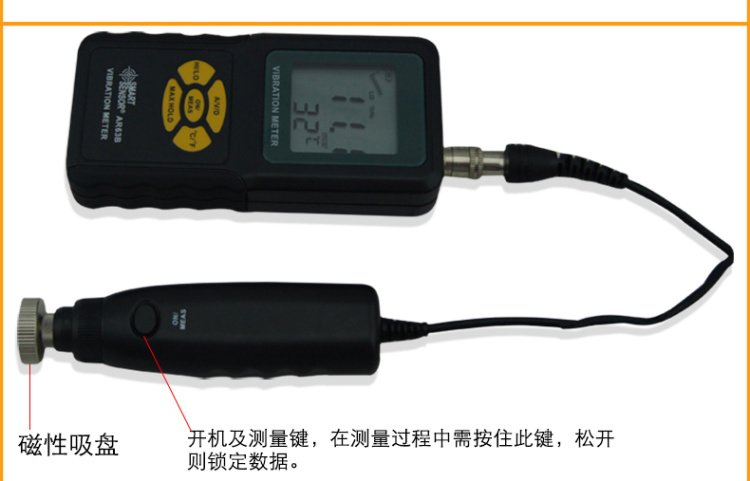

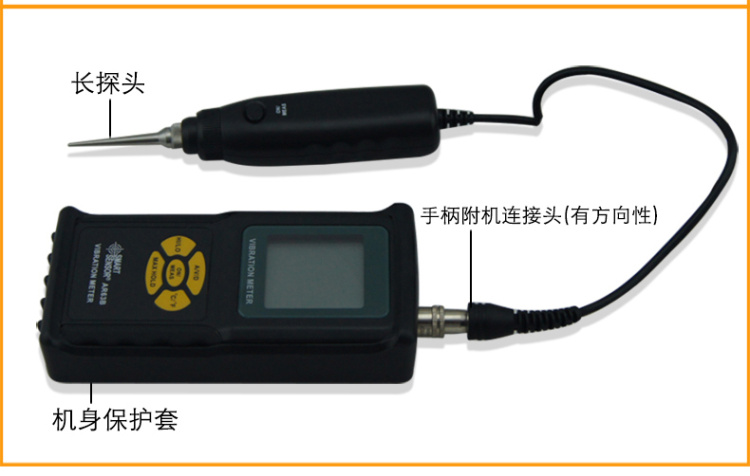

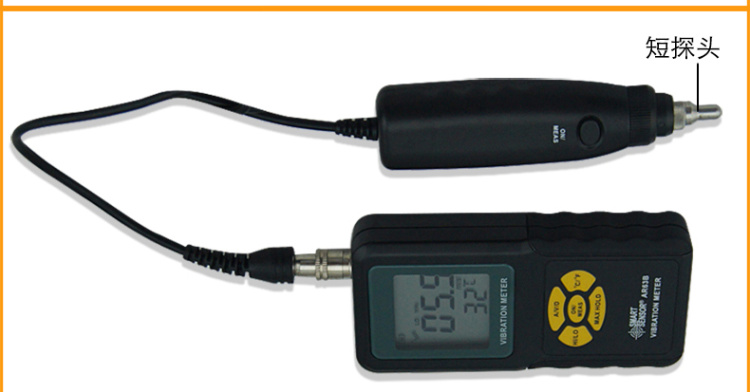

Vibration meter X1, original battery X1, split probe x1, long probe x1, short probe x1, strong magnetic chuck x1, factory certificate X1, warranty card X1, manual X1, portable toolbox x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
