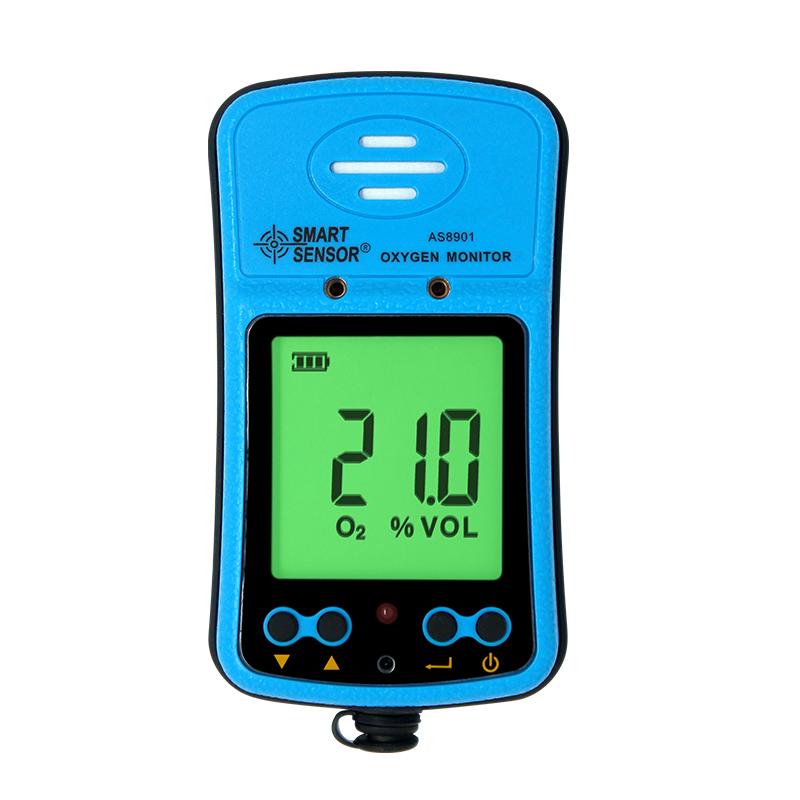

SMART SENSOR AS8901 Oxygen Detector (diffusion type + pump suction type)

SMART SENSOR AS8901 Portable Oxygen Detector 0~30% VOL

The SMART SENSOR AS8901 portable oxygen Detector has two sampling methods of pump suction and diffusion, which are used to test the O2 concentration in the range of 0~30% VOL. The AS8901 portable oxygen Detector is suitable for power, coal mine, sewage treatment, biology, and other fields.

Brand

SKU: NB012840

SMART SENSOR

Model

AS8901

Get Quote

SMART SENSOR shop

Information

Datasheet Catalog

What else did others buy

Genuinegoods

SMART SENSOR AS8901 Oxygen Detector (diffusion type + pump suction type)Overview
Specifications
Comments
FAQs

AS8901

Oxygen Detector (diffusion type + pump suction type)

C-MER AS8901 Oxygen Detector (Diffusion + Suction Type) Introduction

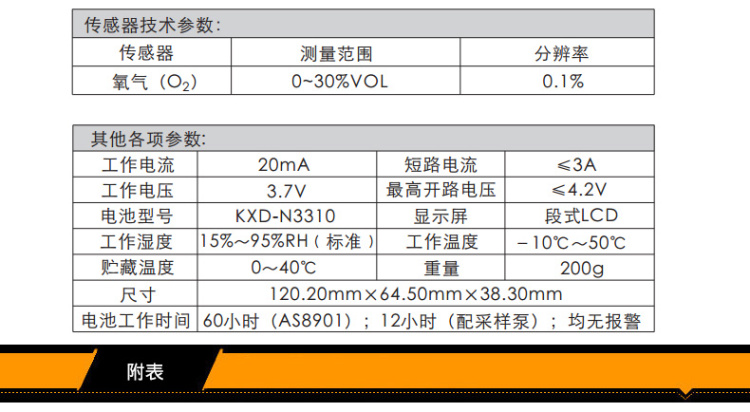

C-MER AS8901 Oxygen Detector (Diffusion + Suction Type) Product Parameters

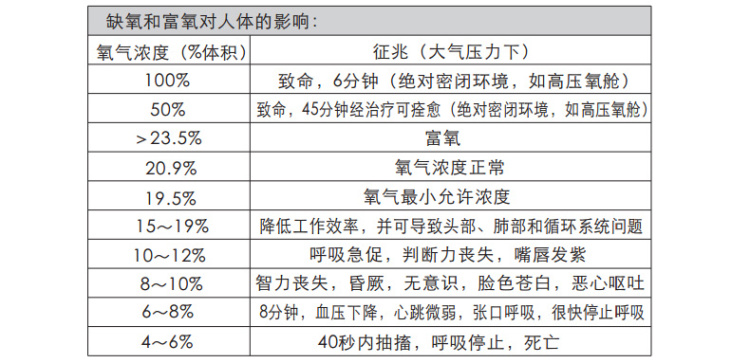

C-MER AS8901 Oxygen Detector (Diffusion + Suction Type) Product Parameters Schedule

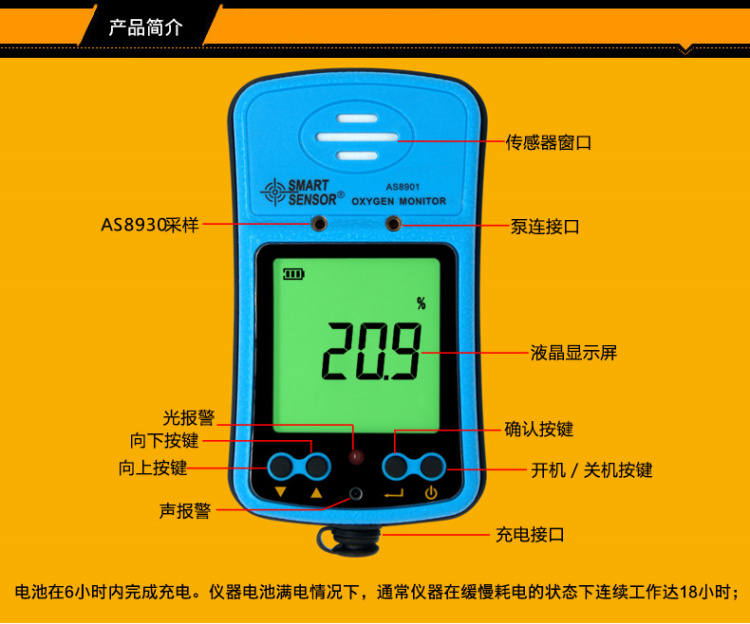

C-MER AS8901 Oxygen Detector (Diffusion + Suction Type) Introduction1

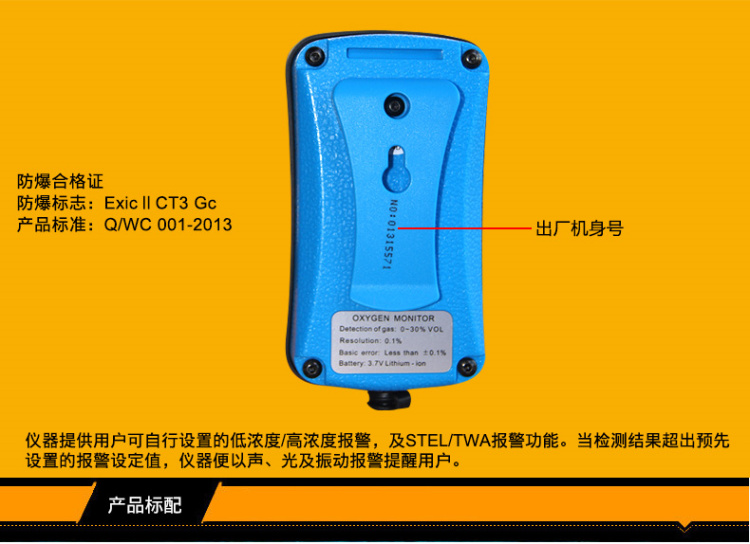

C-MER AS8901 Oxygen Detector (Diffusion + Suction Type) Product Brief 2

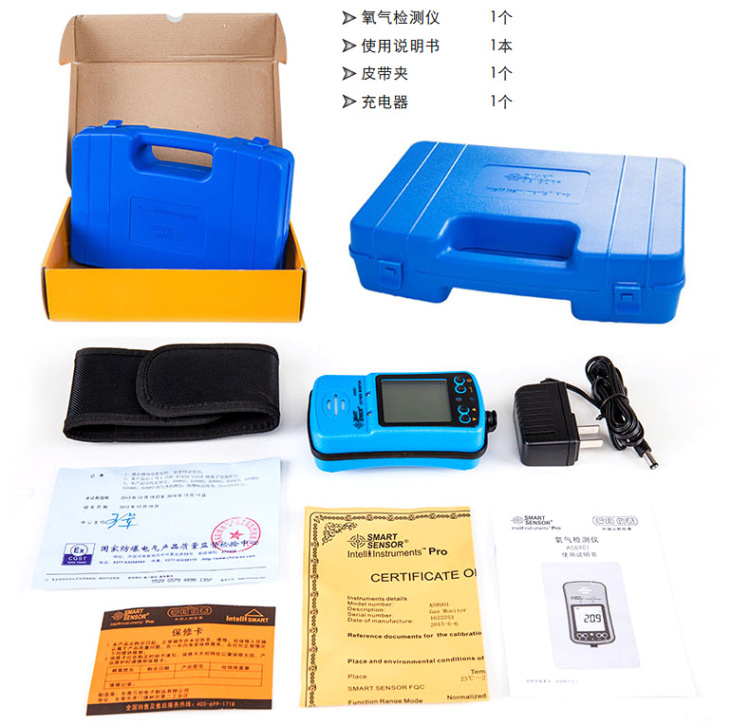

C-MER AS8901 Oxygen Detector (Diffusion + Suction Type) Product Standard Diagram

C-MER AS8901 Oxygen Detector (Diffusion + Suction Type) Product Application

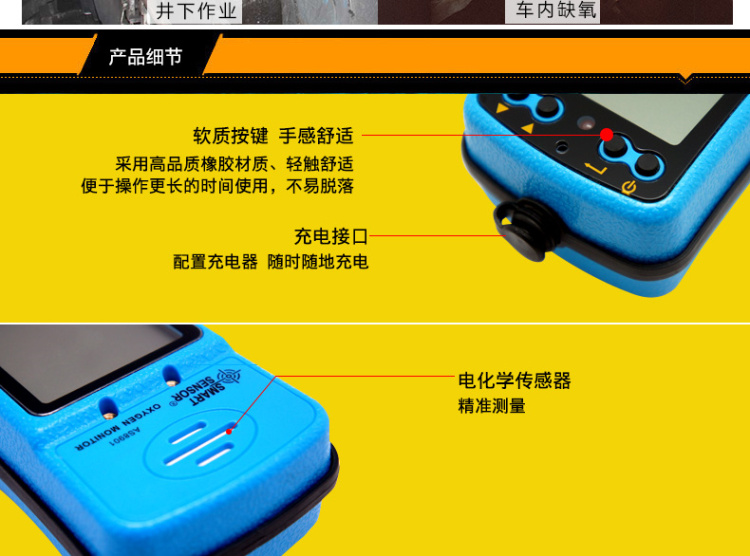

C-MER AS8901 Oxygen Detector (Diffusion + Suction Type) Product Details

SMART SENSOR AS8901 Oxygen Detector (diffusion type + pump suction type)Specifications

LIST	VALUE
Detect gas	Oxygen O2
Range	0~30%vol
resolution	0.1%
intrinsic error	<±0.1%
Response time	<50s
recovery time	<50s
Alarm mode	Sound, light.
Operating temperature	-10~50℃
Environmental humidity	15~95%RH
Power Supply	3.7V lithium battery
Weight	200 g
Dimension	120.264.538.3mm
Standard outer box Capacity	24
Packaging Dimensions	4645.555mm

SMART SENSOR AS8901 Oxygen Detector (diffusion type + pump suction type) Packing list

Oxygen detector X1, original rechargeable lithium battery X1, data cable x1, charger x1, factory certificate X1, warranty card X1, manual X1, portable toolbox x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
