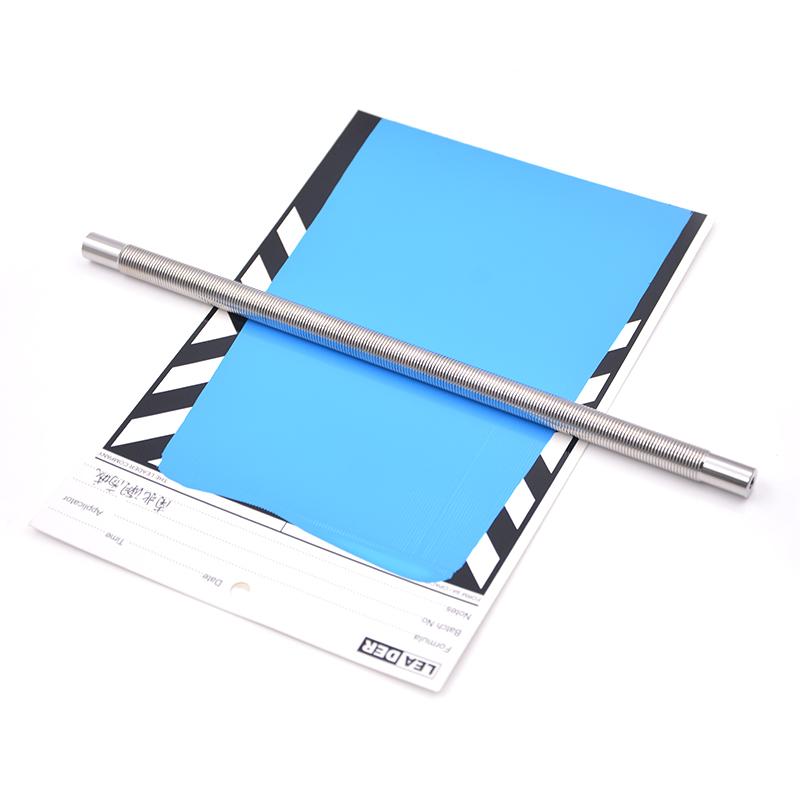

Yongchao D10-YC004-L240mm Experimental Coating Metering rod Proofing rod
Yongchao D10-YC004-L240mm Experimental Coating Metering rod is a precision Moulding bar in CHINA laboratory. The coating rod has a diameter of 10mm, a Total length of 240mm, an effective application width of 210mm, and can be prepared with a wet film thickness of 4μm. Can be used for wallpaper, printing and other inks color proofing.
yongchaoMT-
RDS 6 #3/8 "Mayer Rods WFT 13.7μm Length 400mm
$ 161.00 -
RK K303.10.2 No. 2 coater wire rod K303 coater special film thickness 12μm
$ 192.00 -
RDS 70 #3/8 "paints WFT 160.0μm Length 400mm
$ 161.00 -
RDS #49 Applicator rod WFT 112.0 μm Length 400mm
$ 155.00 -
Gravure scraping rod No. 100, developing color scraping rod 100μm film coating bar
$ 95.00
The traditional wire rod is wound on the surface of the steel rod to coat the fine steel wire, the thin steel wire on the surface is not only easy to loosen and break, not easy to clean, and can not be coated with ultra-thin film, Yongchao YC series wire bar is the use of precision mold using cold extrusion processing technology on the surface of the steel rod to process the concave and convex wavy curve, which has the same coating effect as the traditional wire rod. However, since there is no thin steel wire wound on the surface, there is no worry about the wire loosening and breaking. And the surface curve is smooth and easy to clean. The surface of the wire rod is also coated with hard chromium with a hardness of up to 1300HV, which can greatly improve its wear resistance and service life.




Optional
yongchaoMT D10-YC004-L240mm Coating Metering rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 4μm |
| diameter | 10mm |
| Total length | 240mm |
| application width | 210mm |
| Grip Width | 15+15mm |
| material | 304 stainless steel |
yongchaoMT D10-YC004-L240mm Coating Metering rod Packing list
Metering rod × 1, Transparent Encasement tube × 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
