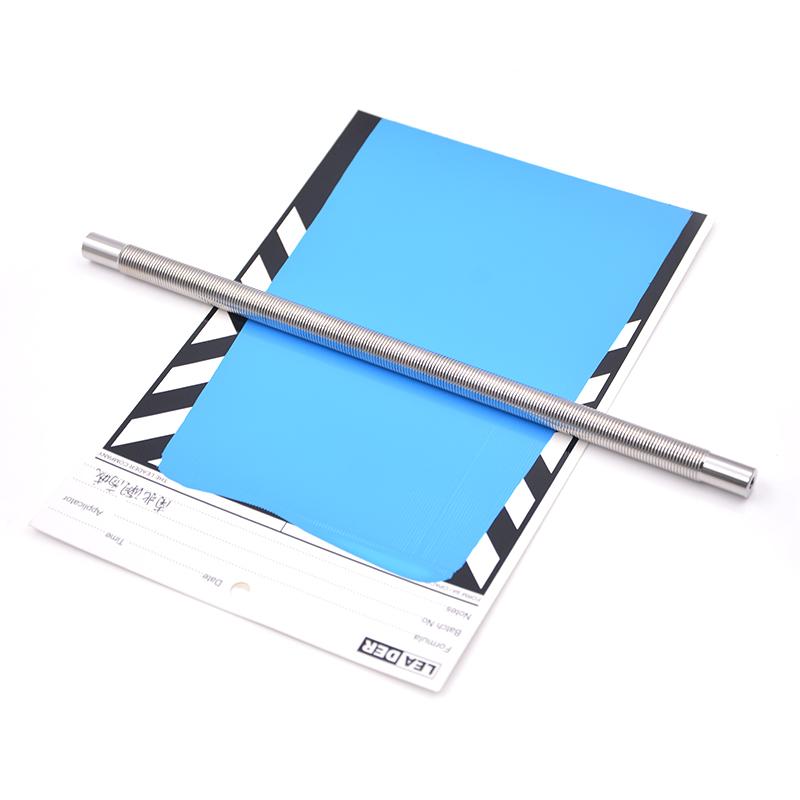

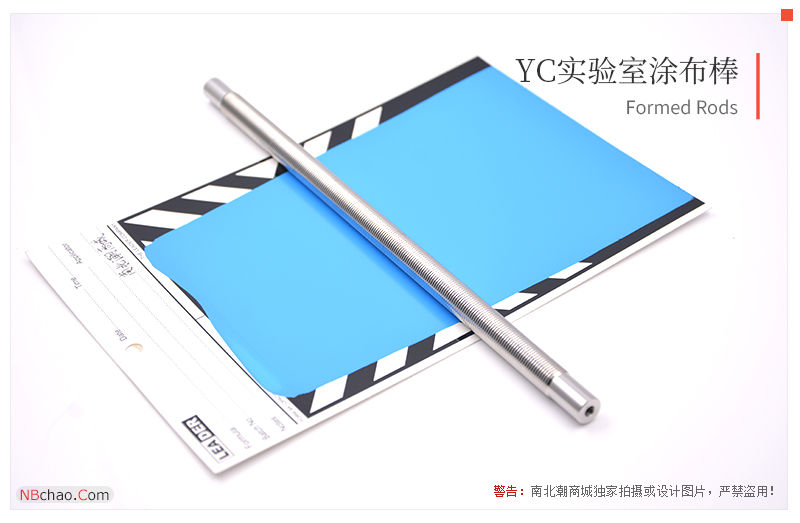

Yongchao D10-YC006-L240mm Experimental Coating Metering rod coating bar
Yongchao D10-YC006-L240mm Experimental Coating Metering rod is a precision Moulding bar in CHINA laboratory, which can be used for precise and quantitative preparation film laminating experiments such as pulp and paper, Spinning & weaving, coatings, leather, Optical inspection films, Encasement materials and polymer materials.
yongchaoMT-
RDS 6 #1/2 "inks Applicator rod Molded rds Spreader rod 13.7 μm
$ 179.00 -
Japan OSP OSP-120T L250 Applicator rod wire-wound drawdown Bar WFT 120μm Length 250mm
$ 152.00 -
Japan OSP OSP-64/400 paints coating bar WFT 64μm length 400mm
$ 172.00 -
Japan OSP OSP-70/400 wire-wound drawdown Bar paints coating bar WFT 70μm length 400mm
$ 172.00 -
RDS 22 #3/8 "Molded wet-Film Applicator 50.3μm Spreader
$ 161.00

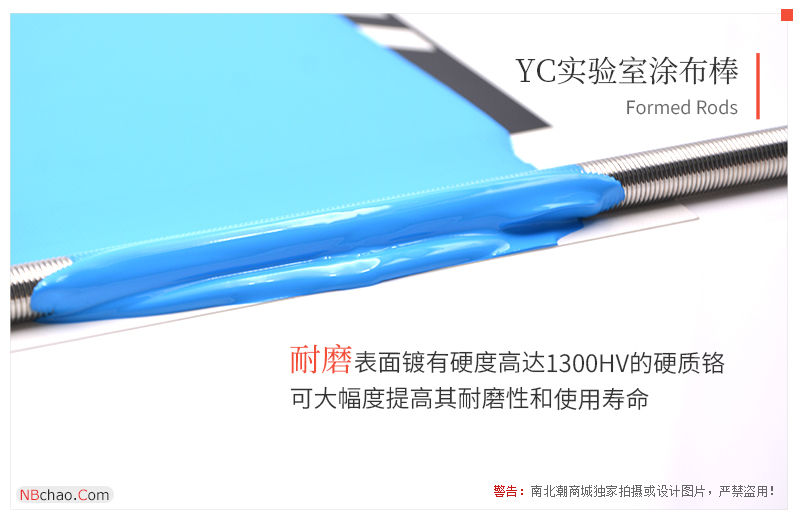

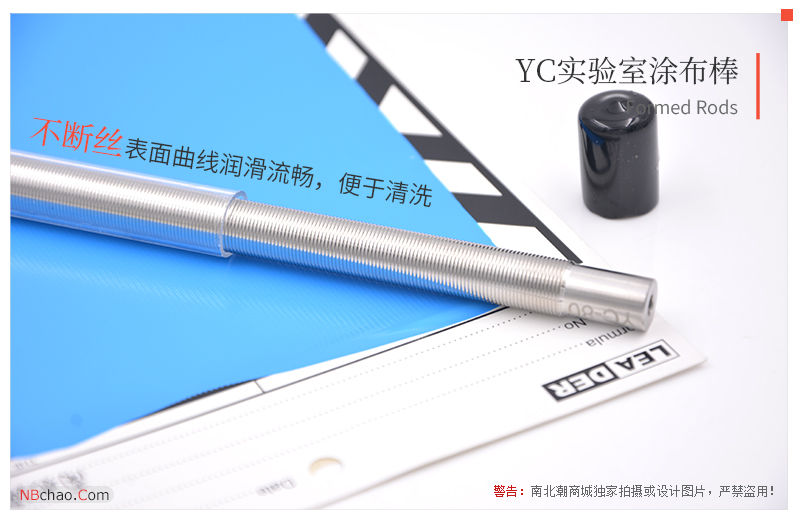

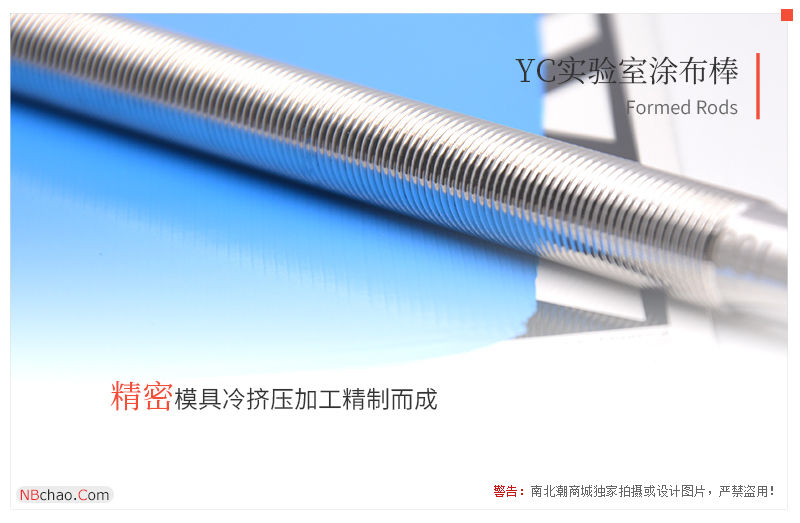

The traditional wire rod is wound on the surface of the steel rod to coat the fine steel wire, the thin steel wire on the surface is not only easy to loosen and break, not easy to clean, and can not be coated with ultra-thin film, Yongchao YC series wire bar is the use of precision mold using cold extrusion processing technology on the surface of the steel rod to process the concave and convex wavy curve, which has the same coating effect as the traditional wire rod. However, since there is no thin steel wire wound on the surface, there is no worry about the wire loosening and breaking. And the surface curve is smooth and easy to clean. The surface of the wire rod is also coated with hard chromium with a hardness of up to 1300HV, which can greatly improve its wear resistance and service life.




Optional
yongchaoMT D10-YC006-L240mm Coating Metering rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 6μm |
| diameter | 10mm |
| Total length | 240mm |
| application width | 210mm |
| Grip Width | 15+15mm |
| material | 304 stainless steel |
yongchaoMT D10-YC006-L240mm Coating Metering rod Packing list
Metering rod × 1, Transparent Encasement tube × 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
