Yongchao D12-YC020-L240mm Experimental Coating Metering rod Glue rod, paint rod
Coating rod diameter 10mm, Total length 240mm, effective application width 210mm, can be prepared 20 μ m wet film thickness. New material, Adhesive coating special rod.
yongchaoMT-
Printing ink Applicator rod 20 micron Proofing rod Measurement
$ 95.00 -
RDS 13 #1/4 "Spreader rod film thickness 29.7 μm rod diameter 6.35mm
$ 155.00 -
RDS 90G #3/8 "high viscosity Mayer Rods film thickness 205.7μm
$ 172.00 -
RDS 38 #1/4 "wire-wound Applicator rod film thickness 86.9μm Wire diameter 0.97mm
$ 155.00 -
RDS 75 #1/2 "Steel Wire Drawdown Rod film thickness 171.5μm Wire diameter 1.91mm
$ 179.00
Traditional wire rods are coated by winding thin steel wires on the surface of steel rods. The thin steel wires on the surface are not only easy to loosen and break, and are not easy to clean, but also cannot be coated with ultra-thin films. Yongchao YC series wire rods are used The precision mold uses cold extrusion processing technology to process concave and convex wavy curves on the surface of the steel rod, which has the same coating effect as the traditional wire rod. However, since there is no thin steel wire wrapped around the surface, there is absolutely no worry of the steel wire becoming loose and broken. Moreover, the surface curve is lubricated and smooth, which is easy to clean. The surface of the wire rod is also plated with hard chromium with a hardness of up to 1300HV, which can greatly improve its wear resistance and service life.




Optional
![]() | |
![]() | ![]() |
Note: Click on the accessory picture to view Details.

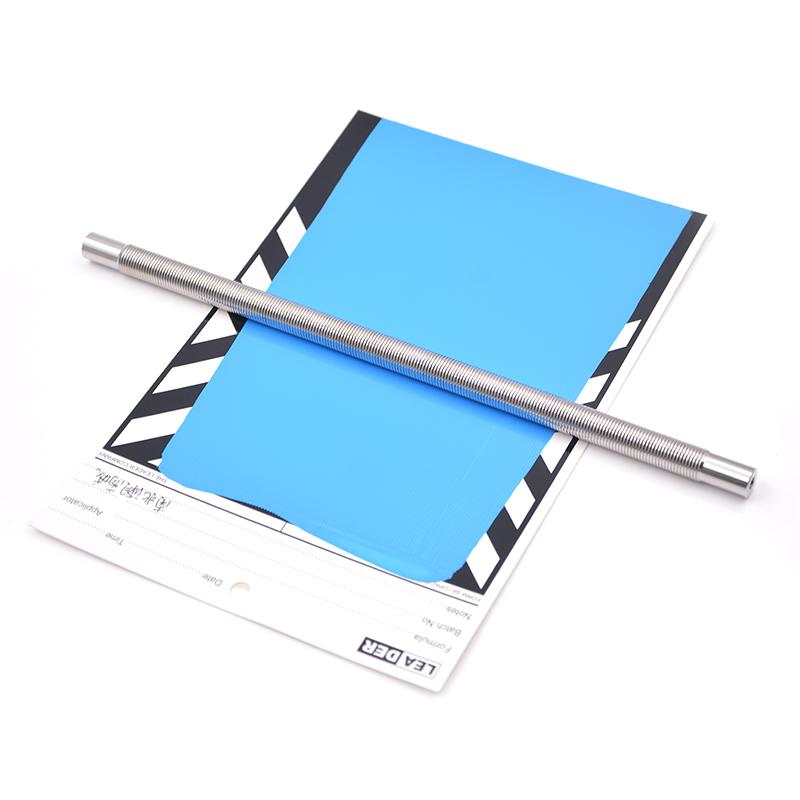

yongchaoMT D10-YC020-L240mm Coating Metering rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 20µm |
| diameter | 10mm |
| Total length | 240mm |
| Application width | 210mm |
| Grip width | 15+15mm |
| material | Stainless steel 304 |
yongchaoMT D10-YC020-L240mm Coating Metering rod Packing list
Metering rod × 1, Transparent Encasement tube × 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
