Yongchao D12-YC030-L240mm Experimental Coating Metering rod Colorimetric Spreader coating bar
Coating rod diameter 10mm, Total length 240mm, effective application width 210mm, Spreader coating bar can be prepared with a wet film thickness of 30μm. Wallpaper printing Proofing Colorimetric coating bar.
yongchaoMT-
Japan OSP OSP-330T L60 Applicator rod wire-wound drawdown Bar WFT 330μm Length 60mm
$ 115.00 -
RDS 100G #3/8 "gap wire-wound Applicator rod wet-film 228.6μm
$ 172.00 -
UK RK KHC.11.5 inks coating bar wet film thickness 50μm gold brown rubber head No. 5 rod
$ 167.00 -
UK RK KHC.10.4 coating rod wet film thickness 40μm black rubber head No. 4 rod
$ 152.00 -
RDS 21 #1/4 "wire-wound Spreader rod film thickness 48.0μm Wire diameter 0.53mm
$ 155.00
Traditional wire rods are coated by winding thin steel wires on the surface of steel rods. The thin steel wires on the surface are not only easy to loosen and break, and are not easy to clean, but also cannot be coated with ultra-thin films. Yongchao YC series wire rods are used The precision mold uses cold extrusion processing technology to process concave and convex wavy curves on the surface of the steel rod, which has the same coating effect as the traditional wire rod. However, since there is no thin steel wire wrapped around the surface, there is absolutely no worry of the steel wire becoming loose and broken. Moreover, the surface curve is lubricated and smooth, which is easy to clean. The surface of the wire rod is also plated with hard chromium with a hardness of up to 1300HV, which can greatly improve its wear resistance and service life.




Optional
![]() | |
![]() | ![]() |
Note: Click on the accessory picture to view Details.

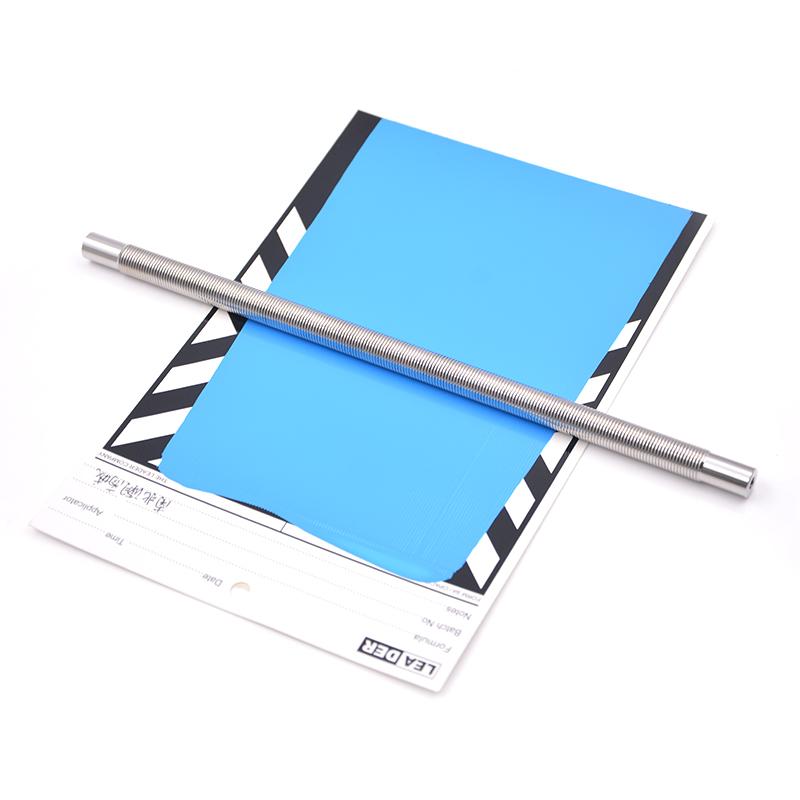

yongchaoMT D10-YC030-L240mm Coating Metering rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 30pm |
| diameter | 10mm |
| Total length | 240mm |
| Application width | 210mm |
| Grip width | 15+15mm |
| material | Stainless steel 304 |
yongchaoMT D10-YC030-L240mm Coating Metering rod Packing list
Metering rod × 1, Transparent Encasement tube × 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
