Yongchao D12-YC120-L240mm grooved coating rod formed Moulding rod 120μm
The coating rod diameter is 10mm, the Total length is 240mm, the effective application width is 210mm, and the wet film thickness of 120μm can be prepared.
yongchaoMT-
Japan OSP-35/250 steel wire spiral bar WFT 35μm length 250mm
$ 153.00 -
Japan OSP-09/250 coating bar Coating Applicator WFT 9μm length 250mm
$ 153.00 -
Pushen XB-II 150μm wide-wound coating bar length 400mm
$ 110.00 -
RDS 42 #3/8 "Transfer Printing Proofing rod 96.0μm inks Applicator rod
$ 162.00 -
Japan OSP-04/400 printing coating bar WFT 4μm length 400mm
$ 173.00
Traditional wire rods are coated by winding thin steel wires on the surface of steel rods. The thin steel wires on the surface are not only easy to loosen and break, and are not easy to clean, but also cannot be coated with ultra-thin films. Yongchao YC series wire rods are used The precision mold uses cold extrusion processing technology to process concave and convex wavy curves on the surface of the steel rod, which has the same coating effect as the traditional wire rod. However, since there is no thin steel wire wrapped around the surface, there is absolutely no worry of the steel wire becoming loose and broken. Moreover, the surface curve is lubricated and smooth, which is easy to clean. The surface of the wire rod is also plated with hard chromium with a hardness of up to 1300HV, which can greatly improve its wear resistance and service life.




Optional
![]() | |
![]() | ![]() |
Note: Click on the accessory picture to view Details.

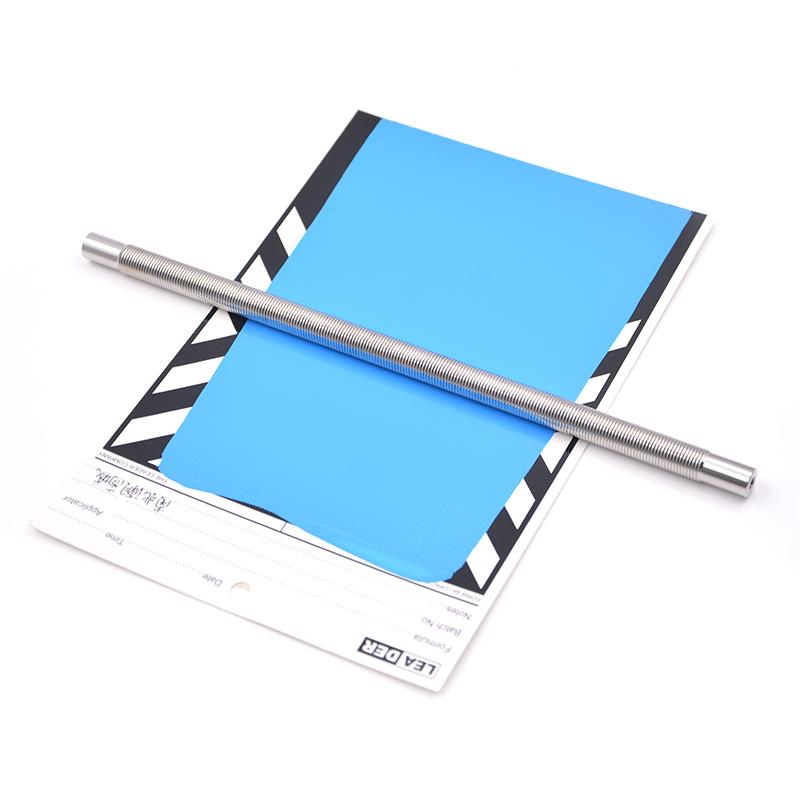

yongchaoMT D10-YC120-L240mm Coating Metering rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 120µm |
| diameter | 10mm |
| Total length | 240mm |
| Application width | 210mm |
| Grip width | 15+15mm |
| material | Stainless steel 304 |
yongchaoMT D10-YC120-L240mm Coating Metering rod Packing list
Metering rod × 1, Transparent Encasement tube × 1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
