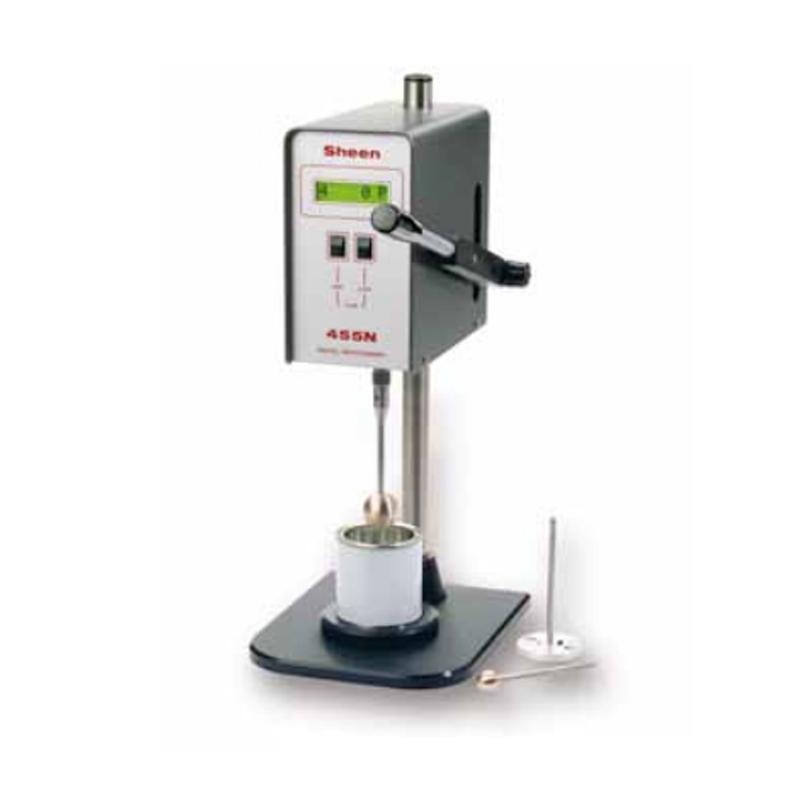

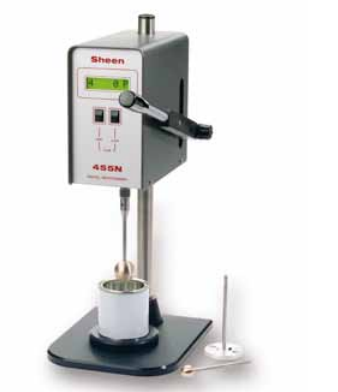

The viscometer is easy to use and allows the operator to continuously monitor the viscosity of the test sampleSolvents or diluents are added at the same time. Samples taken from large production batches can be in oneRapid measurements are made in a 250 ml jar and, if necessary, the relevant dilution rate can be measuredMake immediate adjustments.
The Rotothinner's rugged construction allows it to be used in both production environments and laboratoriesOperate. The choice of 3 models with ball or disc rotor includes a wide varietyScope of the test.
peculiarity
Continuous readings in poise
The rotor can be easily loaded into the quick-release chuck for easy cleaning
Multi-point calibration is user-friendly using optional keys
Stores 9 readings, RS232 to the printer's serial interface
Standard package: viscometer, 1 rotor, 250 ml jar, printer cable.

SHEEN ref.445N/340 Rotothinner ViscoMeterSpecifications
| LIST | VALUE |
|---|---|
| Display mode | digital explicit |
| Measurement range | 0~1500mPa·s |
| Rotor speed | 562rpm |
| Reproducibility | ±1%F.S |
| Measurement Accuracy | ±2%F.S |
| Power supply Voltage | 90~240V AC 50/60Hz |
| Resolution | 0.1p |
| operating temperature | 15~35℃ |
SHEEN ref.445N/340 Rotothinner ViscoMeter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
