3NH HG60 single angle Glossmeter 60 degree single angle Glossiness detection instrument

HG60 Introduction

3nh/3nh Single-angle Gloss Meter HG60 is a single-angle gloss meter with a projection angle of 60 degrees. It is a portable gloss meter with a white plastic shell. The appearance design is beautiful and ergonomic. HG60 single-angle gloss meter is equipped with high-quality management software, which can display 5 sets of gloss measurement data at the same time, and provides basic measurement modes to meet the basic gloss test. HG60 single-angle gloss meter has the characteristics of stable performance, convenient use and accurate measurement.

HG60 product application

HG60 single-angle gloss meter can measure gloss in coatings, paint inks, furniture, paper printing, ceramics, plastic electronics, electroplating, hardware, marble and other industries .

HG60 product features

1. HG60 single-angle gloss meter has a large color screen of 3.5 inches, high-resolution (480*320) full-view display, and can display 5 sets of measurement data at the same time.

2. The appearance design is simple and elegant, and the structural design of load ergonomics.

3. Flexible selection of auto-calibration at startup, easy and convenient operation.

4. HG60single-angle gloss meterhas a built-in rechargeable battery.

5. Comply with the standards ISO2813, GB/T9754, ASTMD523, ASTMD2457.

6. High-quality hardware configuration, incorporating a number of innovative technologies.

7. HG60 single-angle gloss meter has an automatic shutdown function to save power consumption.

Communication method between HG60 and PC

1. Turn on the HG60 single-angle gloss meter first, and then plug in the USB cable to connect to the PC, so that the HG60 single-angle gloss meter can be charged or automatically connected to the host computer software.

2. Measure and control the gloss meter through the host computer software. (Note: The premise is that the host computer software has been correctly installed on the PC computer, and the host computer software and installation instructions are in the attached CD).

3. Printing, the single-angle gloss meter is connected to a dedicated micro-printer, and the measurement data can be automatically printed during measurement.

Operation function of HG60 upper computer software

(1) Query status; ( basic information of HG60 single-angle gloss meter , such as: model, SN code, etc.)

(2) Perform calibration;

(3) Modify the calibration value; (operate with caution, preferably by the manufacturer or a qualified metrology institute)

(4) measurement;

(5) Data management; (view records, delete records, export records, print reports)

(6) Set time and date;

(7) Set the language;

(8) Set the measurement to automatically save the record or not.

HG60 product outline structure diagram

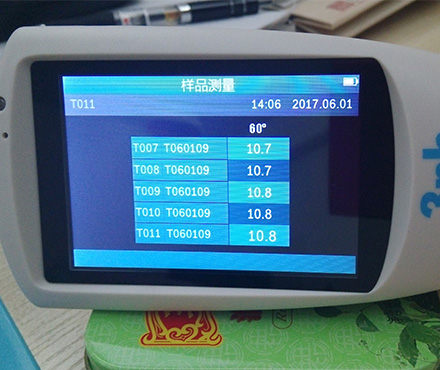

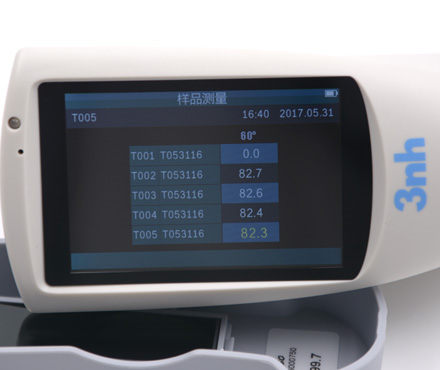

HG60 product real shot

host x1, charger x1, USB data cable x1, dust-free cloth x1, manual x1, warranty card x1, CD x1, correction standard box x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
