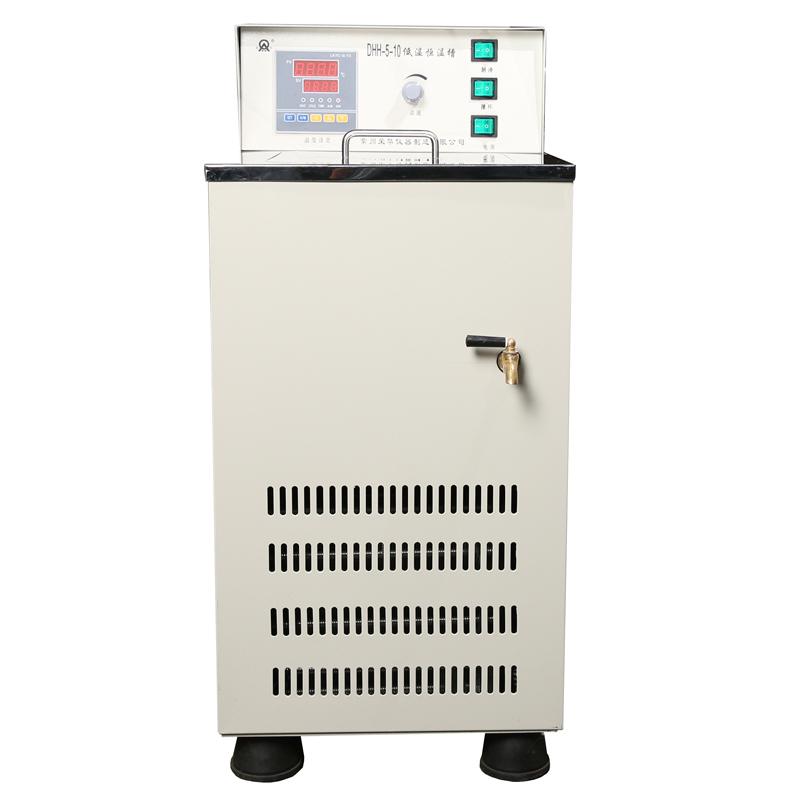

RONGHUA DHH-5-10 Low Temperature Thermostat 10L
Temperature range -5~ 100 ℃, Temperature fluctuation +/- 1 ℃, working tank volume 10L, slot opening size 250 * 200mm, working bath depth 200mm, pump flow 0~6L
RONGHUA
DHH-5-10
DHH-30-10
DHH-20-10
DHH-10-10
-
NELE NLSC-50A Super Constant Temperature Bath (Water/Oil), Circulating Bath (Water/Oil) 50L/200 ℃
$ 1174.00 -
QIWEI DHC-05-A Thermostatic Bath 0 ℃/0.1 ℃
$ 513.00 -
NELE DC-1020-II Temperature Cycling Unit 20L/-10 ℃
$ 1871.00 -
SDPTOP DC-3020 Low Temperature Thermostat -30~95 ℃/20L
$ 2499.00 -
Shangtian Jingyi DC-1020 Low Temperature Thermostatic Bath Liquid Thermostatic Water Bath -10 ℃/20L
$ 1725.00
Ronghua DHH-5-10 low temperature constant temperature bath, the temperature range is -5°C~100°C, the fluctuation is ±1°C, it can provide (10L) 250*200*200 working volume, 250*200mm.
DHH series low temperature constant temperature bath
| model | temperature range | temperature fluctuation | Working volume (mm) | Opening size(mm) | Dimensions (mm) | Circulation pump flow | Refrigerant medium | ||
| DHH-5-5 | -5℃~100℃ | ±1℃ | (5L) 180*140*200 | 180*140 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-5-10 | -5℃~100℃ | ±1℃ | (10L) 250*200*200 | 250*200 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-5-15 | -5℃~100℃ | ±1℃ | (15L) 300*250*200 | 300*250 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-5-20 | -5℃~100℃ | ±1℃ | (20L) 300*250*260 | 300*250 | 510*410*760 | 0~6L adjustable | Alcohol | ||
| DHH-10-5 | -10℃~100℃ | ±1℃ | (5L) 180*140*200 | 180*140 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-10-10 | -10℃~100℃ | ±1℃ | (10L) 250*200*200 | 250*200 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-10-15 | -10℃~100℃ | ±1℃ | (15L) 300*250*200 | 300*250 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-10-20 | -10℃~100℃ | ±1℃ | (20L) 300*250*260 | 300*250 | 510*410*760 | 0~6L adjustable | Alcohol | ||
| DHH-20-5 | -20℃~100℃ | ±1℃ | (5L) 180*140*200 | 180*140 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-20-10 | -20℃~100℃ | ±1℃ | (10L) 250*200*200 | 250*200 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-20-15 | -20℃~100℃ | ±1℃ | (15L) 300*250*200 | 300*250 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-20-20 | -20℃~100℃ | ±1℃ | (20L)300*250*260 | 300*250 | 510*410*760 | 0~6L adjustable | Alcohol | ||
| DHH-30-5 | -30℃~100℃ | ±1℃ | (5L)180*140*200 | 180*140 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-30-10 | -30℃~100℃ | ±1℃ | (10L)250*200*200 | 250*200 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-30-15 | -30℃~100℃ | ±1℃ | (15L)300*250*200 | 300*250 | 470*350*760 | 0~6L adjustable | Alcohol | ||
| DHH-30-20 | -30℃~100℃ | ±1℃ | (20L) 300*250*260 | 300*250 | 510*410*760 | 0~6L adjustable | Alcohol | ||
RONGHUA DHH-5-10 ThermostatSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | -5~100℃ |
| Temperature fluctuation | ±1℃ |
| Tank Volume | 10L |
| Tank opening Dimensions | 250*200mm |
| Tank Depth | 200mm |
| Pump flow | 0~6L |
| refrigerant | Refrigeration medium |
| Dimensions | 470*350*760mm |
| Pump adjustability | Adjustable |
RONGHUA DHH-5-10 Thermostat Packing list
host X1, certificate X1, manual X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
