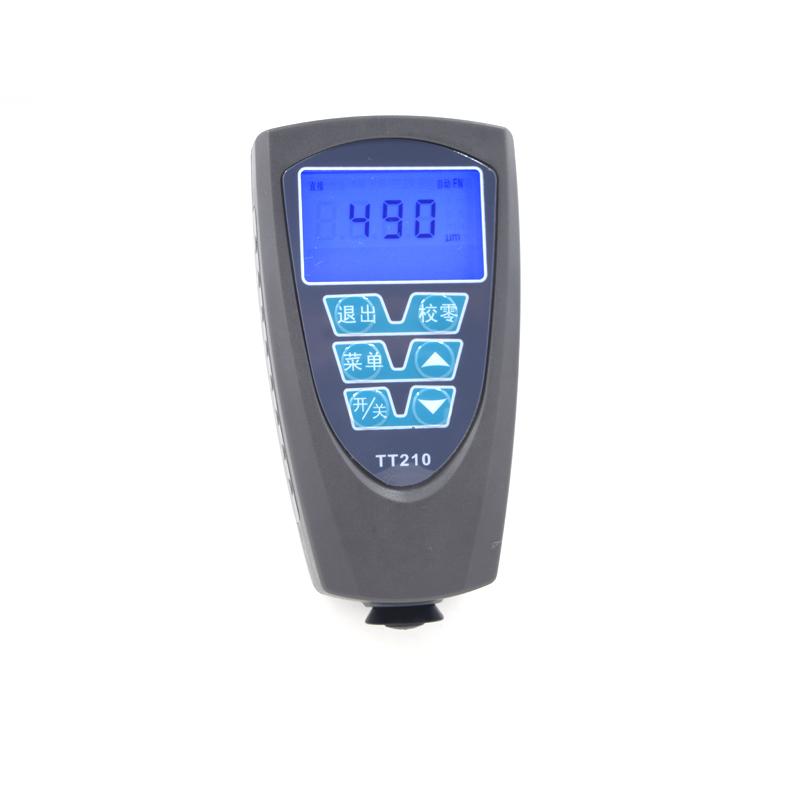

TIMES TT210 coated platings Thickness Gauge, thickness measurement: 1~ 1250μm dual function

Introduction

TT210 cladding Thickness Gauge is a magnetic and eddy current integrated portable cladding Thickness Gauge, which adopts two methods of magnetic and eddy current thickness measurement, which can non-destructively measure the thickness of the non-magnetic covering layer (such as zinc, aluminum, chromium, copper, rubber, paint, etc.) on the magnetic metal matrix (such as steel, iron, alloy and hard magnetic steel, etc.), and can also measure the thickness of the non-conductive covering layer (such as rubber, paint, plastic, anodized film, etc.) on the non-magnetic metal matrix (such as copper, aluminum, zinc, tin, etc.).

Features

Two thickness measurement methods, magnetic and eddy current, can measure the thickness of the non-magnetic covering layer on the magnetic metal matrix and the thickness of the non-conductive covering layer on the non-magnetic metal matrix.

There are two measurement methods: continuous measurement method (CONTINUE) and single measurement method (SINGLE);

It has two Operating Modes: direct mode (DIRECT) and group mode (Appl);

There are five statistics: mean (MEAN), large value (MAX), small value (MIN), number of tests (NO.), standard deviation (S.DEV);

The instrument can be calibrated in two ways, and the systematic error of the probe can be corrected using the basic calibration method;

With storage function: 500 measured values can be stored;

With deletion function: delete a single suspicious data in the measurement, and also delete all data in the storage area in order to make a new measurement;

Limit can be set: the measured value outside the limit can be automatically alarmed; A histogram can be used to analyze a batch of measurements;

With printing function: it can print measured values, statistical values, limits, histograms;

It has the function of communicating with the PC: the measured value and statistical value can be transmitted to the PC for further processing of the data;

It has the function of power supply under-Voltage indication;

There is a beep prompt during the operation;

It has an error prompt function, which can be prompted by screen display or buzzer;

There are two shutdown modes: manual shutdown mode and automatic shutdown mode.

Product Applications

The cladding Thickness Gauge adopts two methods of magnetic and eddy current thickness measurement, which can non-destructively measure the thickness of the non-magnetic covering layer (such as zinc, aluminum, chromium, copper, rubber, paint, etc.) on the magnetic metal matrix (such as steel, iron, alloy and hard magnetic steel, etc.) and the thickness of the non-conductive covering layer (such as rubber, paint, plastic, anodized film, etc.) on the non-magnetic metal matrix (such as copper, aluminum, zinc, tin, etc.). It can measure the thickness of coatings and plating coatings quickly, without damage, and with precision. It can be used both in the laboratory and in the engineering field. TT210 cladding Thickness Gauge can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is a professional instrument for material protection.

Display diagram

Host X1, standard film set X1, substrate X2, lithium battery X1, instrument bag X1, product Encasement box X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
