3NH NHG268 Glossiness Meter smart touch screen Glossometer

Introduction

3nh/3nh three-angle gloss meter NHG268 is a gloss meter independently developed by 3nh with independent intellectual property rights. It is an intelligent precision gloss meter. The instrument has three measurement angles of 20° 60° 85°. NHG268 three-angle gloss meter is a gloss meter with full touch operation and large screen display. It is equipped with high-end quality management software. The instrument is powered by a lithium battery and has a long service life.

In addition, the NHG268 three-angle gloss meter has multiple measurement modes of basic measurement, statistical measurement, continuous measurement, and quality control measurement (only on the host computer), which can meet various usage situations; the gloss value can be manually input, and the operation is simple and convenient.

Applications

NHG268 three-angle gloss meter is suitable for gloss meter measurement and gloss data transmission in paint ink, coating, electroplating, plastic electronics, hardware and other industries.

feature of product

1. NHG268 three-angle gloss meter has three measurement angles of 20°, 60°, and 85° , which can be measured at the same time;

2. 3.5-inch ultra-large capacitive touch screen, high-resolution (480*320) full-view display, full-featured touch operation;

3. PC-side quality management software has powerful function expansion;

4. NHG268 three-angle gloss meter can manually input gloss data, which is convenient for customers to operate;

5. High hardware configuration, incorporating a number of innovative technologies;

6. NHG268 three-angle gloss meter complies with standards ISO 2813, ASTM D 523, GB/T 9754;

7. Good combination of aesthetic curved surface design and ergonomic structure;

8. Three Operating Modes and multiple function settings can meet different needs of customers;

9. Large-capacity storage space, which can store 1000 basic records, 5000 statistical records and 5000 continuous records.

Product outline structure diagram

Color display: display measurement data; NHG268 three-angle gloss meter operation navigation.

Switch/measurement button: long press for 3 seconds to power on or off; short press for measurement.

Indicator light: The green light is on when the battery is turned on, and the light is off when the power is completed; the red light is on for warning when the battery is insufficient; the red light is always on when charging, and the green light is always on when fully charged.

RS-232/USB interface: This interface is a common interface, and the instrument automatically judges the connection. The USB interface is used to communicate , and the RS-232 interface is used to connect to the printer; the USB cable is connected to the power adapter and the PC computer, and the NHG268 three-angle gloss meter can be plugged into the NHG268 three-angle gloss meter to charge the NHG268 three-angle gloss meter (connected to the external power adapter) The specification is 5V2A).

Protective cover (calibration plate): the protective cover of the measuring caliber; the built-in calibration plate is used for the calibration of the NHG268 three-angle gloss meter .

Pictures

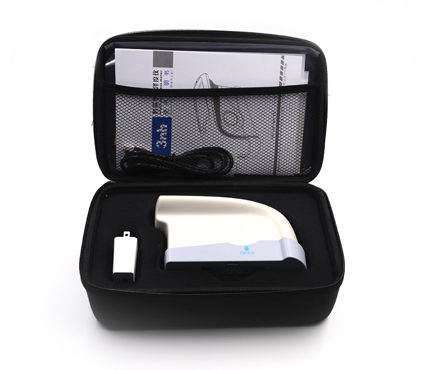

host x1, charger x1, USB data cable x1, dust-free cloth x1, manual x1, warranty card x1, CD x1, correction standard box x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
