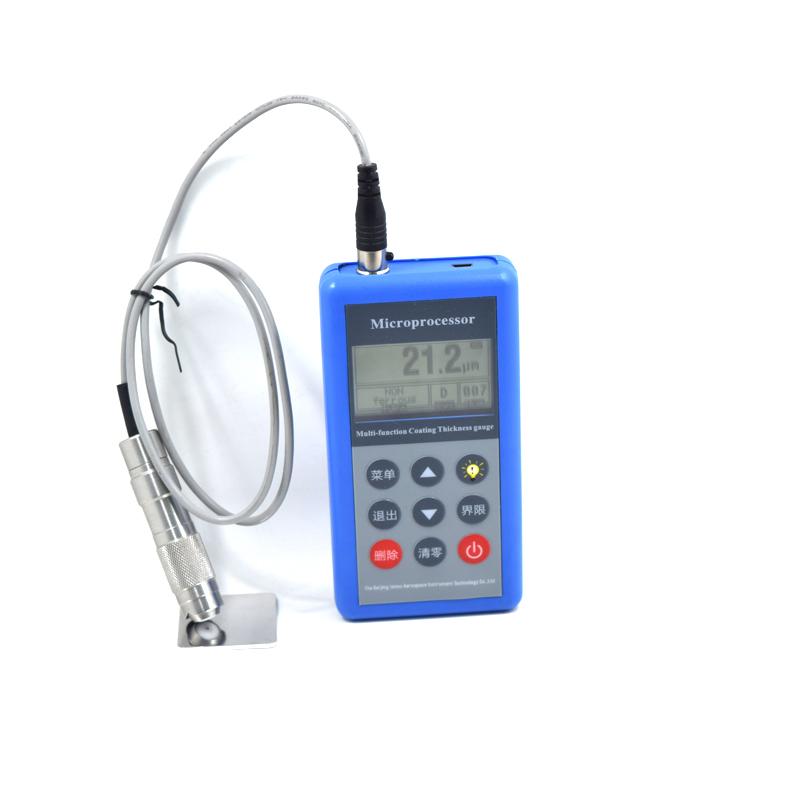

TIMES TT230 Coated platings Thickness Gauge

TIMES TT230 eddy current Thickness Gauge Measurement range: 0~1250μm

TIMES TT230 split eddy current Thickness Gauge has two continuous/single Measurement modes, in line with GB/T4957-1985 standard, TT230 split eddy current Thickness Gauge can measure 0~40 microns of copper chrome plating, is an integrated Thickness Gauge.

Brand

SKU: NB013252

TIMES

Model

TT230

Get Quote

TIMES

Information

Datasheet Catalog

What else did others buy

Defelsko PRB200B Ultrasonic Thickness Gauge Probe PosiTector200B

$ 2574.00
Defelsko Positector 6000 FJS3 fireproof coating Thickness Gauge 25mm

$ 2053.00
German EPK MikroTest G6 McCourt coated platings Thickness Gauge, thickness measurement: 0~100μm

$ 872.00
Defelsko PosiTector 6000 FS3 Coating Thickness Gauge Iron metal substrate (steel, iron, etc.) Split probe type

$ 1497.00
Leeb221 Coating Thickness Gauge to detect the thickness of non-conductive coated Films on non-metallic substrates

Login

Genuinegoods

TIMES TT230 Coated platings Thickness GaugeOverview
Specifications
Comments
FAQs

TT230

Coated platings Thickness Gauge

Introduction

TT230 Eddy Current Thickness Gauge is an ultra-small gauge that can quickly, damageless, and accurately measure the thickness of non-conductive overlays on non-magnetic metal substrates.

The TT230 Coating Thickness Gauge meets the following standards:

GB/T 4957-1985 Eddy current method

JJG 818-93

JB/T8393-1996 Magnetic and eddy current cladding Thickness Gauge

Features

The eddy current thickness measurement method enables non-destructive measurement of the thickness of non-conductive overlays on non-magnetic metal substrates (e.g. enamel, rubber, paint on copper, aluminum, zinc, tin, etc.)
Zero and two-point calibration can be performed, and the systematic error of the probe can be corrected using the basic calibration method
There are two measurement methods: continuous measurement method (CONTINUE) and single measurement method (SINGLE)
There are two ways of working: direct (DIRECT) and grouped (Appl)
Deletion function: Delete a single suspicious data that appears in the measurement, or delete all data in the storage area
THERE ARE FIVE STATISTICS: MEAN, MAXIMUM (MAX), MINIMUM (MIN), NUMBER OF TESTS (NO.), AND STANDARD DEVIATION
It has the function of converting rice and imperial system
There is a beep prompt during operation
It has an error prompt function
It has an automatic shutdown function

Product Applications

TT230 eddy current Thickness GaugeIt can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields; The small size of the instrument and the integration of the probe and the instrument make it especially suitable for on-site measurements.

Display diagram

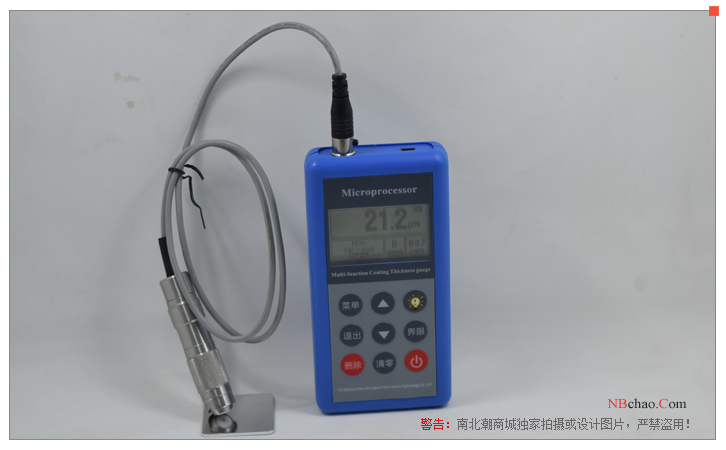

Times Aerospace TT230 Split Eddy Current Thickness Gauge Display

TIMES TT230 Coated platings Thickness GaugeSpecifications

LIST	VALUE
Measurement principle	eddy Current
Measurement range	0~1250μm
margin of error	±3%
resolution	0.1μm
Minimum measurement surface	Φ7mm
Minimum radius of curvature	Convex 1.5mm Concave 9mm
thinnest substrate	0.5
probe	N
statistical function	Single measurement, continuous measurement
Data storage	15 Measured values
Power Supply	lithium battery
Operating temperature	0~40℃
Relative Humidity	20~90%RH
Operating Mode	Direct mode (DIRECT) and group mode (Appl)
Weight	150g
shutdown mode	automatic

TIMES TT230 Coated platings Thickness Gauge Packing list

host X1, a set of standard pieces X1, aluminum matrix X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
