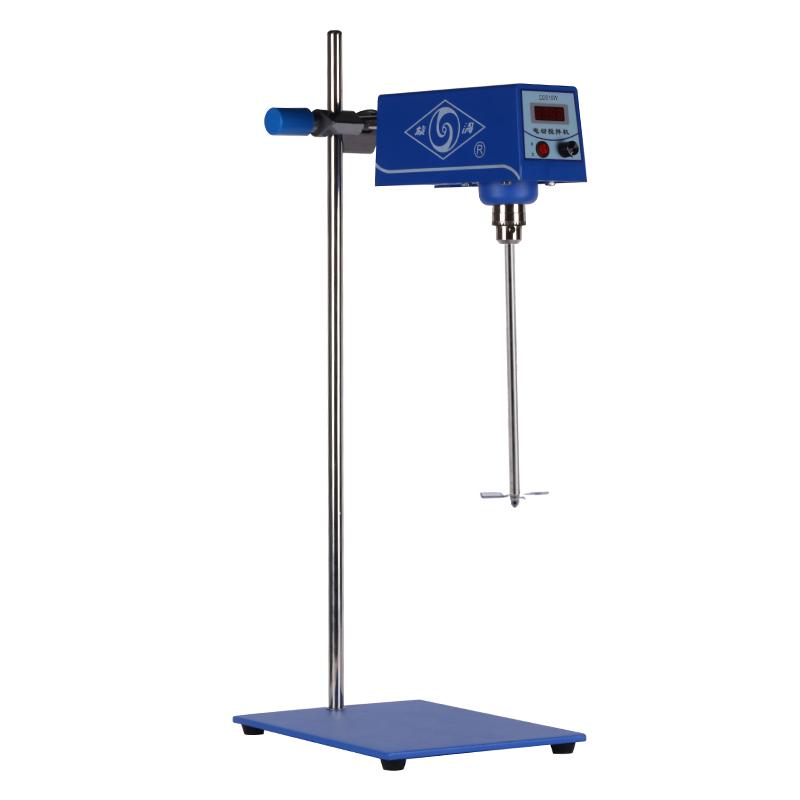

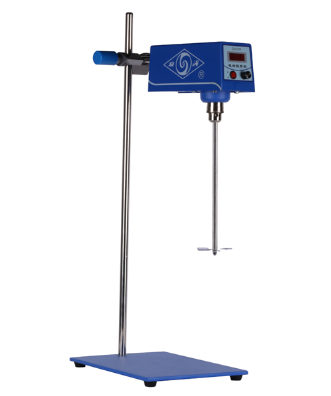

SILE D2010W Overhead Stirrer Stirrer 20L/1300rpm
D2010W Overhead Stirrer is an experimental vertical Stirrer from SILE, the Stir volume is 20L, the speed is 1300rpm, the Max. Torque of D2010W is 0.6N · M, the motor power is 100W, and the clamping range of the rotary collet is ≤ Φ13mm.
SILE INTRUMENT
D2010W
-
Muxuan MXF-E1500F Low Speed Power LABOratory and Pilot Electric Stirrer 1.5KW/Full Explosion-proof
$ 3058.00 -
RWD100 Floor Stirrer dissolved Impeller Pulp 120mm Rod length 350mm
$ 696.00 -
LANYU T200 Pro + Numerical control Stirrer 100L/30~2000rpm
$ 2789.00 -
RWD100 Blade Stir, Round 3-Hole Fan Impeller Slurry 70mm Rod length 350mm
$ 668.00 -
HUXI JB90-SH Electric Strength Stirrer Centrifugal Impeller Pulp 90mm Rod Length 300mm
$ 391.00
overview
The stirring rod hole of the electric stirrer is opened up and down, which is convenient to use.
Driven by a DC three-phase brushless motor, it has no spark, large force distance, high efficiency, good speed regulation, and the speed is displayed on the LCD.
Instructions
1. Turning the stirring head will be dangerous, pay attention to body, clothing and hair. At the same time prevent the stirring liquid from splashing.
2. As soon as the instrument is plugged in, turn on the power switch, and turn the knob to adjust the speed.
SILE INTRUMENT D2010W Powerbasic stirrerSpecifications
| LIST | VALUE |
|---|---|
| Capacity | 20L |
| Speed range | 50~1300rpm |
| Stick size | Ф16×720mm |
| Dimensions | 320*220*770mm |
| Total Weight | 11kg |
| Power | 220V±15% |
| Max Torque | 0.6N·M |
| Motor power | 100W |
| Rotary collet clamping range | ≤ F13mm |
| Maximum Viscosity | 20000mPa·s |
| Speed display | LED |
SILE INTRUMENT D2010W Powerbasic stirrer Packing list
Stir head host X1, Impeller X1 (pcs), baseplate X1, cross right-angle chuck X1, main benchmark (Φ16X720mm) X1, warranty card X1, certificate X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
