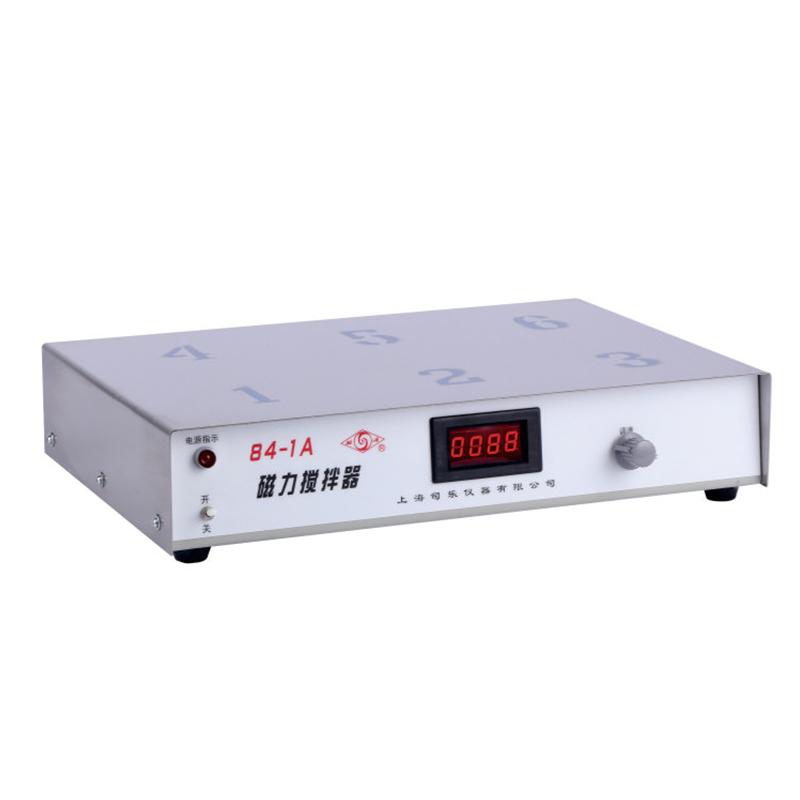

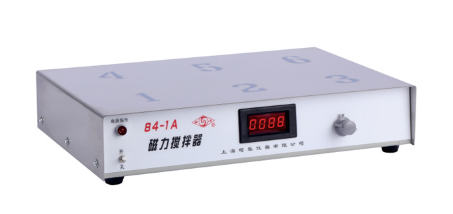

SILE 84-1A6 digital display magneticstirrer 1000ml × 6 station LED digital display
SILE 84-1A6 digital display magneticstirrer Max. stirring Capacity 1000mL * 6, stirring speed 50~1700rpm, external size 420 * 290 * 90mm, power supply AC220V ± 10%, continuous Operating Mode, motor torque 40mN · M, display mode LED.
SILE INTRUMENT
84-1A6 digital display
overview
The magnetic stirrer has six stirring stations, and the six stirring stations can be used at the same time, and the speed is displayed by LED digital display.
Instructions
1. Put the magnetic stirrer flat, place the container containing the solution on the stirring station of the instrument, and put a suitable stirring bar in each beaker.
2. Connect the power supply, turn on the power switch, the indicator light is on, and adjust the stirring knob clockwise. When adjusting the speed, it should be gradually accelerated from slow to fast. If the acceleration is too fast, the stirring bar will easily escape.
3. Note: The power supply needs to be reliably grounded; the liquid in the container should not be overfilled, so as not to overflow when stirring.
SILE INTRUMENT 84-1A6 digital display MagneticstirrerSpecifications
| LIST | VALUE |
|---|---|
| Max. Capacity of stirring | 1000mL*6 |
| Stirring speed | 50~1700rpm |
| Dimensions | 420*290*90mm |
| Total Weight | 12kg |
| Power | AC220V±10% |
| Operating Mode | continuous |
| Motor torque | 40mN·M |
| Display | LED |
SILE INTRUMENT 84-1A6 digital display Magneticstirrer Packing list
Host X1, Stir 3 X6 (packs), warranty card X1, certificate X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
