Deguang Electronics G-type Leeb Hardness Tester for measurement of large or heavy specimens and castings and forgings with coarse surfaces

Deguang Electronics G-type Leeb Hardness Tester probe is suitable for the measurement of large or heavy specimens and castings and forgings with coarse surfaces. It is an optional impact device for Deguang Electronics Leeb Hardness Tester.

Brand

SKU: NB001347

DGC

Model

G type

Price

$ 1097.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

DGC shopSE

Information

Datasheet RFQ Contract

What else did others buy

IPRE C Impact device measurement of small thin specimens and surface hardening layer

$ 161.00
Linshang LS251D Portable Leeb Hardness Tester for metal materials such as iron/copper/steel

$ 223.00
LS252DL gear Leeb Hardness Tester DL type impact device

$ 413.00
LINSHANG LS253C Leeb Hardness Tester with C probe

$ 459.00
DUBAN DB22-HM455 Leeb Hardness Tester

$ 471.00

Genuinegoods

DGC G type Probe (Sclerometer)Overview
Specifications
Comments
FAQs

G type

Probe (Sclerometer)

G type introduction

Deguang Electronic G-type Leeb Hardness Tester probe is suitable for measuring large or heavy test pieces and castings and forgings with rough surface. It is an optional impact device for Deguang Electronic Leeb Hardness Tester.

Probe Measurement Applications

D-type probe : measuring common parts

C-type probe : measure small or thin specimens and surface hardened layers

DC type probe : measure inner surface of inner hole or narrow space

D+15 type probe : measure groove or concave surface

DL type probe : measure slender and narrow groove body

G-type probe : measure large or heavy test pieces and castings and forgings with rough surface

Pictures

Appearance of D-type/DC-type/DL-type Probe of Deguang Electronic Leeb Hardness Tester

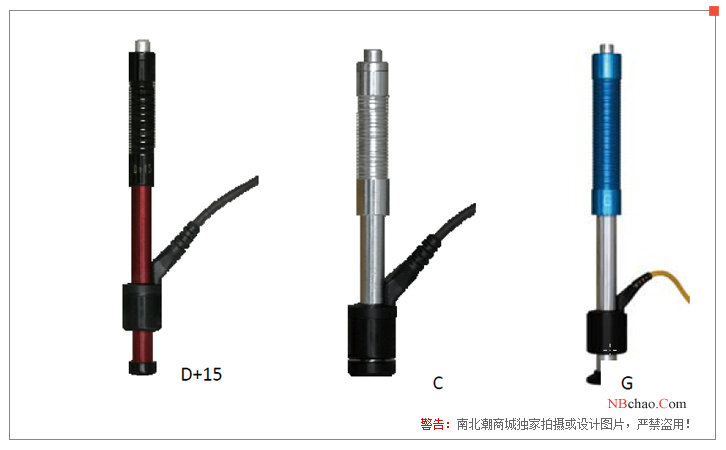

Deguang Electronic Leeb Hardness Tester Probe D+15/C/G Appearance

DGC G type Probe (Sclerometer)Specifications

LIST	VALUE
Impact energy	90 (Num)
Impact device Mass	20g
Ball Hardness	1600(HV)
Ball head diameter	5mm
Ball head material	Tungsen carbide
Impact device diameter	30mm
Impact device length	254mm
Impact device Mass	250g
Maximum Specimen Hardness	650HV
Roughness class standard	N9 (ISO)
Maximum Surface Roughness of Specimen	30(UM)
Specimen Surface Roughness	7UM
Minimum specimen Weight	15 kg
Requires a stable minimum support Weight	5(kg)
Needs to be coupling time Minimum Film thickness	0.5(kg)
Minimum test Film thickness	10mm
Minimum depth of hardened layer	-mm
Indentation diameter	1.03mm
Indentation depth	53(un)
Indentation diameter	0.90mm
Indentation depth	41(un)
Indentation diameter	-mm

DGC G type Probe (Sclerometer) Packing list

Sclerometer probe x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
