product description

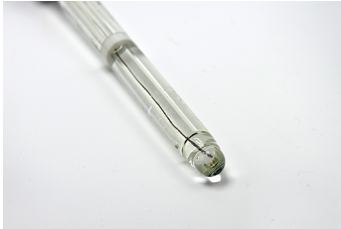

CT-1002 pH electrode adopts international professional solid dielectric and large-area PTFE liquid interface, which is not easy to block and easy to maintain.
The long-distance reference diffusion path greatly prolongs the service life of the electrode in harsh environments.

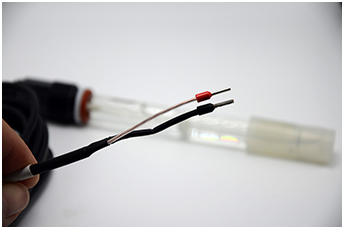

The PH electrode adopts high-quality low-noise cables, which can make the output length of the model more than 40 meters without interference.
High measurement accuracy, fast response and good repeatability.
Widely used in online pH detection in pharmaceutical, food, chemical, environmental protection, electroplating and other industries.
product features
Adopt PPS/PC shell, upper and lower 3/4NPT pipe thread, easy to install.
There is no need to replenish the dielectric, and the maintenance is small.
Proper operation has a long service life.
The electrodes can be used interchangeably with similar foreign electrodes.
plan

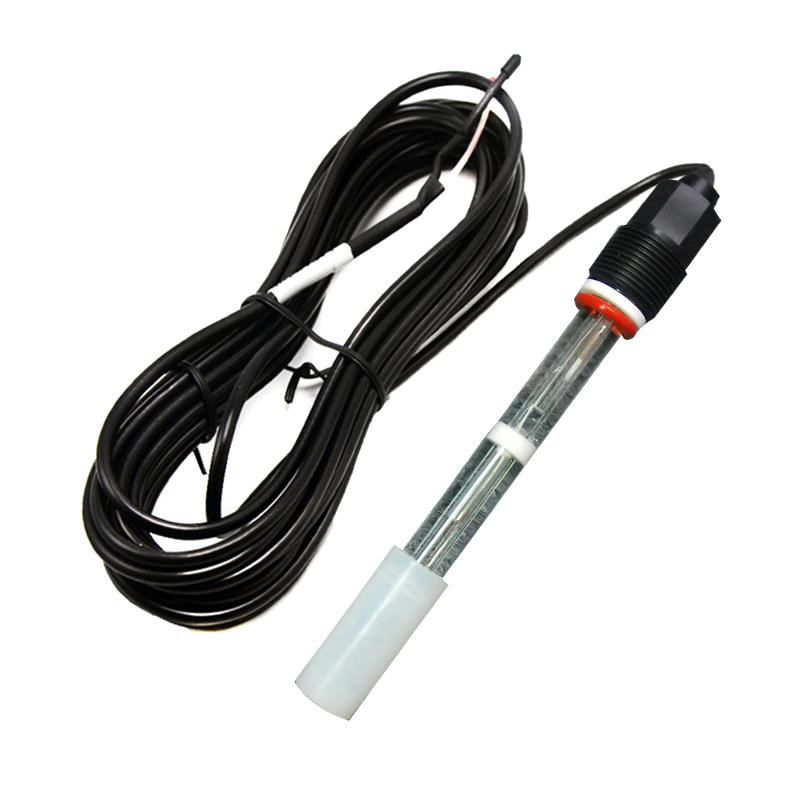

kedida CT-1002 PH electrodeSpecifications
| LIST | VALUE |
|---|---|
| PH range | 0~14pH |
| Dimensions | 165*12mm |
| Weight | 0.5kg |
| Temperature Measurement range | 0~100℃ |
| Connection form | Cable (Low Noise Shielding) |
| Zero potential | 7pH±0.5pH |
| Pressure resistance (MPa) | 0.6 |
| Internal resistance MΩ (25℃) | 250 |
| Theoretical percentage slope% | >95 |
| Connector | BNC head, Y piece, insert |
| Outline Connectivity | 3/4 male thread |
| Cable length | 5m |
kedida CT-1002 PH electrode Packing list
Electrode X1, certificate of conformity X1, warranty card X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
